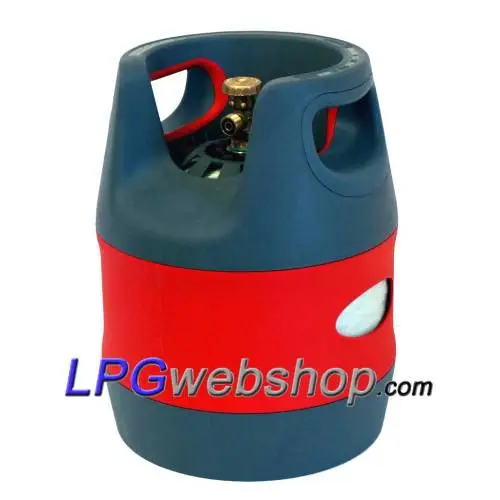

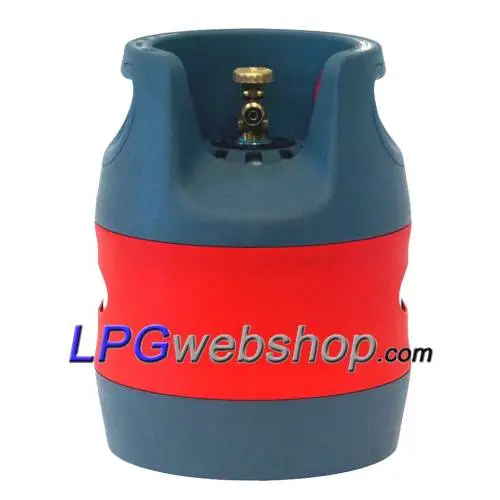

12.7L Lightweight composite LPG gas bottle with OPD Refillable up to 80%


Lightweight gas bottle refillable with LPG until a maximum of 80% filling (OPD) and equipped with a pressure relief valve and therefore safe. The composite material ensures that the bottle is robust and corrosion-free. The semi translucent gas bottle shows you how much gas is left.

Type: OPD 80% Fill stop (OPD = Overfill Protection Device)
Approval number: CZ-08.488.297 #04 (2010/35/EU) - 10 years TÜV approval
Construction Standard: ISO 11119-3:2002
Empty weight: 4,0 kg
Tank Capacity: Gross 12,7 Litre (80%=10,2 Litre)
Dimensions: Ø310 mm x Height: 380 mm
Safety features: 80% Fill plug, Pressure relief valve 26-27 bar, Antistatic

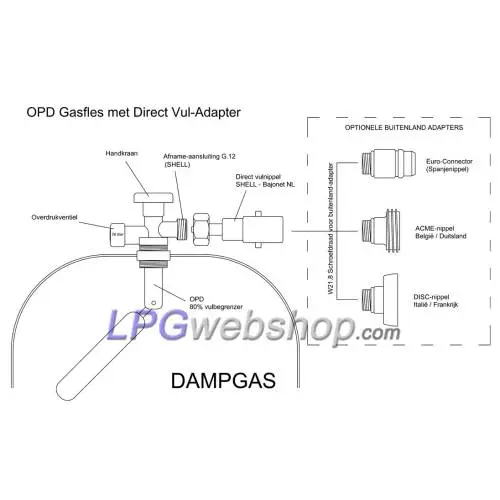

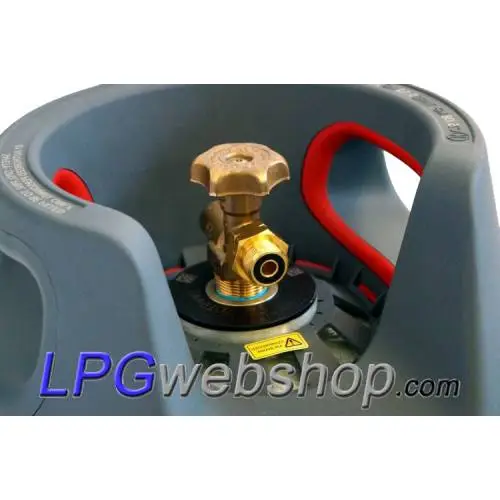

Gas bottle Appendages: OPD: 80%-fill stop Hand valve Pressure relief valve
Input Connector: SHELL Male G.12 (W21.8 x 1/14 lh)
Output connection: = input
Outlet pressure: 3 - 27 bar (depending on temperature)
Pressure class: Up to 30 bar
Material: Plastic (Composite)
Position: Standing

€174.92 tax incl.
Save 15%

Foreign companies with a valid VAT number shop VAT-free here! READ HOW.

  Safe Webshop

Webshop Trustmark & Secured by SSL. Your data and orders are safe here.

  Delivery policy

Safe and Secure Shipping with DPD or DHL

  Refund policy

Política de reembolso de 14 días y derecho de devolución

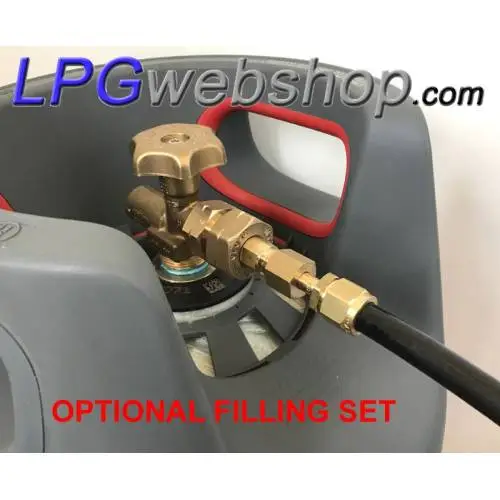

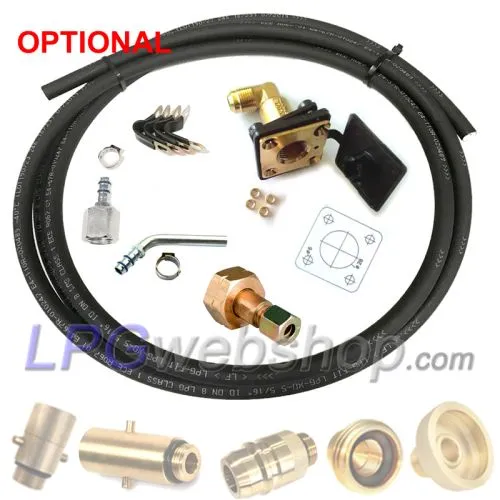

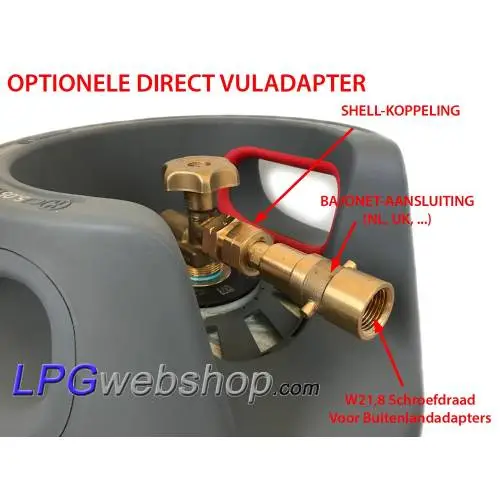

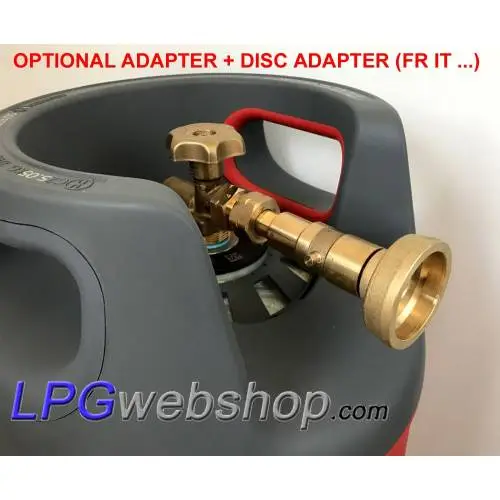

Lightweight composite LPG gas bottle of 12.7 Litre with OPD valve filling stop refillable up to 80% - For use in Camper BBQ motorhome cooking LPG Caravan Heating. Optional an external filling set or filling adapter.

This refillable lightweight composite LPG gas bottle is ideal for use in all kinds of gaseous LPG applications, such as in your camper, caravan, garden or holiday home. The composite material (plastic) ensures that the bottle is robust and corrosion-free and is suitable for permanent outdoor use.

The plastic gas cylinder with OPD (Overfill Protection Device = 80% filling limiter) is designed and intended to be used as a refillable stationary gas cylinder for the use of vapor gas (not suitable for gas consumption in liquid form). The gas bottle is approved for 10 years usage.

IMPORTANT: The gas bottle is filled with compressed air upon arrival. Release the air pressure from the gas bottle before filling it with gas.

Thanks to the 80% filling limiter (Overfill Protection Device), no more than 80% can be filled. The pressure relief valve ensures that the pressure can never exceed 27 bar. This guarantees safety. These facilities make a refillable OPD gas cylinder much safer than a regular non-refillable gas cylinder.

The semi-transparent gas bottle shows you how much gas is still available.


Data sheet

Right of Withdrawal
When connecting (Electric, Gas or coolant) to this product, the right of withdrawal expires.
Manuals and Documentation - See the tab Attachments on this page.
