LPG Gas Bottle Filling Adapter Shell-Bayonet - W21,8 internal

LPG Gas Bottle Filling Adapter Shell-Bayonet - W21,8 internal

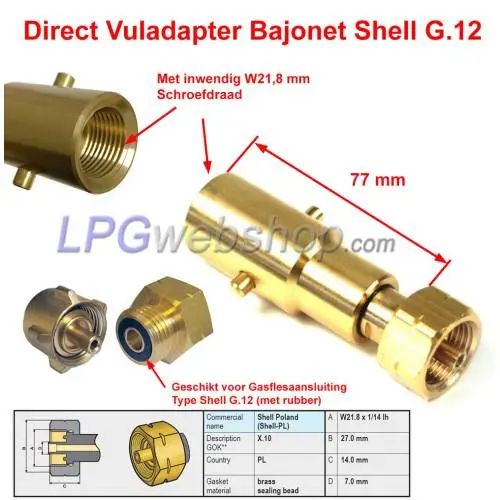

Connection for gasbottle with EN15252: G.12 = W21.8 x 1/14 (M22) Left-hand thread (SHELL)
Is often used for a gas bottle with an 80% filling plug with a Shell G.12 connection (with a rubber sealing ring).
Bayonet nipple for Countries: Netherlands, Norway, England, Luxembourg, Scotland

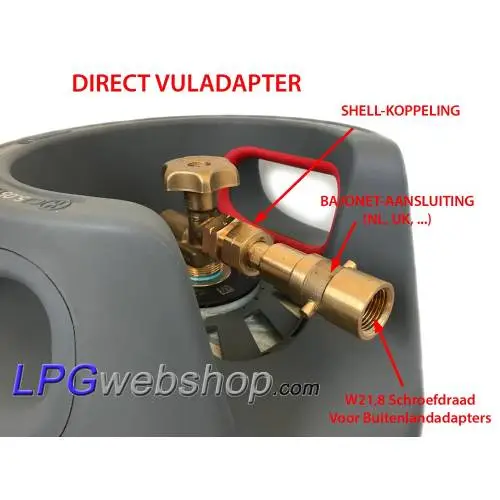

Bayonet side: With W21.8 Female thread to fit LPG adapters for other countries. (Belgium nipple, Italy nipple, Spain nipple, etc.)
Equipped with internal W21.8 thread for connecting foreign filling adapters (with W21.8 thread)
Suitable for Gas cylinders with a SHELL (21.8mm Left Thread) type G.12 (with rubber sealing ring).

If your gas bottle has a SHELL connection without a rubber sealing ring, you can use an adapter from Shell type G.5 to G.12. (see related products below).

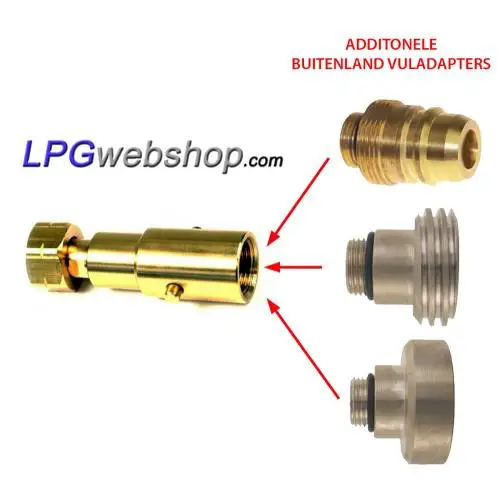

Additional Abroad filling nipples:

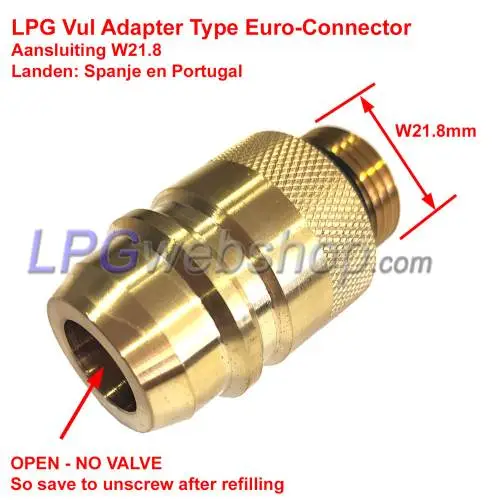

- EURO Connector: Used in Spain and Portugal

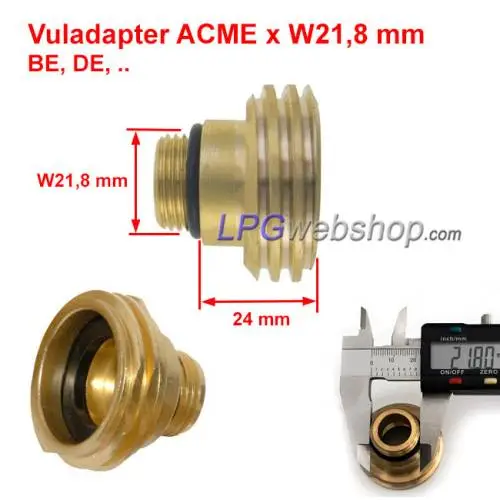

- ACME-Nippel: Used in Belgium, Germany, Luxembourg, Austria, Switzerland (North)

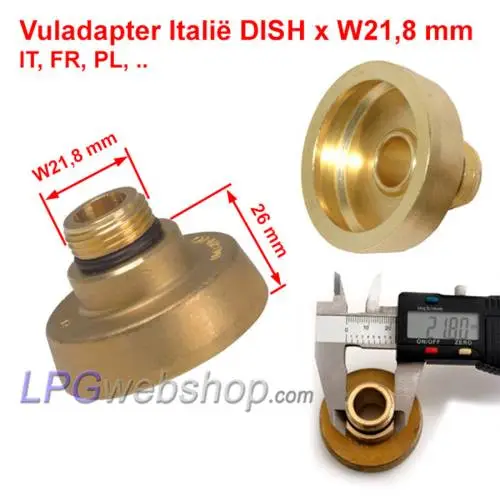

- Disc-Nipple: Used in Italy, France, Czech Republic, Slovakia, Hungary, Poland, Austria, Croatia, Serbia, Bosnia, Greece, Turkey, Switzerland (South)

NB! Please note that in some countries (Italy and a number of Eastern European countries) refueling with LPG is not permitted. This may only be done by the pump station staff. Find out about the regulations of each country where you want to refuel.

Where can I refill my Gas Bottle? For example in the Netherlands, gas bottles may not be filled directly onto the bottle at the pump.
A gas bottle must be equipped with an 80% filling limiter, be properly secured in the vehicle and have an external filling connection.
Filling may be only permitted at and by authorized filling stations. This depends on national regulations.

Filling instructions:
1. Close the gas bottle valve.
2. Mount the filling pipe or filling adapter on the gas bottle. (First dismantle any pressure regulator, filter and/or intake line.)
3. Connect the filling nozzle to the filling connection.
4. Open the gas bottle valve again.
5. Fill the gas bottle with the desired amount (max 80%).
6. After refueling, close the gas bottle valve again.
7. Disconnect the filling nozzle and the filling pipe / filling coupling. (Be careful! Some LPG may be released)
8. Reconnect the pressure regulator/take-off line to the gas bottle.
