30 mbar Pressure regulator CAVAGNA 694 for gas bottles

107681

Brand: CAVAGNA
Type number: 694
Approval number: CE-0085BU0133
Pressure class: EN16129 (1-16 bar)
Output pressure: 30 mbar
Flow capacity: 1.5 kg/h

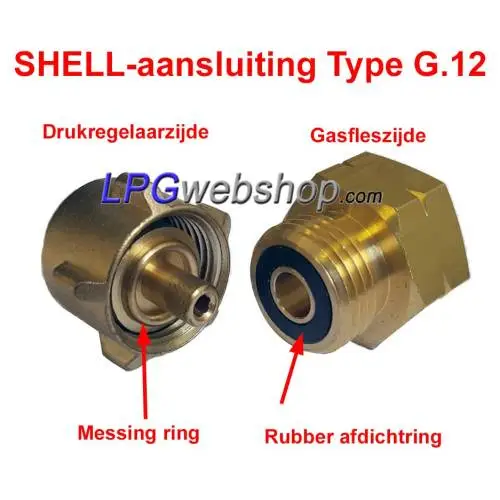

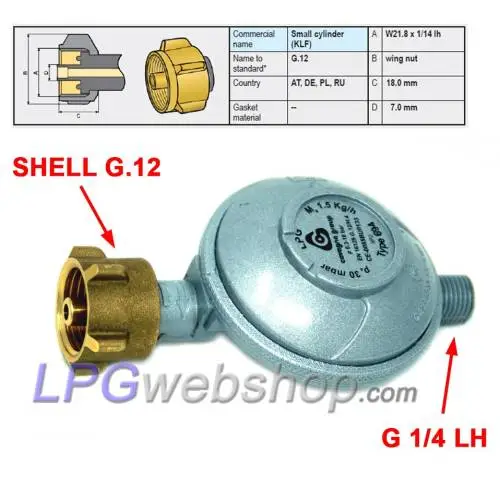

Input Connector: SHELL-KLF G.12 (W21.8 x 1/14 lh)

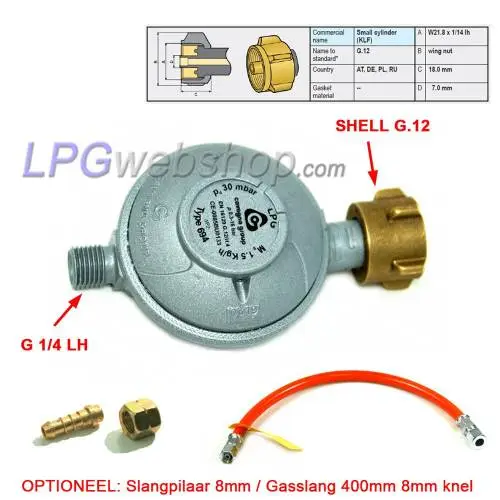

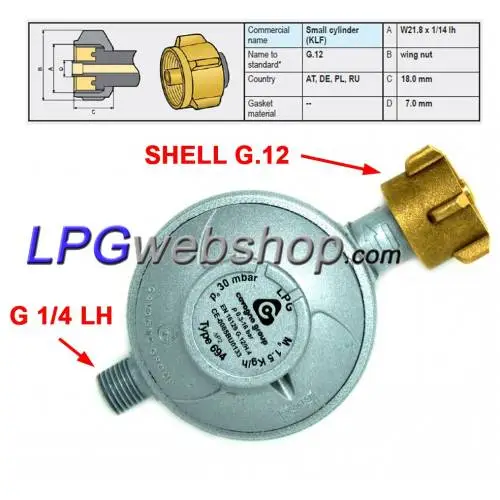

Output connection: G 1/4" LH (±13mm)

€9.60
€12.00
Save 20%
- Delivery: 1-4 days
Quantity
IN STOCK
  Safe Webshop

Webshop Trustmark & Secured by SSL. Your data and orders are safe here.

  Delivery policy

Safe and Secure Shipping with DPD or DHL

  Refund policy

Política de reembolso de 14 días y derecho de devolución

Pressure regulator CAVAGNA 30 mbar 694 for gas bottles

Cavagna low pressure pressure regulator type 694 for a gas bottle with G.12 connection and suitable for any type of LPG (mixing ratio propane / butane).

The pressure regulator is only suitable for outdoor use. Because the pressure regulator has a pressure relief valve, it can blow off gas pressure if necessary. For this reason, the pressure regulator must not be used indoors, but outdoors or in a ventilated area (for example, the gas tank of a caravan)

Function & Application:
This 1-stage pressure regulator fits directly on a gas bottle with a shell G.12 connection and reduces the gas pressure from the LPG vapor tank or gas bottle to a constant lower working pressure of 30 for the rest of the gas installation and the connected equipment with a max. flow capacity of 1.5 kg/h.

EXTRA INFORMATION
This LPG pressure regulator prevents liquefied gas from entering the pipeline and is equipped with an overpressure protection and a mounting plate.

Since 2002, a pressure of 30 mbar has been prescribed for gas installations in vehicles. Before the year 2002, both 30 mbar and 50 mbar were used in motorhomes and caravans. Make sure you choose a pressure regulator that supplies the correct gas pressure for the connected equipment.

Safety instructions:
- Mount the pressure regulator in an outdoor area or ventilated area. These parts may not be placed inside (the cabin) of a motorhome or caravan. These serve in a ventilated room, which is connected to the outside air and not connected to the indoor space.
- Read the instructions as supplied with the pressure regulator

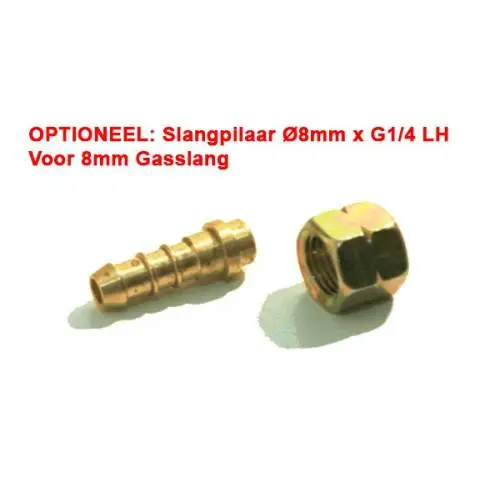

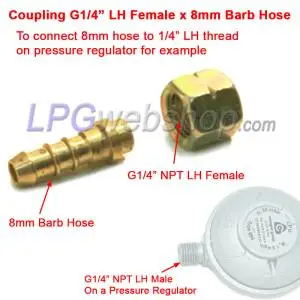

NB! Mount the reducers on the pressure regulator using sealing gas tape or locking compound to ensure a good seal.

Only suitable for gas in vapor form from LPG vapor tank or gas bottle. (NOT suitable for liquid LPG)

Note the connection direction (flow direction) of both the gas filter and the pressure regulator. See arrow on product. Supply: IN, connection to small staircase and Offtake: OUT, connection to large staircase

TIP! Provide the parts with a protective coating such as a transparent tectile, for example, so that they are well protected against water and dirt from the outside.

107681

Data sheet

Right of Withdrawal
The right of return expires when the transparent packaging is opened.
