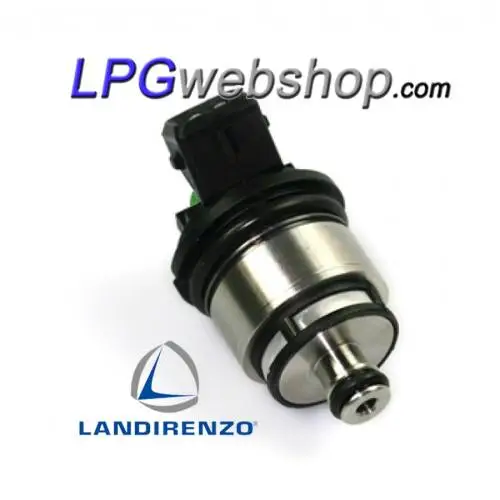

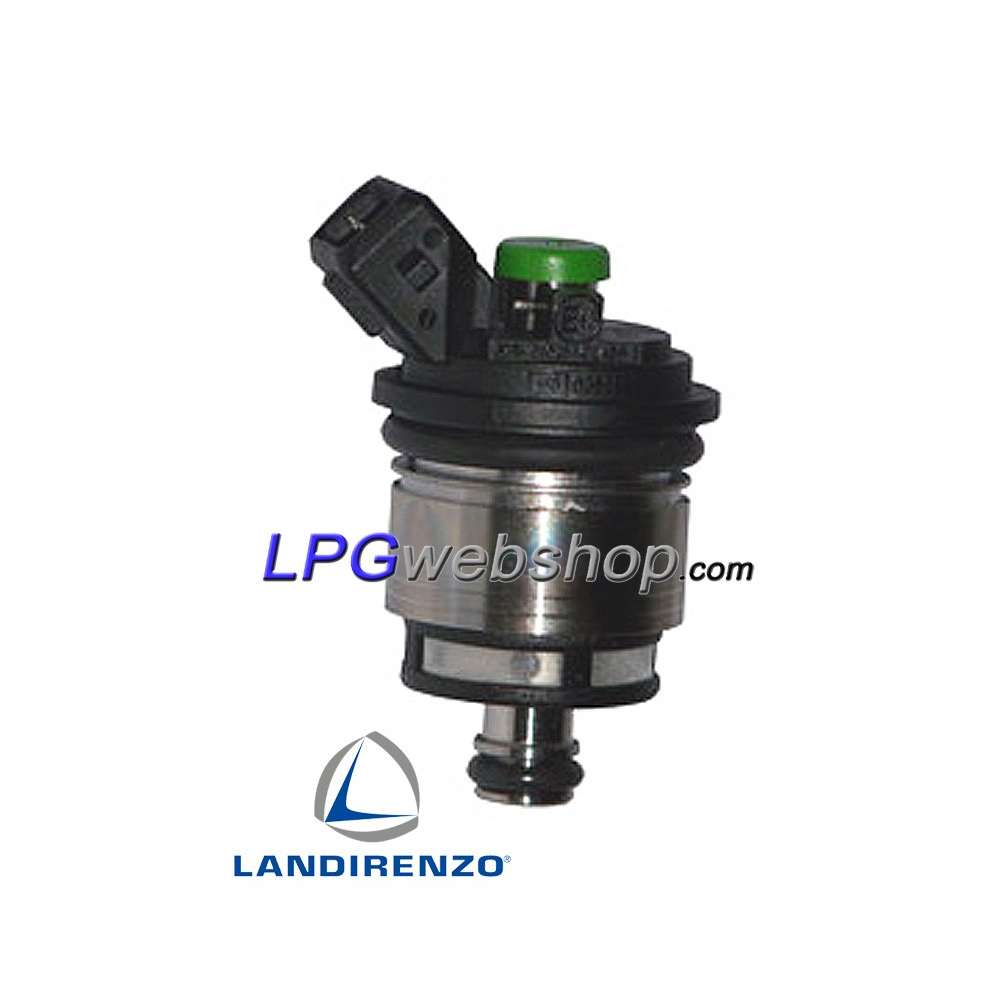

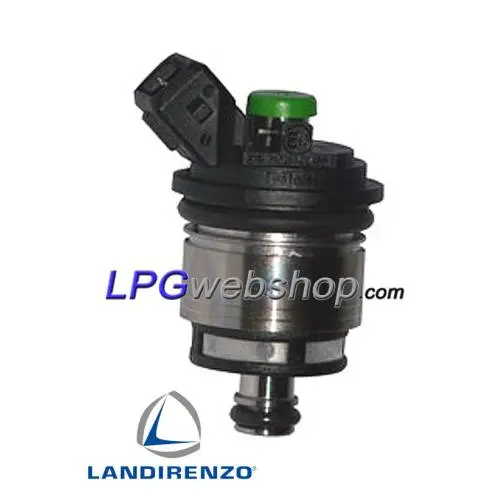

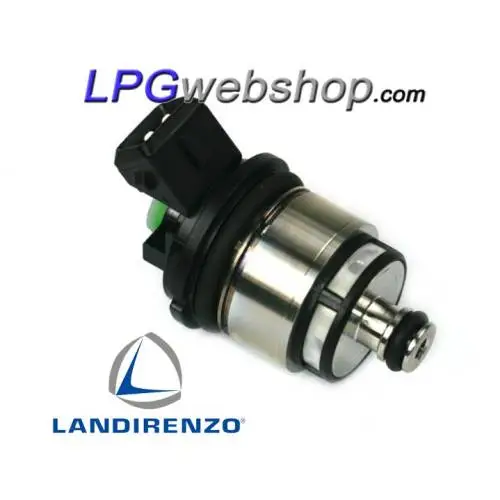

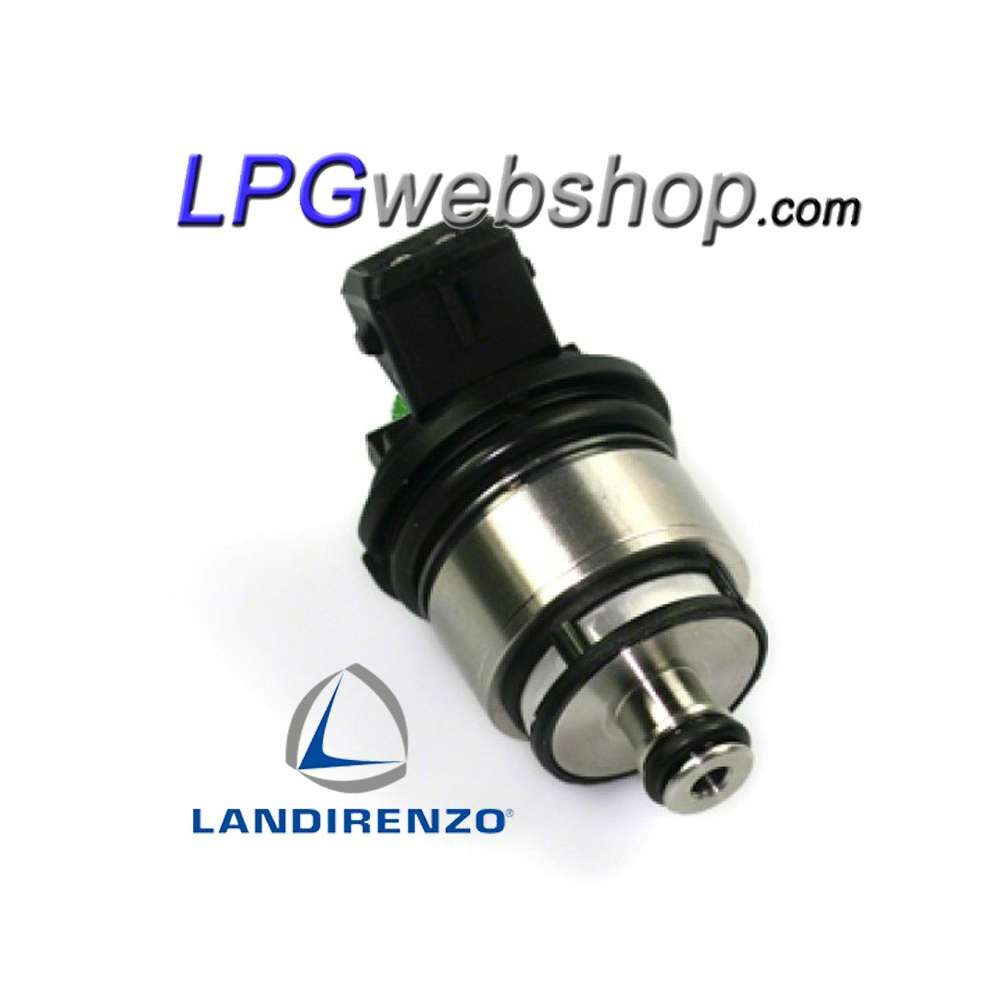

Landi Renzo Gas Injector TB/TU2522 GI25-22 Small Green MED with AMP Connector

-35%

Category: GI-25 Series

Reference: 720007000

Brand: Landi Renzo
Injector Approval: E13 67R-010234 - E13 110R-000058

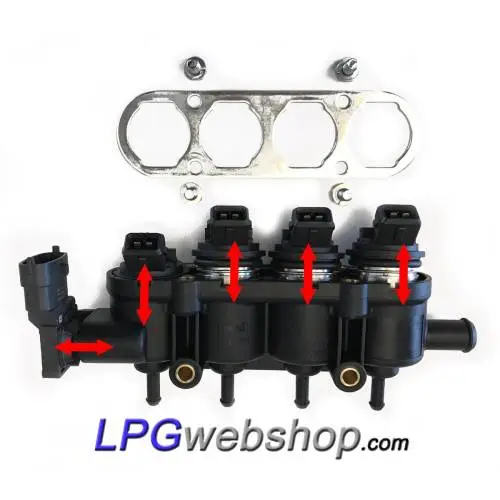

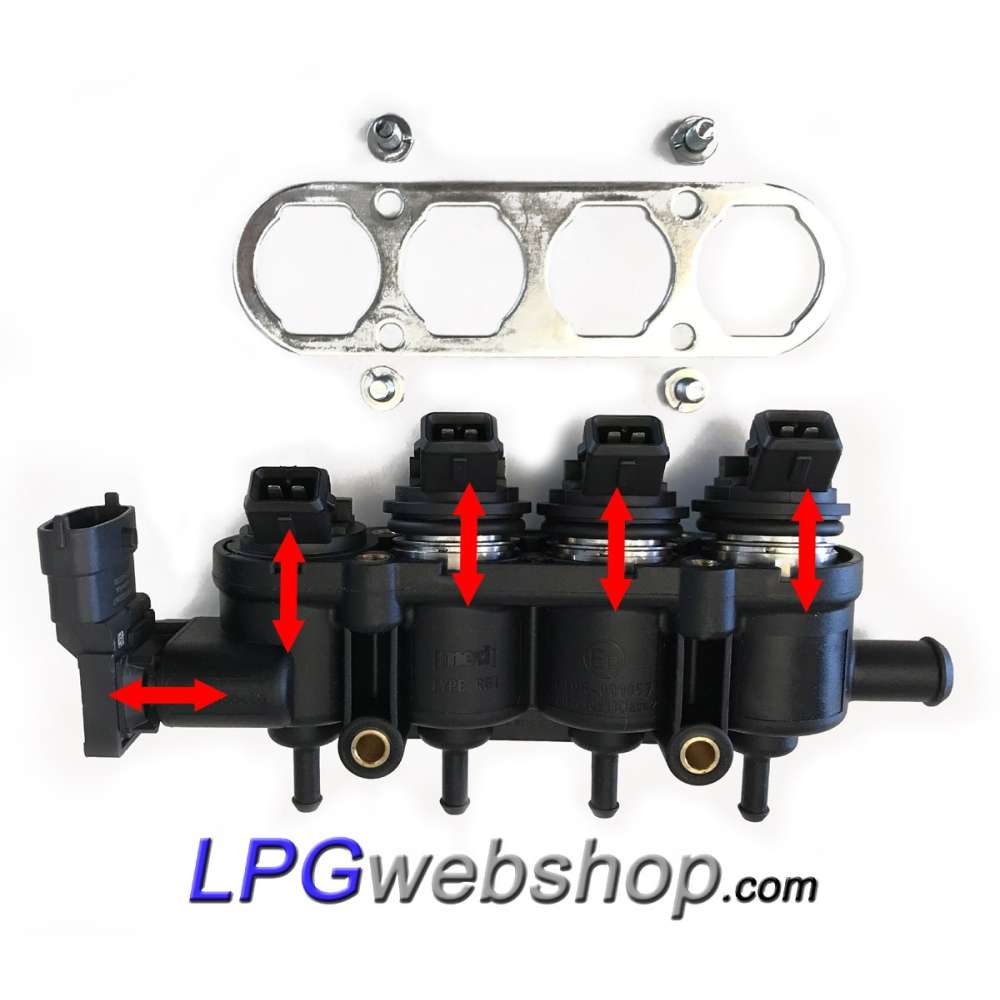

Rail (Holder) Approval: E13 67R-010233 - E13 110R-000057
Type and Variant: GI 25-22 TU2522 (TB2522) Small Green
Manufacturer Code: 237109000
Electrical Connector: Bosch AMP 2 Way
Injector Size: Small GI 25-22 Green
The injector size is indicated by the color of the plastic cap and the code on the upper part of the injector next to the plug connection.
Factory OEM systems: e.g. CITROEN DACIA OPEL RENAULT SEAT VW SKODA
Gas systems: Landi Omegas (Direct) / Eurogas Omegas / Landi LSI

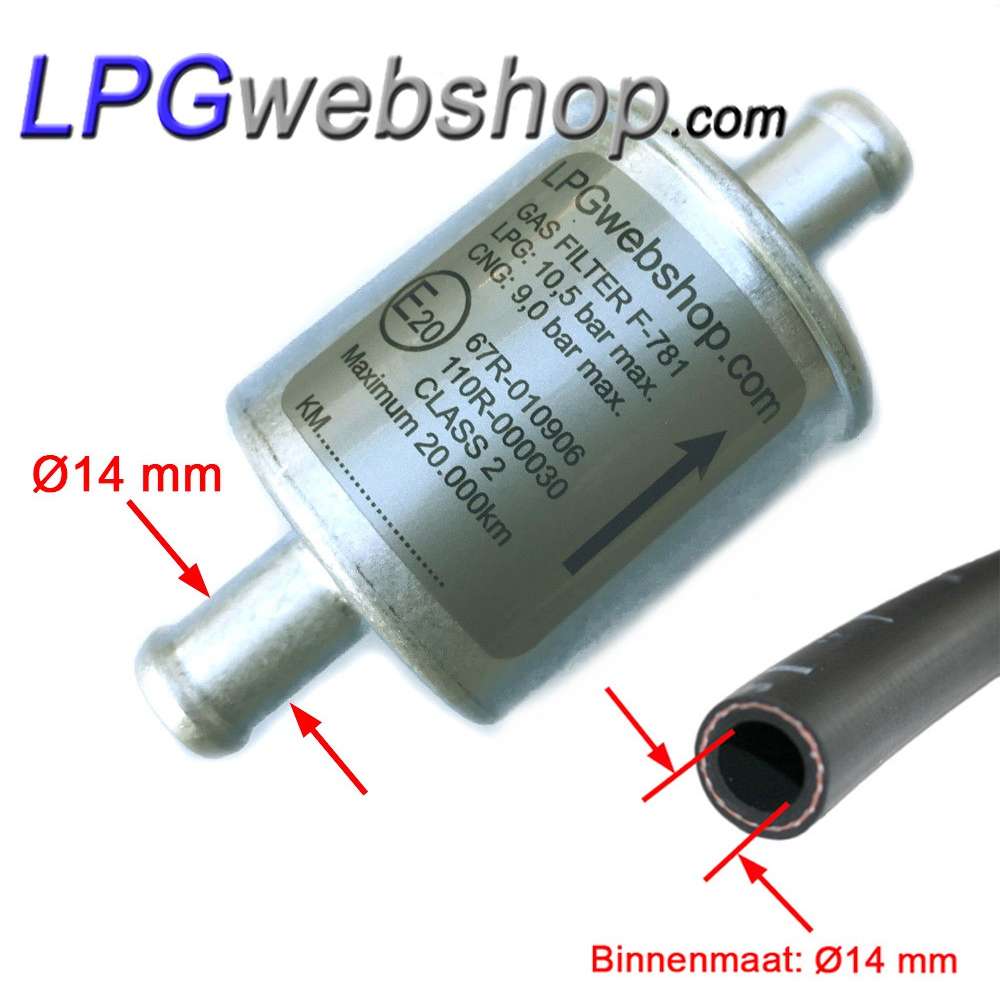

FREE GAS FILTER type F-781 when ordering 3 or more injectors

€47.78 tax incl.

€73.50

Save 35%

Foreign companies with a valid VAT number shop VAT-free here! READ HOW.

- Delivery: 1-4 days

Safe & Trusted

Webshop Trustmark Certified Member & Secured by SSL. Your data and orders are safe here.

Delivery policy

Safe and Secure Shipping with DPD or DHL

Refund policy

Política de reembolso de 14 días y derecho de devolución

Description
Product Details

Landi Renzo LPG Gas Injector GI25-22 Size Small (Green Cap) RGI TB/TU2522 MED (237109000) - AMP / Bosch Connector

Suitable for the following gas systems:

- Landi Renzo Omegas

- Landi Renzo Omegas Direct

- Various Landi Renzo Factory systems: CITROEN, DACIA, OPEL, RENAULT, SEAT, SKODA, VW, and others

- OEM OPEL: (GI25-22-P-T 821010 9271859) Insignia (A14NET) / Agila B (K10B),(K12B) / Meriva A (Z14XEP) / Meriva B (A14NEL) / Corsa D (Z12XEP),(Z14XEP) / Combo D (Z12XEP),(Z14XEP) / Astra H (Z14XEP)

- Eurogas Omegas 2.0 (from 2011) (Renault, Citroen, Peugeot, Volvo)

- Landi LSI

- NB! NOT SUITABLE FOR FIAT ALFA LANCIA

Important information regarding Gas Injectors

ATTENTION! Replace all injectors and use the correct injector size!

ATTENTION!

If you DO NOT replace ALL the injectors, there are many possibilities of differences between your new and old (contaminated) injectors, so the engine will still work badly and it may even seem that the new injectors do not work properly. All injectors are controlled with more or less the same injection time. The old injectors will dose more gas than the new injectors, because they are still accurate. Because the average mix is still too rich, the engine management will shorten the injection time, so that the new injectors will deliver even less. This will be particularly noticeable with a low engine load (idle) and much less noticeable with a higher engine load (not a high speed, but with the accelerator pedal well depressed).

Therefore it's important to replace all the injectors at the same time.

NB! USE THE SAME INJECTOR SIZE AS NOW USED ON YOUR CAR TO AVOID ADJUSTMENTS (SOFTWARE).

Replace the gas phase filter in time to prevent contamination of the gas injectors!

Replace the gas phase filter in time and regularly!

The filter lasts a maximum of 20,000 km. Preferably replace the filter earlier.
This replacement period applies with an average engine capacity of approximately 1.8L. Larger engines use more gas, which means the gas filter needs to be replaced sooner.
It is also possible that the LPG contains a lot of contamination (with oil and fats) at some refueling, which means that it is necessary to replace the filter earlier. Take this into account.
The timely replacement of the gas filter is necessary to prevent contamination of the gas system and gas injectors.

TIP!

Use 2 filters one after the other (in series) instead of just 1 filter. This allows you to prevent the contamination of the injectors even more when driving on a polluted LPG quality, for example. In this way there is a second filter that can still catch the excess paraffin.

Background information regarding gas injector problems

In most cases the problem is caused by the fact that the gas injectors are contaminated with paraffin (oils and greases from the LPG). The filter upstream of the injectors must ensure that the injectors do not contaminate quickly. This gas phase filter will eventually become saturated and must be replaced every 20,000 km. If the filter is not replaced, the paraffin will no longer be trapped and end up in the injectors. It is not the case that the injectors leak or do not open anymore. But the opening and closing time are no longer correct. The injectors remain open longer than they should (with dynamic behavior), which means that too much fuel is being dosed. (too rich mixture) The injectors will then deviate, especially with short injection times (low engine load). The engine is going to run messy and there are too large differences between the injectors. Cleaning the injectors often makes no sense, because there is often too much wear in the injector occurred, as a result of which the guide of the plunger (sealing disk) no longer has the right fit. The plunger does not go smoothly and lord, but goes up and down stumbling and wobbling. If the injectors are replaced without replacing the filter, the new injectors will soon become dirty again. (read symptom control, no long-term solution)

Application List Landi Renzo Injector Green GI 25-22 Small

NB! This list is not complete and not 100% accurate and is for guidance only.

CHEVROLET with a LANDI RENZO system
- AVEO 1.2
- KALOS 1.2
- MATIZ 1000
- MATIZ 800

CITROEN with an EUROGAS OMEGAS system (Netherlands)
- Berlingo II 1.6 16v NFU / NFR
- Berlingo II 1.6 16v (5FW/5FS)
- C3 1.4 16v KFU
- C3 1.4 16v (8FR/8FS) & 1.6 16v (5FW/5FS)
- C3 Picasso 1.4 16v (8FS / 8FR)
- C3 Picasso 1.6 16v (5FS / 5FW)
- DS3 1.4 16v (8FR/8FS) & 1.6 16v (5FW/5FS)
- C4 (Picasso) 1.6 16v 5FW VTi
- C5 II 1.6 16v (5FW/5FS)
- Nemo 1.4 8v KFV

CITROEN with a LANDI RENZO system
- C1 1.0L 1KR AM C.
- C3 1.4 KFV
- C3 NUOVA 1.1L HFV AM C
- C3 PICASSO 1.4 8FS
- C4 PICASSO 1.6L 5FW

DACIA with an EUROGAS OMEGAS system (Netherlands)
- Duster 1.6 16v K4M 606
- Logan 1.6 16v K4M 690 / 696
- Logan 1.6 16v K4M

DAIHATSU with a LANDI RENZO system
- SIRION 1.3 K3-VE 2WD COMP
- MATERIA 1.3 K3 COMPLETO GPL
- SIRION 1.3 K3-VE 4WD COMP
- TERIOS 1.3- Type Injector
- TERIOS 1.3 K3 AM COMP

FORD with a LANDI RENZO system
- FIESTA 1.2 SNJA

HONDA with a LANDI RENZO system
- JAZZ 1.4 L13Z COM AM
- CIVIC 1.4 L13Z C.AM
- JAZZ 1.2 L12A4

HYUNDAI with a LANDI RENZO system
- I10 1.1 G4HG COM.AM
- I10 1.2 G4LA COM.AM
- I20 1.2 G4LA COM.AM

MINI with a LANDI RENZO system
- COOPER CLUBMAN 1.6 N12B16A AM C
- ONE 1.4 N12 AM C.

OPEL with a LANDI RENZO system
- AGILA 1.0 Z10XEP
- AGILA 1.2 Z12XE
- ASTRA H SW/5P/GTC 1.4 Z14XEP
- COMBO 1.4 Z14XEP
- CORSA C 1.0 Z10XEP
- CORSA C 1.2 Z12XEP
- CORSA D 1.0 Z10XEP
- CORSA D 1.2 Z12XEP
- CORSA D 1.4 Z14XEP
- MERIVA 1.4 Z14XEP
- AGILA 1.2L K12B KM0 COM
- ASTRA 1.4L A14XER KM0 COMP
- CORSA D 1.2 A12XER COM KM0
- ASTRA G 1.6 Z16XE
- ASTRA J SW 1.4 A14XER AM C.
- MERIVA 1.4L A14XER KM0 C.
- AGILA-SPLASH K10B E5 AM C.
- AGILA-SPLASH K12B E5 AM C.

PEUGEOT with an EUROGAS OMEGAS system (Netherlands)
- 207 1.4 16v (8FS/8FR)
- 207 1.6 16v (5FW/5FS)
- 308 1.4 16v 8FS, 8FR
- 308 1.6 16v 5FW, 5FS
- 3008 1.6 16v 5FW/5FS
- 5008 1.6 16v 5FW / 5FS VTi
- Bipper 1.4 8v KFV
- Partner II 1.6 16v NFU / NFR

PEUGEOT with a LANDI RENZO system
- 308 1.4 8FS COM.AM
- 107 1.0L 1KR AM COM
- 207 SW 1.6L 5FS C. AM
- PEUGEOT 5008 1.6 5FS AM C.
- 207 1.4 KFU
- 3008 1.6 5FW COM AM
- 308 SW 1.6 5FW COM AM
- PARTNER 1.6 5FS AM C

RENAULT with an EUROGAS OMEGAS system (Netherlands)
- Clio III TCE (1.2 16V turbo)
- Clio HB / Clio Estate (1.4 16v / 1.6 16v) K4J / K4M
- Modus TCE (1.2 16V turbo)
- Modus / Grand Modus (1.4 16v / 1.6 16v) K4J / K4M
- Megane II (1.4 16V K4J)
- Megane III K4M (1.6 16v)
- Scenic III (grand scenic) K4M (1.6 16v)

RENAULT with a LANDI RENZO system
- NEW TWINGO 1.2 D4FJ7 (E4-E5)
- CLIO 1.2 D4FD7 E5 COM KM0
- CLIO 2 1.2 (16V.) D4FG7
- CLIO 2° 1.2 (8V.) D7FG7
- CLIO 3°/MODUS 1.2 D4FD7 55KW
- CLIO SPORTOUR 1.2L D4FD7
- CLIO SPORTOUR 1.2L TURBO D4FH7
- CLIO3/MOD/GMOD D4FH7 1.2L TURBO
- KANGOO 1.2 D4FF7
- NEW TWINGO D4FH7 1.2L T COMP

SEAT with a LANDI RENZO system
- CORDOBA 1.2 BXV
- CORDOBA 1.4 BKY
- CORDOBA 1.4 BXW
- IBIZA 1.2 BXV
- IBIZA 1.4 BKY
- IBIZA 1.4 BXW
- LEON TAMP. 1.4 BXW
- NUOVA IBIZA 1.2 BZG/CGPA
- NUOVA IBIZA 1.4 BXW

SKODA with a LANDI RENZO system
- FABIA 1.4 BKY
- FABIA 1.4 BUD
- NEW FABIA 1.2 BBM/CHFA
- ROOMSTER 1.2 BME
- ROOMSTER/NEW FABIA 1.2 BZG/CGPA
- ROOMSTER/NEW FABIA 1.4 BXW
- FABIA 1.2L CGPA E5
- FABIA 1.4L CGGB E5 Type
- FABIA BER/SW 1.2CHFA E5 KM0 C

SMART with a LANDI RENZO system
- SMART FOR TWO 3B21 1.0L

SUZUKI with a LANDI RENZO system
- SUZUKI PIXO/ALTO K10B COMP.AM
- SUZUKI SPLASH 1.2

TOYOTA with a LANDI RENZO system
- TOYOTA YARIS 1.0 1KR AM C.
- TOYOTA AYGO1.0 1KR AM C

VOLKSWAGEN with a LANDI RENZO system
- POLO 1.4 BKY
- FOX 1.2 BMD
- FOX 1.4 BKR
- POLO 1.2 BBM
- POLO 1.2 BME
- POLO 1.2 BZG/CGPA COMP
- POLO 1.4 BUD
- POLO NUOVA 1.2 CGPA COM
- POLO NUOVA 1.4 CGGB COMP

Reference 720007000

Data sheet

Characteristic:: Size: Small GI25-22 Green - AMP Bosch Connector
Right of Withdrawal: When connecting (Electric, Gas or coolant) to this product, the right of withdrawal expires.
Downloads:: Manuals and Documentation - See the tab Attachments on this page.
Related Products:: See bottom of this page
Shipping Cost:: Is calculated in the Checkout and is visible there. (Depends on total weight, destination and discounts.)
Application:: Landi Renzo Omegas / Eurogas Omegas / Landi LSI

Condition New
