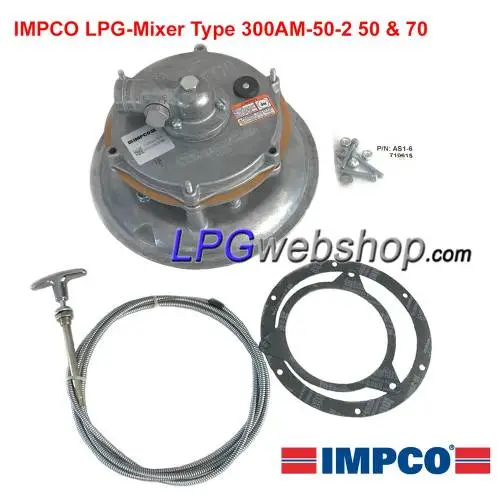

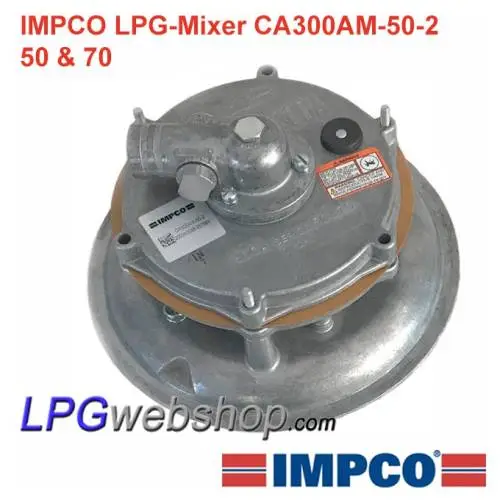

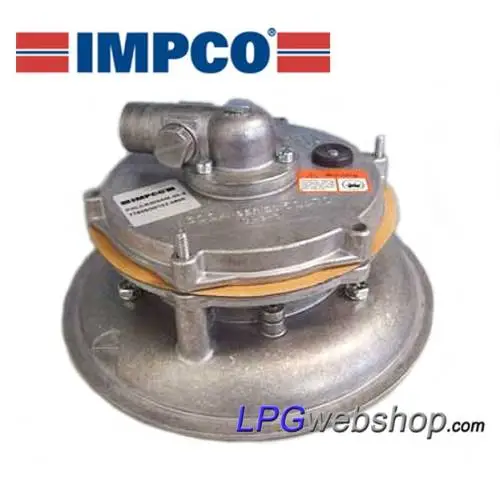

IMPCO LPG Mixer CA300AM-50-2 series 50&70 incl. Choke cable and Gaskets for V8

IMPCO LPG Mixer CA300AM-50-2 series 50&70 incl. Choke cable and Gaskets for V8 > 5.0L excl. filter

This type of LPG Mixer is the most suitable and most used on American classics with larger engines above 5.0 L from the brands Chevrolet, Ford, Chrysler, Dodge, Cadillac, etc. Use this type of mixer in combination with an IMPCO Model E Reducer for optimal operation.

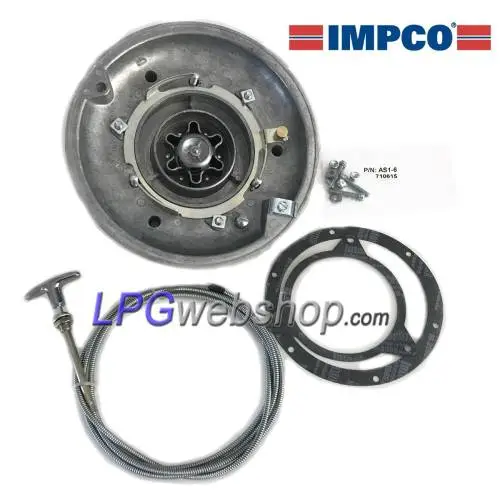

Fitted with a choke cable to open the mixer to allow more air to flow through when running on petrol. Including new gaskets for a good seal.

Specifications and Connections:

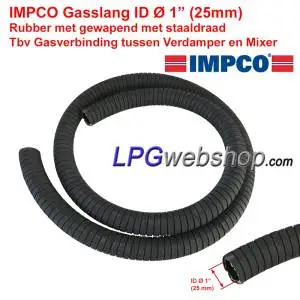

- LPG input with a 1" (25mm) hose barb for gas hose
- Adjustment on input
- Air filter (F1-1) and Air filter cover (plate) C1-4 To be ordered separately.

Air Filter F1-1:
An IMPCO Air filter (F1-1) is used on this mixer. This air filter can optionally be ordered with the product.

Air filter plate (cover) C1-4:
The air filter is attached to the mixer by means of a cover or plate. This air filter cover (plate) C1-4  is provided with a recess for placing a crankcase ventilation connection. The air filter plate (cover) can be ordered optionally with the mixer,

Application: To make American classics with a V8 engine larger than 5.0 L; Chevrolet, Ford, Chrysler, Dodge, Cadillac, etc. to run on LPG in combination with an IMPCO Model E evaporator.

Correct Installation! Have this Product installed by a competent person or specialist company!

NB! Place this type of mixer on top of the carburettor by means of a suitable adapter. There are different adapters that should be used depending on the type of carburetor, so that the whole fits together well.

If there is not enough space under the hood to place the mixer on top of the carburetor, the mixer is positioned next to the carburetor by means of a so-called "arm". These are a number of parts for the carburetor such as an A1-57 (Hood / Hood), a suitable adapter (A1-54 / A1-55 / A1-61) to make the hood fit on the carburetor, a number of extensions ( with or without an angle) and an end piece A1-63 Unidapt on which the mixer can be mounted. You can find these parts in this category.

Technical Specs:
     Fuel Type .......................................LPG Vapor
     Operating Temperature Range ...... -40°F to +250°F (-40°C to +121°C)
     Mounting Position ........................... Vertical
     Diaphragm Material ..................... Hydrin (Standard), Silicone (Optional)
     HP/(kW) (50 & 70) ......................... 270 hp
