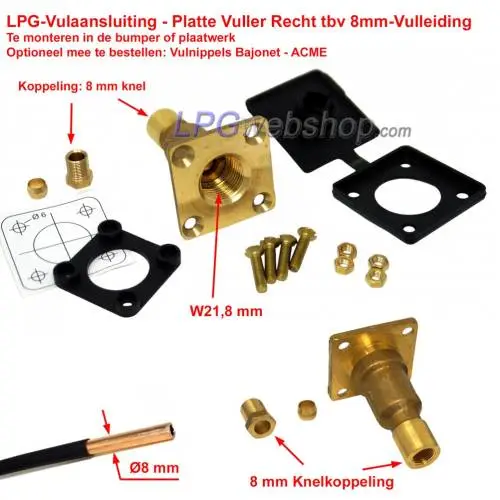

LPG Filling Point W21,8 - Straight 8mm Fitting + Plastic Cap

LPG Filling Point W21,8 - Straight 8mm Fitting + Plastic Cap

Connect the outer filling connection with an 8mm filling pipe to your LPG Tank or Gas Bottle to be able to fill it with LPG.

This type of filling connection has a straight 8mm compression connection on the outlet (at the rear) to which you can connect a filling pipe (Ø8mm copper pipe or a plastic pipe with Ø8mm coupling pieces). This system is generally used in combination with LPG tanks with a MultiValve with an 8mm compression connection on the tank inlet.

In this way you can fill your LPG tank or gas bottle with LPG (Refueling)

Equipped with an internal non-return valve, so that the gas does not flow back from the filling hose.

This type of outer filler is called a "flat filler" because it does not have a fixed integrated filler nipple and is therefore flat on the front. You can place this type of filling connection in the bumper or in the sheet metal, for example. To refuel it is necessary to screw a filling nipple onto the filling connection. Due to the lack of a fixed filling nipple, this type of filling connection is less high than a "high filler", so that less depth / space behind the sheet metal / bumper is required for the filling connection.

NB! When placing a filling connection, take into account the available space behind the platform / bumper, so that you are sure that there is sufficient space for the filling connection and the filling hose. A flat filler and an angled filler require less space / depth behind the sheet metal. This may be a reason to choose an angled filler instead of a straight filler or a flat filler instead of a high filler.

A sticker is included as an aid, on which the holes to be drilled are depicted. By sticking the sticker where you want the filling connection, you can easily drill holes in the right place.
