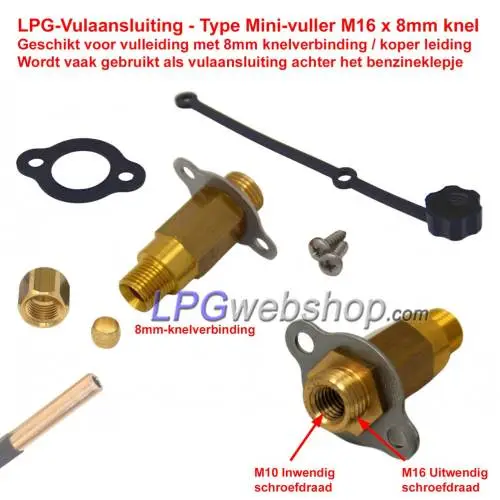

LPG filling connection Mini filler M16 x 8mm compression for LPG filling line and MultiValve LPG tank

LPG filling connection Mini filler M16 x 8mm compression for LPG filling line and MultiValve LPG tank

Compact filling connection which makes it possible to place it in a limited space, such as behind the petrol flap. Connect the outer filling connection with an LPG filling hose or filling pipe to your LPG Tank or Gas Bottle to be able to fill it with LPG.

This type of filling connection has a straight 8mm compression connection on the outlet (at the back) to which you can connect a filling pipe (Ø8mm copper pipe or a plastic pipe with Ø8mm coupling pieces). This system is generally used in combination with LPG tanks with a MultiValve with an 8mm compression connection on the tank inlet.

In this way you can fill your LPG tank or gas bottle with LPG (Refueling)
Equipped with an internal non-return valve, so that the gas does not flow back from the filling hose.

This type of outer filler is called a "mini filler" because it is small and compact and does not have a fixed integrated filler nipple. Due to its small dimensions, you can place this type of filling connection behind the fuel flap, for example. To refuel it is necessary to screw a filling nipple onto the filling connection (with M16 internal thread).

NB! When placing a filling connection, take into account the available space behind the filling connection, so that you are sure that there is sufficient space for the filling connection and the filling hose.
