Cyl. Camper LPG Tank 70L (Ø315x1004) GZWM 4 Hole - Incl. Valves - Camper Cooking

355003500

Type: GZWM ZC315/70P - 4-hole vapor gas cylinder gas tank (4 x separate appendages)
Approval: E20 67R-01 0611 (No 10-Year Re-Approval required thanks to High-Quality Automotive ECE 67R-01 Approval.)
Tank capacity: Gross 70 Liter (80%=56 Liter)
Dimensions: Ø315 mm x Length: 1004 mm
Gross Empty Weight: 30.5 kg

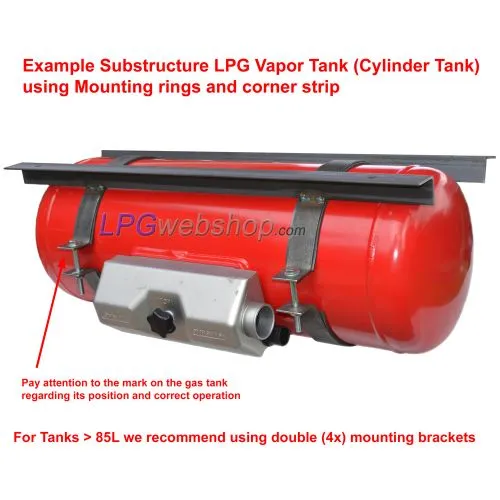

Mounting: Using mounting rings / mounting brackets (Consult the regulations)

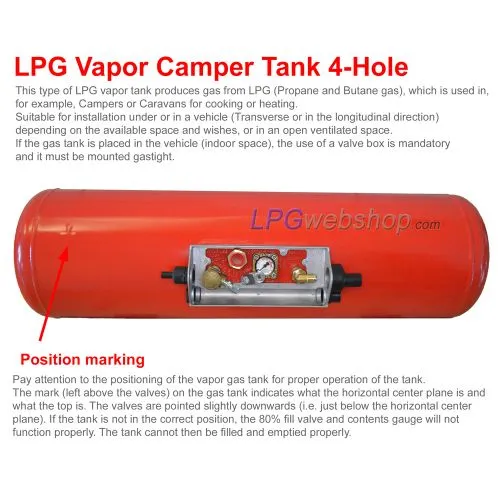

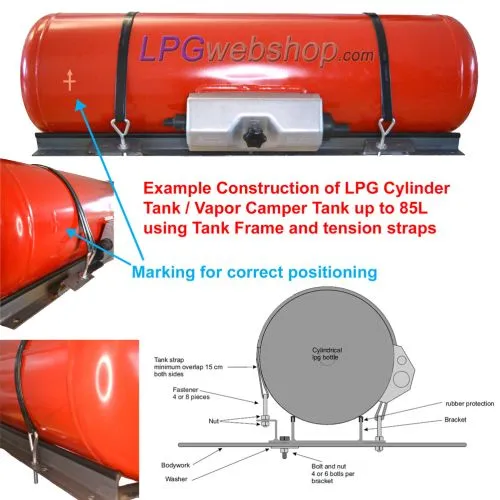

Tank position: Horizontal, appendages slanted downwards. See mark (cross with arrow) on gas tank to indicate top and horizontal center.

NB! Choose the tank in the correct configuration (Images for illustrative purposes and examples of configurations.)

€317.70
€353.00
Save 10%
- Delivery: 1-4 days

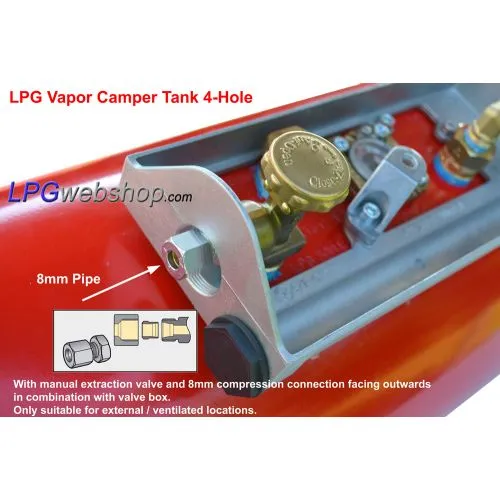

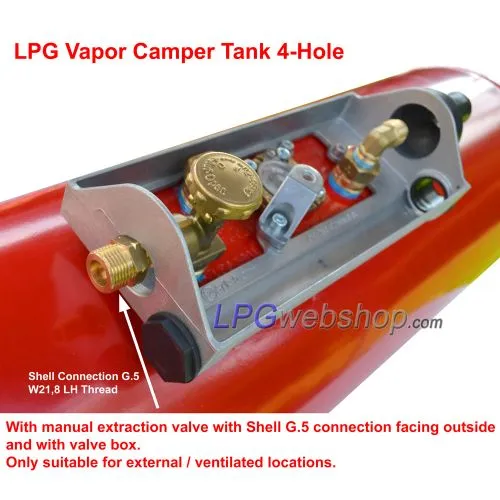

Extraction Valve
Quantity
IN STOCK
  Safe Webshop

Webshop Trustmark & Secured by SSL. Your data and orders are safe here.

  Delivery policy

Safe and Secure Shipping with DPD or DHL

  Refund policy

Política de reembolso de 14 días y derecho de devolución

Cylindrical Camper LPG Tank 70 Liter (Ø315x1004) GZWM 4 Hole - Incl. Valves - Camper Cooking (Gaseous) for your Motorhome of Foodtruck

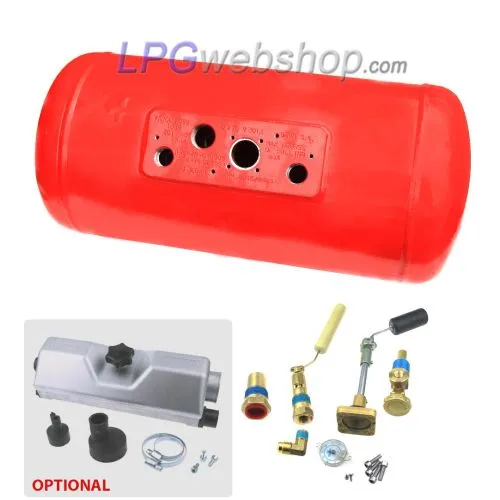

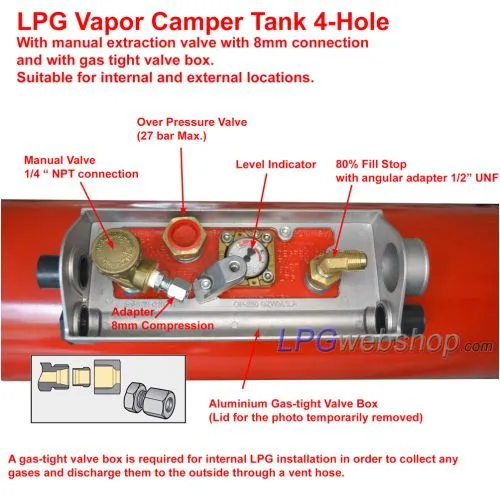

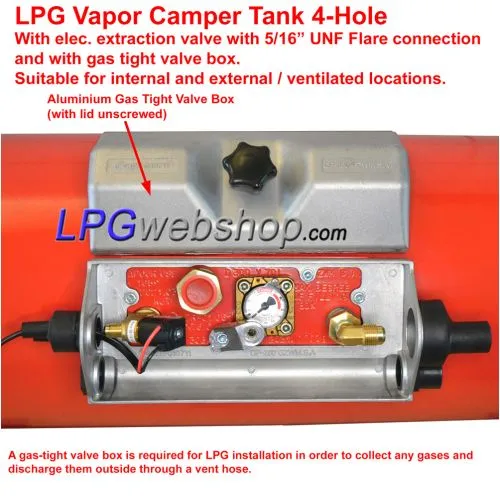

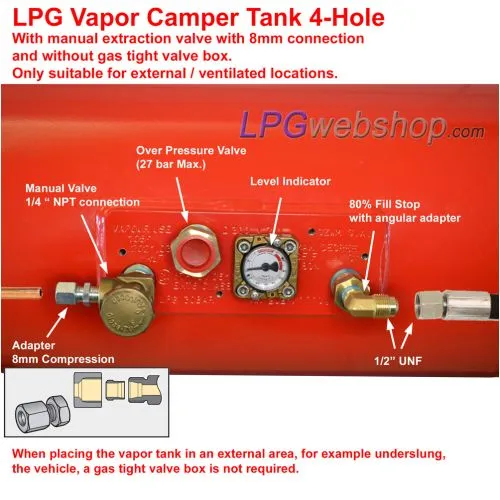

This LPG Camper tank is equipped with 4 fittings; an 80% filling stop with non-return valve, an overpressure valve (blow-off valve), an extraction valve (manually or electrically operated), a level meter with a clock. An optional gas tight housing (Tank box) encloses these fittings and can collect possible leaking gases.
To view the tank content on the dashboard, an LED indicator with tank sensor is optionally available. A filling hose can be connected to the 80% filling valve with elbow, which is connected to a filling connection on the vehicle. The gas pressure from the vapor tank must be reduced and adjusted by means of a pressure regulator.

No 10-year re-test required thanks to High Quality Automotive ECE 67R-01 Approval.

Before ordering first check very carefully which type of LPG tank and which dimensions you need and what fits in your application. Exchanging an LPG tank is sometimes difficult, since the transport of heavy tanks is per pallet and is expensive. (Pick up may also be possible.)

Please study the information below well!

355003500

Data sheet

Attention!
It is mandatory to have this product installed by an expert. Our company disclaims all liability in the event of an accident.
Note:
Gas Tight Housing is necessary when tank is fitted inside the vehicle. It's not required when tank is fitted outside in the open air.
Recommendation:
If the tank is fitted underneath the car, apply an undercoating to protect the tank and have a longer lifespan.
Right of Withdrawal
When connecting (Electric, Gas or coolant) to this product, the right of withdrawal expires.
Downloads:
Manuals and Documentation - See the tab Attachments on this page.
Related Products:
See bottom of this page
Shipping Cost:
Is calculated in the Checkout and is visible there. (Depends on total weight, destination and discounts.)
Application:
Suitable for in and under the car
Diameter Cyl. Tank
32cm
Tank Capacity:
61 - 70L
Tank Length:
91 - 100cm

Download

LPG Tank Install. Instructions

LPG Tank Installation Instructions

Download (2.59MB)

GZWM Cyl. Tank 4-Hole ZC-315p

Approval GZWM LPG Cylinder Tank 4-Hole ZC-315p - E20 67R 01 0611

Download (1.85MB)

GZWM Gas Tight Housing OP-280

Approval GZWM Gas Tight Housing OP-280 - E20-67R-01-0711

Download (743.51KB)
