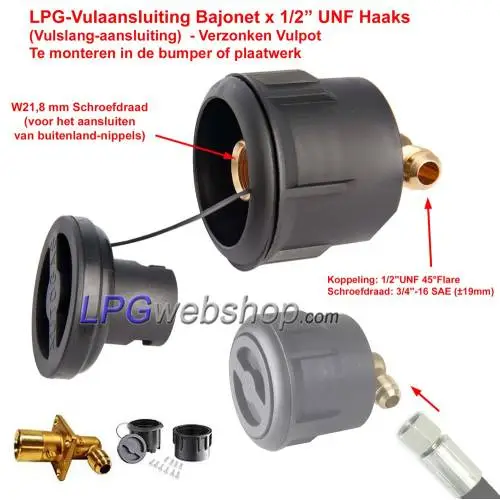

LPG Filling Point Bayonet 1/2"UNF (19 mm) 90° + Plastic Housing LPG Filling Hose

LPG Filling Point Bayonet 1/2"UNF (19 mm) 90° + Plastic Housing for LPG Filling Hose

Connect the outer filling connection with an LPG filling hose or filling pipe to your LPG Tank or Gas Bottle to be able to fill it with LPG.

This type of filling connection has a 1/2" UNF (19mm) straight connection on the outlet (on the back) to which you can connect an LPG filling hose. As a rule, the inlet of a 4-hole LPG tank or a Gas bottle with a MultiValve, the same 1/2" UNF connection (on elbow on 80% filling valve or MultiValve), so that you can connect the other side of the filling hose to this.

In this way you can fill your LPG tank or gas bottle with LPG (Refueling)

Equipped with an internal non-return valve, so that the gas does not flow back from the filling hose.

Recessed Installation using a filling pot. This type of filling connection is equipped with a plastic filling pot that you can use to recess the filling connection into the bumper, for example. (Keep in mind the required space behind the bumper!). The advantage of this type of filling connection is that the bayonet nipple is fixed to the filling connection, but the whole is still nicely recessed.

NB! When placing a filling connection, take into account the available space behind the platform / bumper, so that you are sure that there is sufficient space for the filling connection and the filling hose. A flat filler and an angled filler require less space / depth behind the sheet metal. This may be a reason to choose an angled filler instead of a straight filler or a flat filler instead of a high filler.
