GOK Reducer Caramatic DriveOne CS 30 mbar 1.5 kg/h - 105° Shell W21,8 x 1/14LH

GOK Reducer Caramatic DriveOne CS 30 mbar 1.5 kg/h - 105° Shell W21,8 x 1/14LH

Drive safely while your gas heater is burning in your camper or caravan. This is possible thanks to the crash sensor on the output of this pressure regulator. In the event of a shock/collision, the gas flow will automatically be closed.

Do you want to heat your motorhome or caravan with the gas pressure regulator while driving? This is possible thanks to the Caramatic series from GOK including crash sensor. This safety device ensures that no gas escapes from the gas pipe in the event of an accident, for example.

Safety gas pressure control system for the operation of single cylinder / gas bottle systems in caravans and motor caravans while driving, consisting of:

Low pressure regulator with overpressure safety device S2SR (ÜDS),
Mechanical crash sensor and testing device

Advantages and equipment:
- Heating while driving thanks to integrated mechanical crash sensor, which is activated when
an accident with a delay acting directly on the release device of 3.5 g ± 0.5 g blocks the gas passage,
this corresponds to a medium Vehicle weight of an impact speed of approx. 15 to 20 km/h on a fixed Obstacle
- Europe-wide use through the use of country-specific high pressure Hose lines - Caramatic ConnectDrive (not included)
- Test device for leak testing of the liquid gas system without dismantling the pressure regulating device
- Suitable for the connection of an Eis-Ex
- Version with output connection RVS 10 / 8 is equipped as standard with a transition piece equipped for connection to 8 mm pipes

Conformity: EC type examination according to GAR



Inlet: Shell Kombi Hard W21,8 x 1/14LH
Outlet: RVS 10 / 8 mm
Outlet pressure: 30 mbar
Capacity: 1,5 kg/h

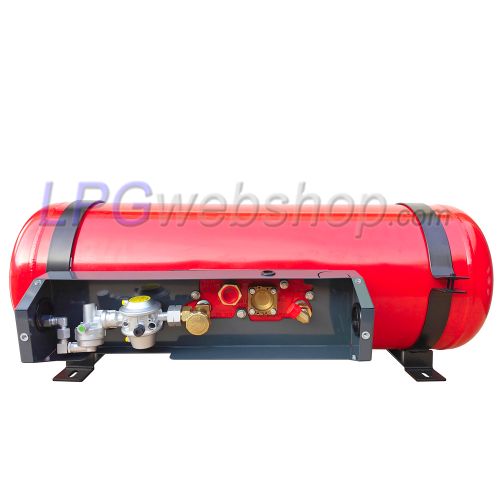

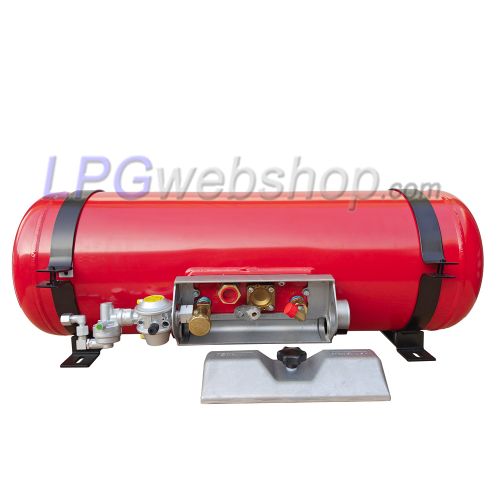

Installation position: 105° Directly mounted on a manual tap of a vapor tank
Crash sensor for gas use while driving: included
Maximum allowable pressure: PS 16 bar
