 | LPG filling hose bracket 18-21.5mm Steel with rubber protection | +€1.20 |
Expansion set for connecting a 2nd LPG tank or gas bottle with 1/2" UNF connection
Expansion set for connecting a 2nd LPG tank or gas bottle with 1/2" UNF connection
This extension set consists of an LPG filling hose with a straight and an angled 1/2" UNF coupling (choose the desired length) + a T-piece with 3x 1/2" UNF coupling (2x Male +1x Female)
Application: This set can be used to expand an LPG filling set or an existing filling connection with filling hose, and is used to fill a second gas tank at the same time. It is suitable for a LPG gas bottle or LPG tank (vapour gas tank) that is equipped with a 1/2" UNF filling connection.
Connection: You can basically connect the set in 2 ways;
1) Connect the T-piece with the union nut directly to the back of the external filling connection, creating two connections to connect two filling hoses. The first filling hose (from the filling set or the one you already had) to the first gas tank or gas bottle. And a second filling hose (from this extension set) to the second gas tank or gas bottle.
2) Place the T-piece with the union nut on the inlet of gas tank 1 (if there is space for it). Make a connection between the external filling connection and the T-piece on tank 1 using the first filling hose (from the filling set or the one you already had). Use the second filling hose to make a connection between the second connection on the T-piece and the second gas tank or gas bottle.
NOTE! First check very carefully which type of LPG filling hose and what length you need and what fits in your application. Any return costs are at your own expense.
Choose the desired length
This extension set consists of an LPG filling hose with a straight and an angled 1/2" UNF coupling (choose the desired length) + a T-piece with 3x 1/2" UNF coupling (2x Male +1x Female)
Application: This set can be used to expand an LPG filling set or an existing filling connection with filling hose, and is used to fill a second gas tank at the same time. It is suitable for a LPG gas bottle or LPG tank (vapour gas tank) that is equipped with a 1/2" UNF filling connection.
Connection: You can basically connect the set in 2 ways;
1) Connect the T-piece with the union nut directly to the back of the external filling connection, creating two connections to connect two filling hoses. The first filling hose (from the filling set or the one you already had) to the first gas tank or gas bottle. And a second filling hose (from this extension set) to the second gas tank or gas bottle.
2) Place the T-piece with the union nut on the inlet of gas tank 1 (if there is space for it). Make a connection between the external filling connection and the T-piece on tank 1 using the first filling hose (from the filling set or the one you already had). Use the second filling hose to make a connection between the second connection on the T-piece and the second gas tank or gas bottle.
NOTE! First check very carefully which type of LPG filling hose and what length you need and what fits in your application. Any return costs are at your own expense.
Choose the desired length
€32.68 tax incl.
€40.85
Save 20%Foreign companies with a valid VAT number shop VAT-free here! READ HOW.
Optional products
Safe & TrustedWebshop Trustmark Certified Member & Secured by SSL. Your data and orders are safe here.
Delivery policySafe and Secure Shipping with DPD or DHL
Refund policyPolítica de reembolso de 14 días y derecho de devolución
This extension set consists of an LPG filling hose with a straight and an angled 1/2" UNF coupling (choose the desired length) + a T-piece with 3x 1/2" UNF coupling (2x Male +1x Female)

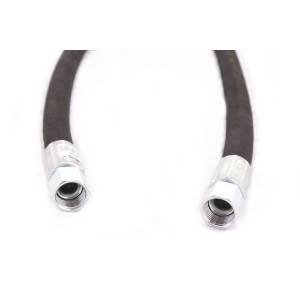

1x LPG filling hose in length (0.5m - 3.5m)
Application : For filling an LPG tank or gas bottle (with 1/2"UNF connection). Creates a filling connection between an LPG filling connection and an LPG tank.
Standard LPG filling hose with 1x Straight and 1x Angled 1/2" UNF coupling to fill the LPG tank via an external filler. This filling hose fits every LPG tank (LPG gas bottle) with a 1/2" UNF connection.
Approval: ECE R67-01
Length: This is a choice option
Input connection: 1/2UNF - 3/4-16 SAE 45°Flare Female (19mm) Straight
Output Connection: 1/2"UNF - 3/4"-16 SAE 45°Flare Female (19mm) Right Angle
Inner diameter: Ø12.5mm
Outer diameter: Ø19mm
Pressure class: 67R-01 Class 1 (max. 30 bar)
Wrench size: 22mm
1x T-Piece with 3x 1/2" UNF
Intended to fill two tanks at the same time.
You can connect this type of T-piece with the swivel to a tank with an 80% filler and knee connection. You can then connect two more filling hoses; 1 incoming (coming from the filling connection) and one outgoing for a filling hose to a second tank.
Type: T-Piece with 3x 1/2" UNF Coupling: 2x External thread + 1x Flare Nut with internal thread on side arm.
Can be used to fill 2x LPG tanks / Gas bottles at the same time.
Can be combined with:
- LPG filling hose / LPG filling line with 1/2" UNF couplings
- LPG tanks (4-hole) and Gas bottles with elbow and 1/2 "UNF connection
- External filling connections with a 1/2"UNF connection at the rear
Inner diameter: Ø10mm
Spanner size: 22mm
Coupling & Thread: 1/2UNF - 3/4-16 SAE 45°Flare Male (19mm)
Output Connection: 1/2"UNF - 3/4"-16 SAE 45°Flare Female (19mm)
Input Connector: 1/2UNF - 3/4-16 SAE 45°Flare Male (19mm)
Pressure class: Up to 30 bar
Material: Steel
