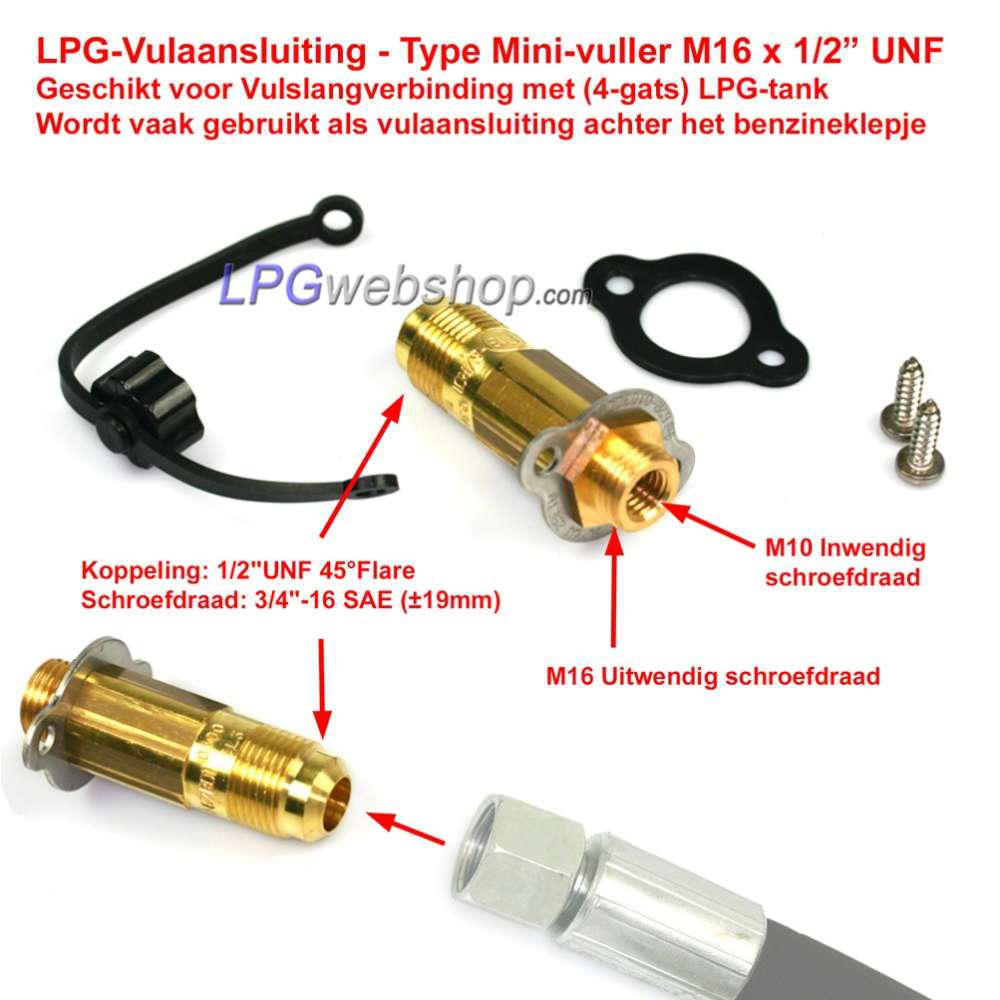

LPG filling connection Mini-filler M16 x 1/2"UNF (19 mm) for LPG filling hose and 4-hole LPG tank

LPG filling connection Mini-filler M16 x 1/2"UNF (19 mm) for LPG filling hose and 4-hole LPG tank

Compact filling connection which makes it possible to place it in a limited space, such as behind the petrol flap. Connect the outer filling connection with an LPG filling hose or filling pipe to your LPG Tank or Gas Bottle to be able to fill it with LPG.

This type of filling connection has a 1/2" UNF (Flare connection) (19mm) straight connection on the outlet (on the back) to which you can connect an LPG filling hose. As a rule, the inlet of a 4 -hole LPG tank or a gas bottle with a MultiValve, such a similar 1/2" UNF connection (on elbow on 80% filling valve or MultiValve), so that you can connect the other side of the filling hose to this.

In this way you can fill your LPG tank or gas bottle with LPG (Refueling)

Equipped with an internal non-return valve, so that the gas does not flow back from the filling hose.

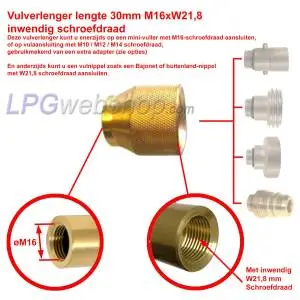

This type of outer filler is called a "mini filler" because it is small and compact and does not have a fixed integrated filler nipple. Due to its small dimensions, you can place this type of filling connection behind the fuel flap, for example. To refuel it is necessary to screw a filling nipple onto the filling connection (with M16 internal thread).

NB! When placing a filling connection, take into account the available space behind the filling connection, so that you are sure that there is sufficient space for the filling connection and the filling hose.
