LPG Tank Installation Kit - Tank mounting material - for Cylinder tanks until 85L

201002385

Use this set to mount your cylinder tank or vapor gas tank (cylinder) with a diameter of minimum 27cm and maximum 40cm.
The set comes standard with a tank frame + 2 tank straps, insulation strip, bolts and nuts, a filling connection , a filling hose , a breather hose and bottom breather and various fasteners.

TYPE : Rear set (Tank mounting material) for Cylinder tank or Vapor gas tank (cylinder)

Only suitable for LPG Cylinder tank

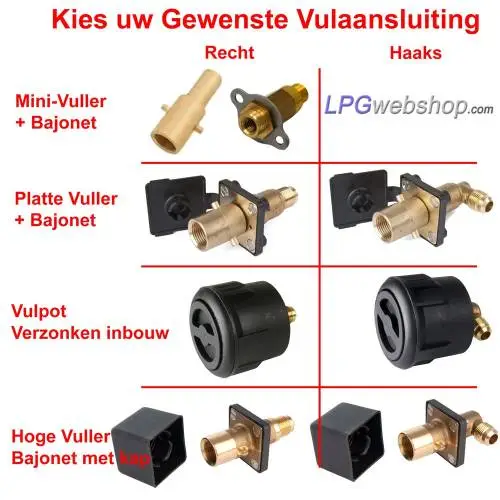

Specify for which Type: Filling point, Filling adapters and Filling hose.
Choose your desired filling hose length: from 0.50m - 3.50m

Product customization

Don't forget to save your customization to be able to add to cart
  • 250 char. max
  • 250 char. max
  • 250 char. max
  • 250 char. max
€114.82 tax incl.
€143.52
Save 20%

Foreign companies with a valid VAT number shop VAT-free here! READ HOW.

- Delivery: 1-4 days
Filling Hose Length
Quantity
IN STOCK
  Safe Webshop

Webshop Trustmark & Secured by SSL. Your data and orders are safe here.

  Delivery policy

Safe and Secure Shipping with DPD or DHL

  Refund policy

Política de reembolso de 14 días y derecho de devolución

LPG Tank Installation Kit - Tank mounting material - for Cylinder tanks until 85L

You can order this tank installation set in combination with a matching cylinder tank for mounting your LPG tank or vapor gas cylinder tank (max. 85L) (with a diameter of minimum 27cm and maximum 40cm). (For larger cylinder tanks see the larger associated tank installation sets)

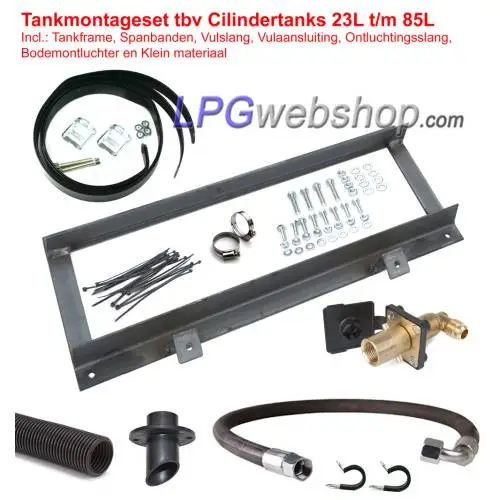

Set content:
- 1 x Tank frame + insulation strips (we supply a suitable frame for the LPG tank you ordered up to 85L)

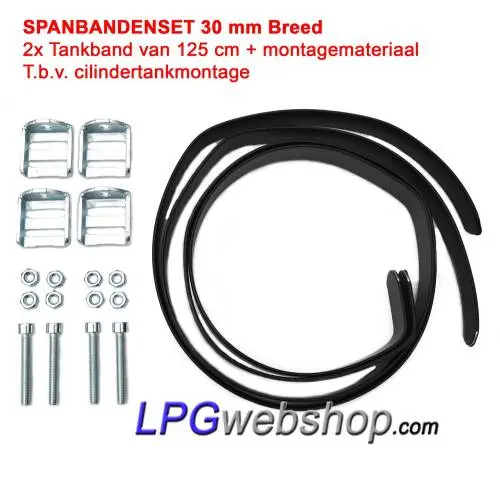

- 1 x Tension strap set (2x tension strap incl. mounting brackets and bolts)
- 1 x Filling connection (type of your choice. See options)
- 1 x Filling hose (Desired filling hose length optionsl)
- Filling hose clamps for fixing your filling hose
- Mounting material Bolts, nuts, self-tapping screws, hose clamps
- 1 x Ventilation hose To be connected to the tank box of the LPG tank (LPG built-in)
- 1 x Bottom air vent To connect the vent hose and to be able to carry the gases out through the bottom.

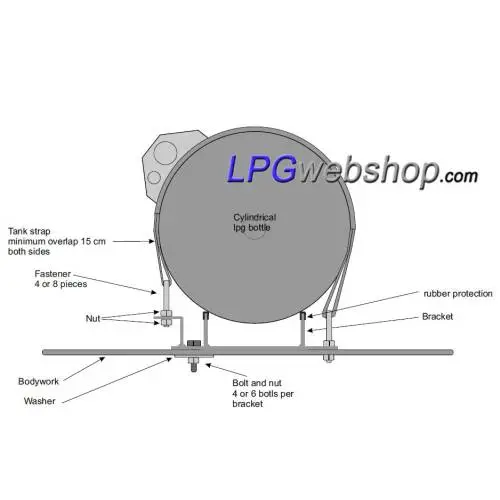

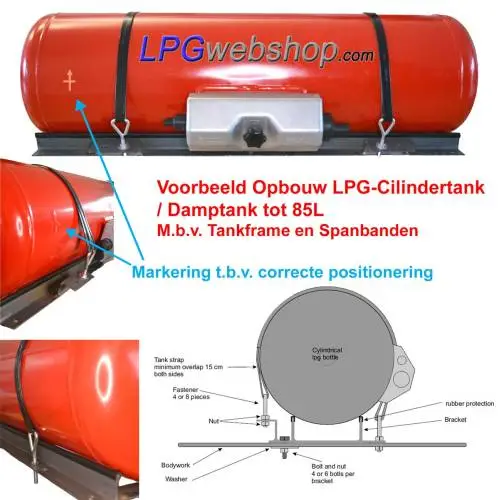

Application: A tank frame is used in combination with lashing straps (tank straps) to attach an LPG cylinder tank (LPG vapor tank) with a tank diameter of 270 mm and up to 400 mm. The weld seams of the tank must fall within the length of the tank frame. As an indicative rule, you can determine the length between the weld seams by subtracting 10 cm from the total tank length.

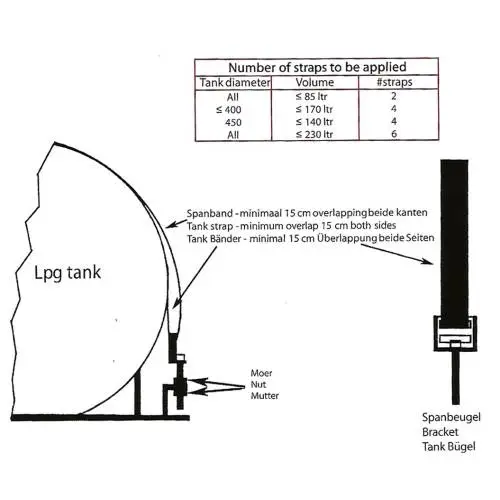

The correct number of tank straps and mounting bolts to use depends, among other things, on the tank capacity and the position of the LPG tank. Consult the national installation requirements (see the appendices tab on this page).
Coating: The tank frame is untreated. We recommend that the tank frame be provided with a protective anti-rust coating after any adjustments, such as the installation of additional mounting holes, mounting brackets and/or a bulkhead.

Gebruik een kopschot bij de inde lengterichting geplaatste tank

Complete Tank mounting Kits including refilling hose and filling point

To simplify the ordering process, we have already created a number of standard tank mounting sets complete with filling connection, filling hose and breather hose.

201002385

Data sheet

Note:
Only supplied in combination with a matching tank
Downloads:
Manuals and Documentation - See the tab Attachments on this page.
Related Products:
See bottom of this page
Shipping Cost:
Is calculated in the Checkout and is visible there. (Depends on total weight, destination and discounts.)
