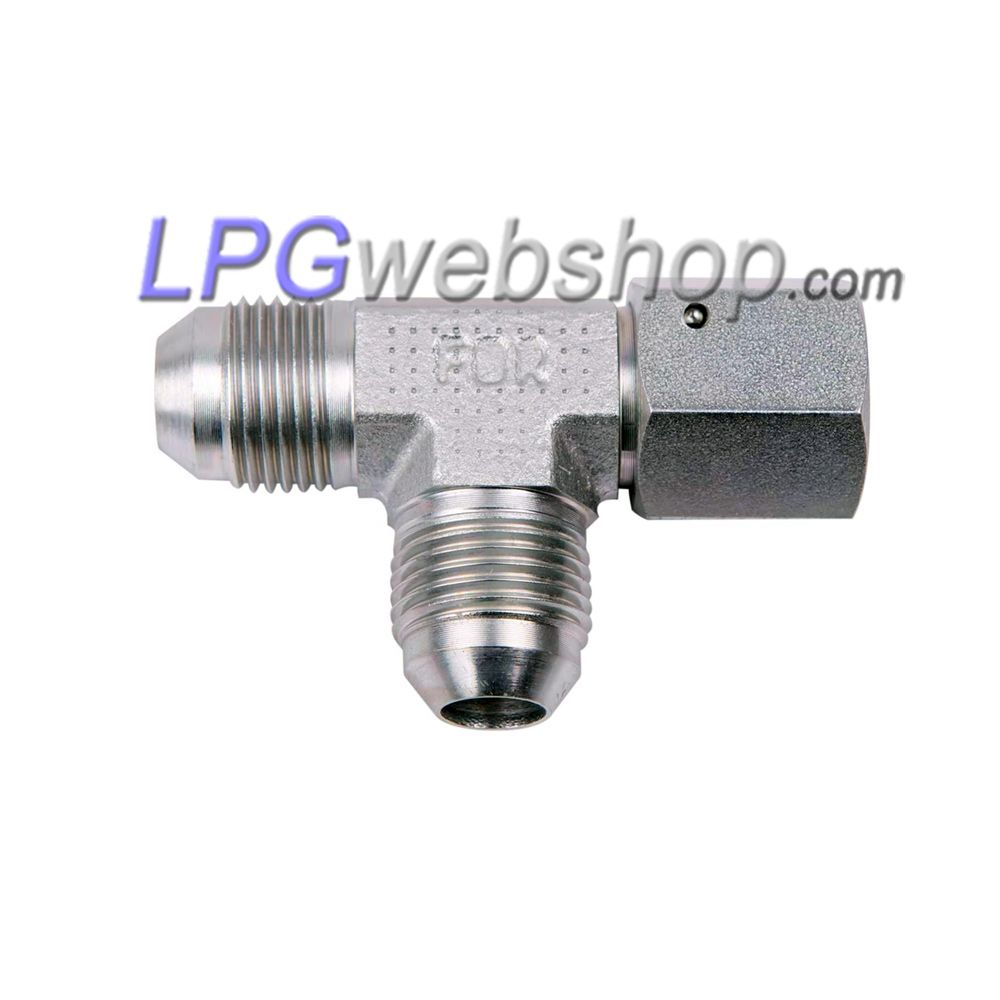

T-Piece 3x 1/2"UNF 2x Outer Thread + 1x Flare-Nut on the side for LPG Filling Hose
T-Piece 3x 1/2"UNF 2x Outer Thread + 1x Flare-Nut on the side for LPG Filling Hose

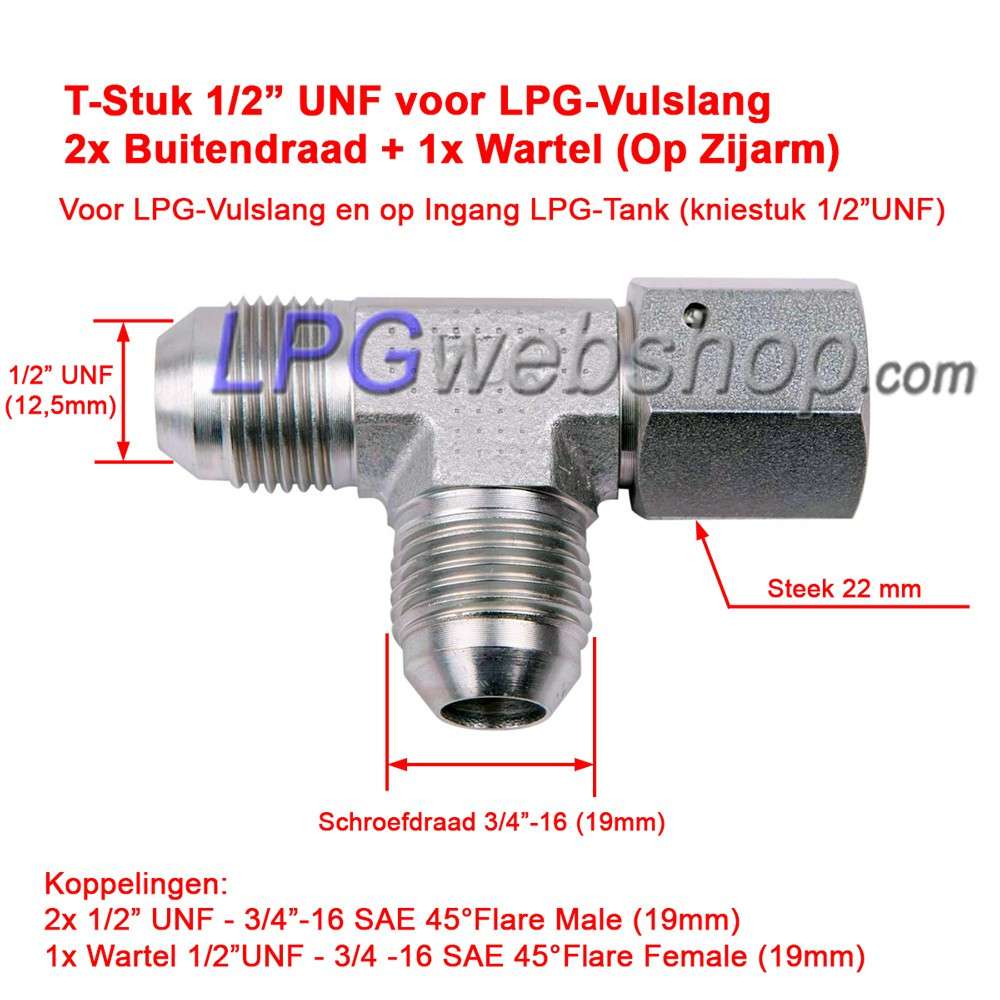

Inner diameter: Ø10mm
Spanner size: 22mm
Coupling & Thread: 1/2UNF - 3/4-16 SAE 45°Flare Male (19mm)
Output Connection: 1/2"UNF - 3/4"-16 SAE 45°Flare Female (19mm)
Input Connector: 1/2UNF - 3/4-16 SAE 45°Flare Male (19mm)
Pressure class: Up to 30 bar
Material: Steel
T-Piece with 3x 1/2" UNF Coupling: 2x External thread + 1x Flare Nut with internal thread on side arm.
G-688
Inner diameter: Ø10mm
Spanner size: 22mm
Coupling & Thread: 1/2UNF - 3/4-16 SAE 45°Flare Male (19mm)
Output Connection: 1/2"UNF - 3/4"-16 SAE 45°Flare Female (19mm)
Input Connector: 1/2UNF - 3/4-16 SAE 45°Flare Male (19mm)
Pressure class: Up to 30 bar
Material: Steel
T-Piece with 3x 1/2" UNF Coupling: 2x External thread + 1x Flare Nut with internal thread on side arm.
€17.99 tax incl.
€19.99
Save 10%Foreign companies with a valid VAT number shop VAT-free here! READ HOW.
Safe & TrustedWebshop Trustmark Certified Member & Secured by SSL. Your data and orders are safe here.
Delivery policySafe and Secure Shipping with DPD or DHL
Refund policyPolítica de reembolso de 14 días y derecho de devolución
T-Piece 3x 1/2"UNF 2x Outer Thread 1x Flare Nut on the side for LPG Filling Hose
Intended to fill two tanks at the same time.
You can connect this type of T-piece with the swivel to a tank with an 80% filler and knee connection. You can then connect two more filling hoses; 1 incoming (coming from the filling connection) and one outgoing for a filling hose to a second tank.
Type: T-Piece with 3x 1/2" UNF Coupling: 2x External thread + 1x Flare Nut with internal thread on side arm.
Can be used to fill 2x LPG tanks / Gas bottles at the same time.
Can be combined with:
- LPG filling hose / LPG filling line with 1/2" UNF couplings
- LPG tanks (4-hole) and Gas bottles with elbow and 1/2 "UNF connection
- External filling connections with a 1/2"UNF connection at the rear
G-688
