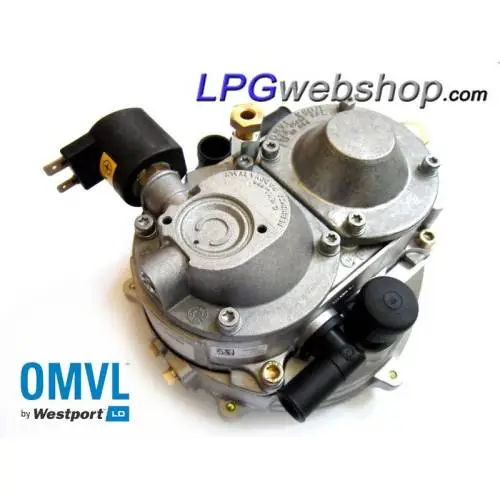

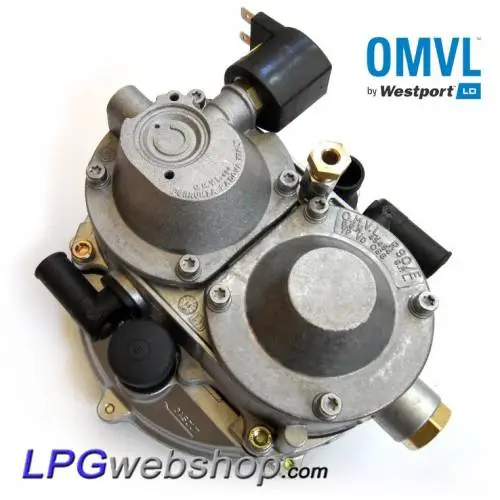

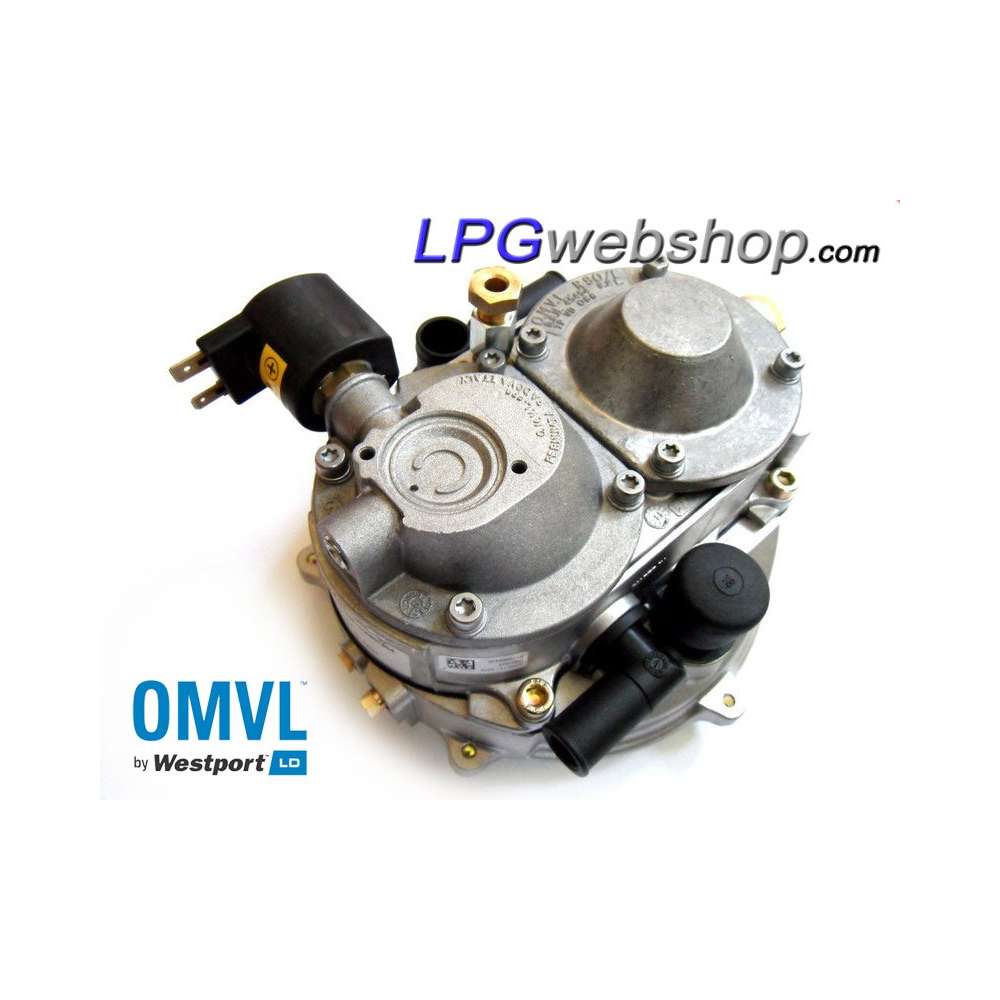

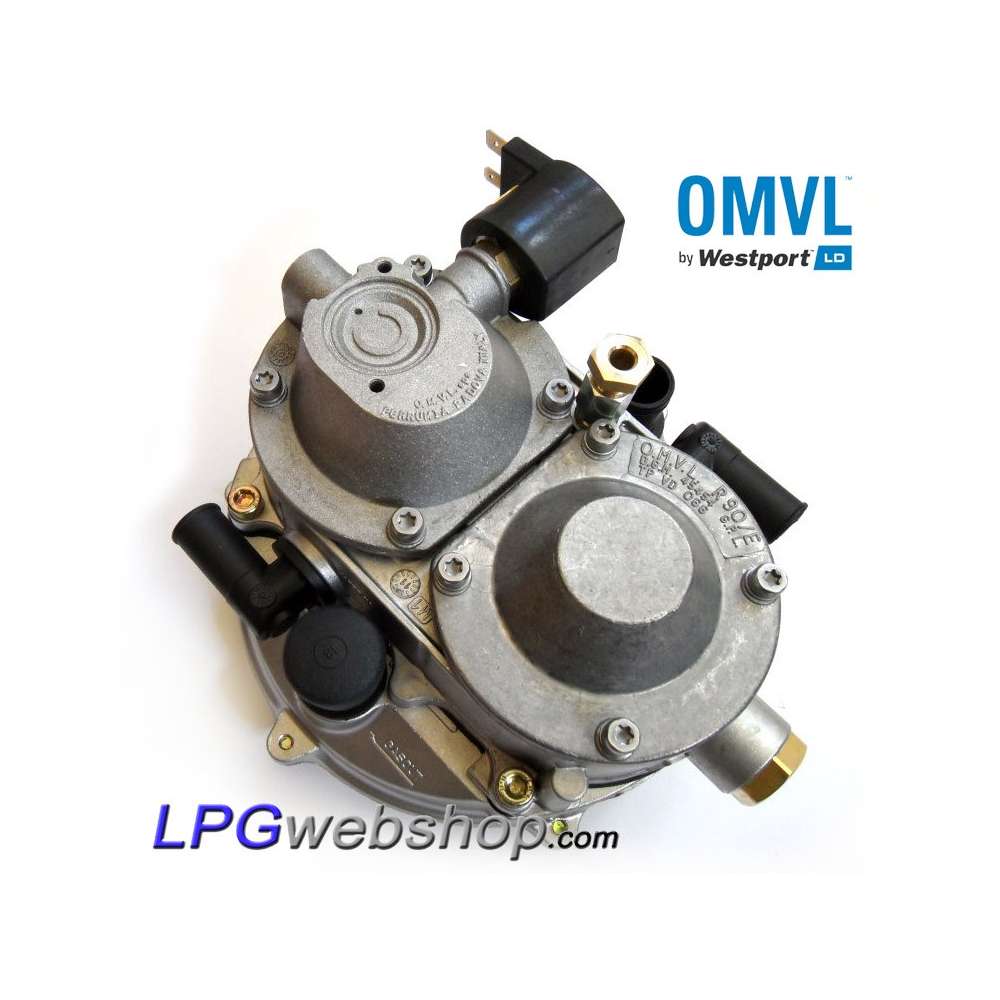

LPG Reducer OMVL R90/E Super D8 Code: K901504

  • OUT OF STOCK
OMVL Reducers
251004500

Brand: OMVL
Manufacturer code: K901504
Model number: K901504-Super D8
Approval number: E8 67R011618

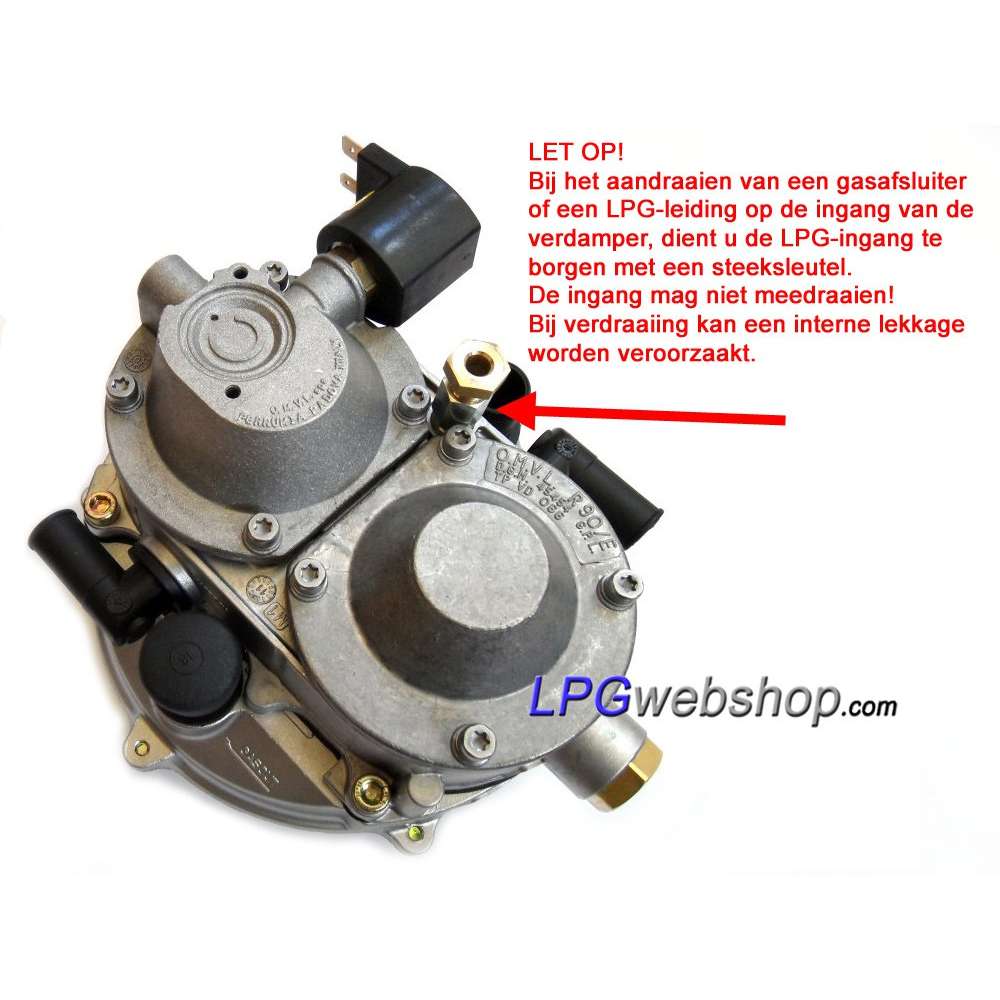

Input connection: Ø6mm Compression (M10x1)
Outlet connection: Ø19mm Hose barb
Water connections: Ø16mm
Power: up to 250 kW (340 HP) Engine power
Gas valve: Not included
Pressure class: 67R-01 Class 1 (max. 30 bar)
Material: Aluminium

(NO LONGER AVAILABLE)

ALTERNATE PRODUCT : LOVATO RGE140

€210.76
Quantity
OUT OF STOCK
  Safe Webshop

Webshop Trustmark & Secured by SSL. Your data and orders are safe here.

  Delivery policy

Safe and Secure Shipping with DPD or DHL

  Refund policy

Política de reembolso de 14 días y derecho de devolución

LPG Reducer OMVL R90/E Super D8 Code: K901504

THIS PRODUCT IS NO LONGER AVAILABLE AND IS OUT OF PRODUCTION.

ALTERNATE PRODUCT : LOVATO RGE140

LPG Reducer OMVL R90E Super for traditional gas systems with high power.
For engines larger than 3.0 liters (For smaller engines we recommend the OMVL R90 D5 Normal)
- OMVL Millenium or similar systems.
- Widely used on classic Mercedes Benz and other classics
- For engines up to a maximum of approximately 250 kW

NOT SUITABLE FOR LPG INJECTION!

IMPORTANT: The operation of the evaporator depends on the mixing piece/mixer and correct adjustment of the adjustment screws, so that the evaporator is properly adjusted to the suction power of the mixing piece and the consumption of the motor.

How do you properly adjust the OMVL R90e Reducer?
In a Nutshell: Let it idle on the gas bypass only (By-pass). Then close the gas circulation a little, so that the engine gets a leaner mixture at idle. (the engine starts to run less smoothly). And then adjust the mixture again via the second adjustment screw (Membrane / spring tension), so that the valve of the end stage starts to open. Idle: 80-90% on gas bypass and the rest of the gas through the tilting valve.

The following assembly error is regularly made:
The mounting bolt (of the mounting bracket) extends too far through the rear cover into the evaporator and comes into contact with the membrane, thereby continuously pushing the valve open. Adjusting with the adjustment screws then has little or no effect.

Approval: E8 67R011618 (PLEASE NOTE! This is an approval number and may be valid for a series of products / family. This is therefore NOT a type number!!! Check carefully the Model code / Type number / Size of the desired product.)

251004500

Data sheet

LPG Shut-off Valve:
Exclusief gasafsluiter op LPG-ingang
Right of Withdrawal
When connecting (Electric, Gas or coolant) to this product, the right of withdrawal expires.
Downloads:
Manuals and Documentation - See the tab Attachments on this page.
Related Products:
See bottom of this page
Shipping Cost:
Is calculated in the Checkout and is visible there. (Depends on total weight, destination and discounts.)
New

Download

Traditional LPG System

How does a traditional LPG system work? And how to adjust it well?

Download (667.54KB)

Afstelprocedure OMVL R90

Afstelprocedure OMVL R90 Vogels

Download (91.25KB)

OMVL R90 Manual

OMVL R90 User and Maintenance Manual

Download (466.5KB)
