Complete Repair kit OMVL R90 E LPG reducer (Normal and Super)

-40%

Category: OMVL Reducers

Reference: 255003500

Original OMVL Revision Kit for OMVL R90e D5 + D8
Code: OMVL 900035 - Cod. E02024505
Contents:
- 1x main diaphragm output stage
- 1x Membrane 1st stage
- 1x Membrane 2nd stage
- 1x Stabilization plate
- All O-rings (11 pieces)
- 2x Throttle rubber
- 1x Metal valve construction

Complete Original OMVL Repair Kit suitable for OMVL R90e Reducer in the Normal D5 and Super D8 variants.

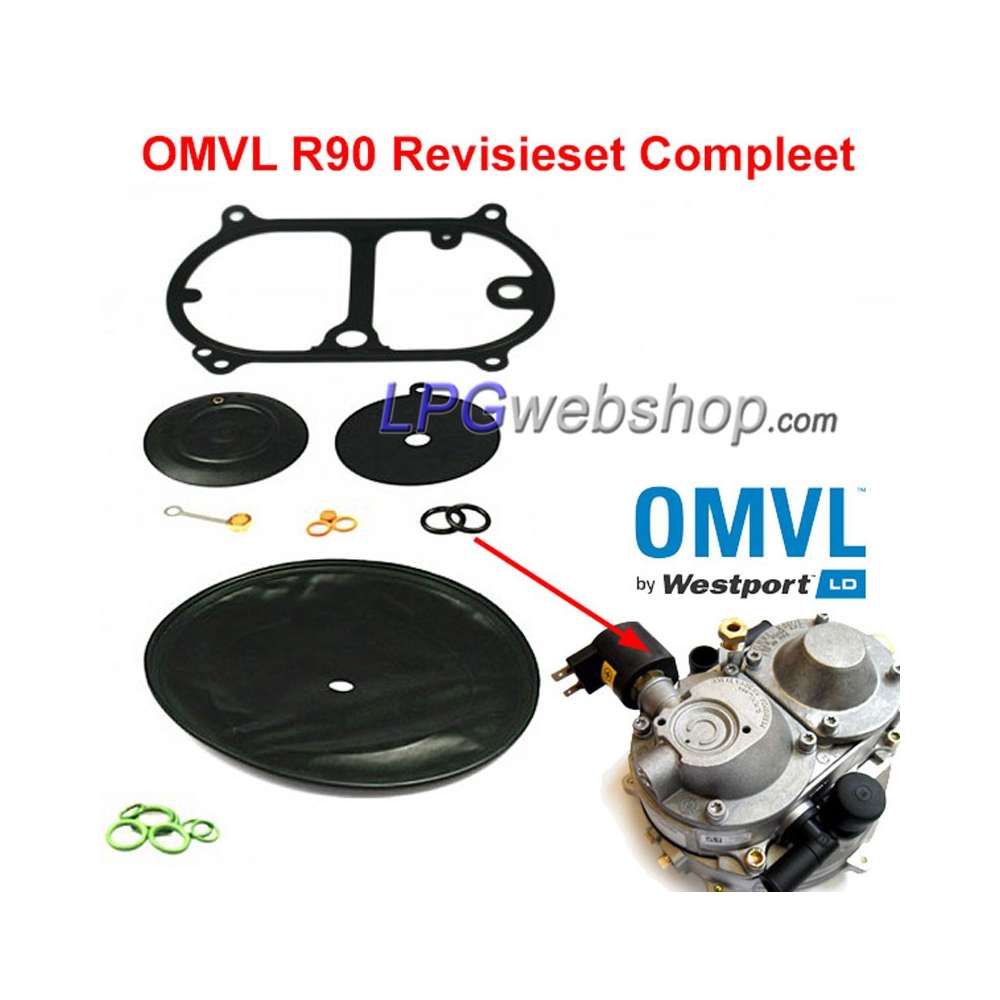

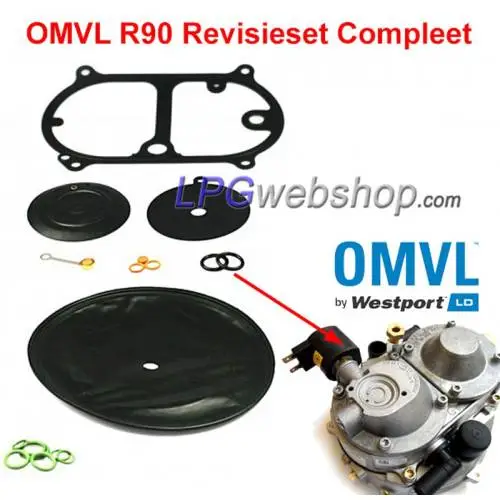

Complete with all diaphragms, O-rings and valve seats. (see image).

€29.40 tax incl.

€49.00

Save 40%

Foreign companies with a valid VAT number shop VAT-free here! READ HOW.

- Delivery: 1-4 days

Safe & Trusted

Webshop Trustmark Certified Member & Secured by SSL. Your data and orders are safe here.

Delivery policy

Safe and Secure Shipping with DPD or DHL

Refund policy

Política de reembolso de 14 días y derecho de devolución

Complete Repair kit OMVL R90 E LPG reducer (Normal and Super)

Application: Revision kit (Repair Kit) for the OMVL R90e reducer type Normal D5 and Super D8. Often used on European classics such as Mercedes-Benz, Saab, Volvo, Citroen, etc. with a traditional gas system.

IMPORTANT: Reducer operation is dependent on the agitator/mixer and proper adjustment of the adjusting screws to properly adjust the reducer for the agitator suction and motor consumption.

How do you properly adjust the OMVL R90e Reducer?
In a Nutshell: Idling on the gas bypass only (By-pass). Then turn off the throttle a bit, so that the engine gets a leaner mixture at idle. (the engine starts to run less smoothly). And then adjust the mixture again via the second adjustment screw (diaphragm / spring tension), so that the valve of the final stage starts to open. Idle: 80-90% on gas bypass and the rest of the throttle through the tilt valve.

NB!
The following assembly error is regularly made:

The mounting bolt (of the mounting bracket) protrudes too far through the back cover into the evaporator and hits the diaphragm, pushing the valve open continuously. Adjusting with the adjusting screws then has little or no effect.
