LPG Reducer OMVL R90e D5 Normal Code: K901501

LPG Reducer OMVL R90/E Normal D5 Code: K901501

THIS PRODUCT IS NO LONGER AVAILABLE AND IS OUT OF PRODUCTION.

ALTERNATE PRODUCT : LOVATO RGE090

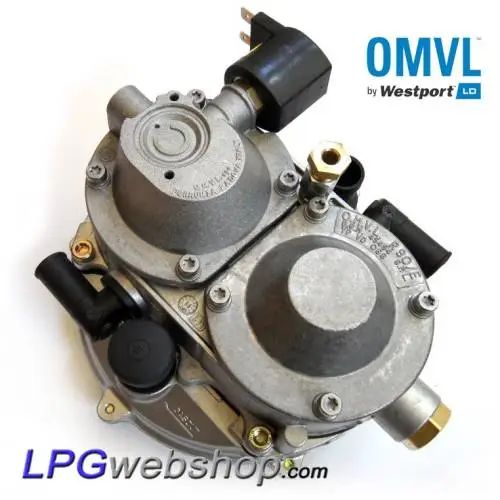

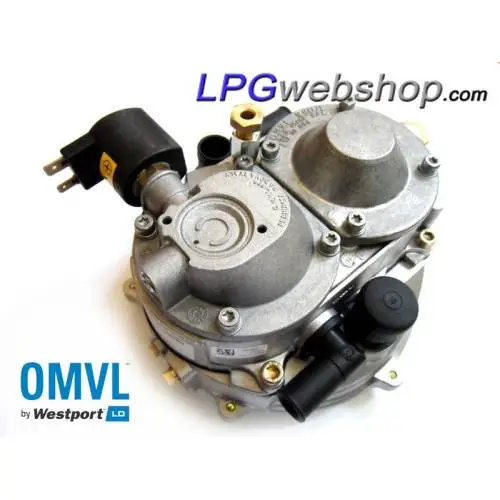

LPG Reducer OMVL R90E Normal for traditional gas systems. For engines up to about 3.0 Liter (up to about 180kW / 245 HP). The Reducer is equipped with a solenoid valve between the first and second stage and two integrated adjusting screws (1x for the gas bypass (By-pass) and 1x for the spring pressure on the output stage (IDLE)). Thanks to its sensitivity membrane and its reliability, the vaporizer guarantees perfect driving pleasure.

Application: OMVL R90e evaporator type Normal D5. Often used on European classics such as Mercedes-Benz, Saab, Volvo, Citroen, etc. with a traditional gas system.

- OMVL Millenium and similar LPG systems Up to about 180kW / 245 HP

NOT SUITABLE FOR LPG INJECTION!

IMPORTANT: The operation of the evaporator depends on the mixing piece/mixer and correct adjustment of the adjustment screws, so that the evaporator is properly adjusted to the suction power of the mixing piece and the consumption of the motor.

How do you properly adjust the OMVL R90e Reducer?
In a Nutshell: Let it idle on the gas bypass only (By-pass). Then close the gas circulation a little, so that the engine gets a leaner mixture at idle. (the engine starts to run less smoothly). And then adjust the mixture again via the second adjustment screw (Membrane / spring tension), so that the valve of the end stage starts to open. Idle: 80-90% on gas bypass and the rest of the gas through the tilting valve.

The following assembly error is regularly made:
The mounting bolt (of the mounting bracket) extends too far through the rear cover into the evaporator and comes into contact with the membrane, thereby continuously pushing the valve open. Adjusting with the adjustment screws then has little or no effect.

Approval: E8 67R011618 (PLEASE NOTE! This is an approval number and may be valid for a series of products / family. This is therefore NOT a type number!!! Check carefully the Model code / Type number / Size of the desired product.)
