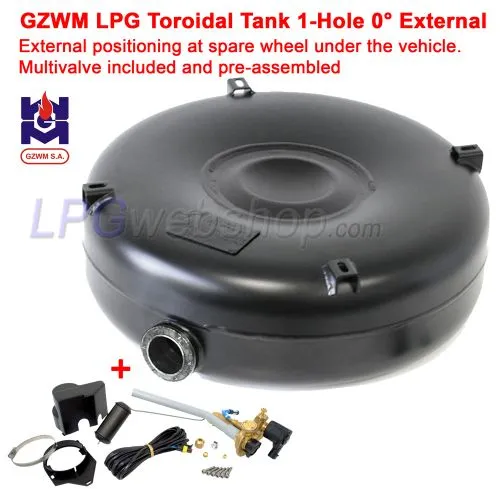

LPG Toroidal Tank 84L (Ø720x250) GZWM 1-Hole 0° External incl. Multivalve

352633310
Type: GZWM ZTP720/250 - 1-Hole Toroidal LPG-Tank 0° External
MultiValve Included: Tomasetto AT02 EXTRA E8 67R010318 - Pre-assembled on the tank
Approval number: E20 67R-01 0788
Tank Capacity: Gross 84 Liter (80%=67.2 Liter)
Dimensions: Ø720 mm x Height: 250 mm
Gross Empty Weight: 39 kg
Pressure class: 67R-01 Class 1 (max. 30 bar)
Mounting points: By fixation brackets and M8 Bolts through body work
Gas extraction connection (Output) with internal M12x1 thread: Included 2x fitting suitable for 8mm or 6mm LPG pipe
Tank position: Horizontal

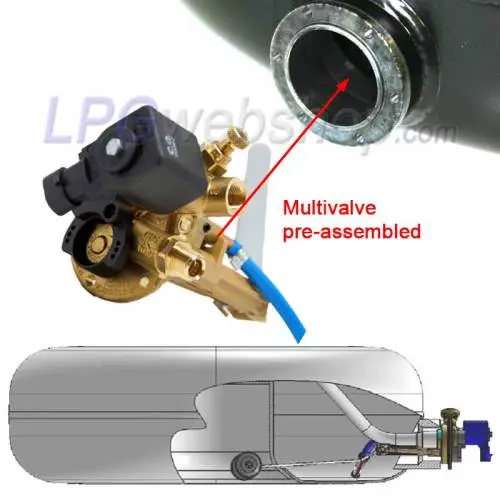

Incl. Multivalve already pre-assembled on tank. Suitable for cars with the spare wheel hanging under the vehicle.
€354.60
€394.00
Save 10%
- Delivery: 1-4 days
Quantity
IN STOCK
  Safe Webshop

Webshop Trustmark & Secured by SSL. Your data and orders are safe here.

  Delivery policy

Safe and Secure Shipping with DPD or DHL

  Refund policy

Política de reembolso de 14 días y derecho de devolución

LPG Toroidal Tank 84 Liter (Ø720x250) GZWM 1-Hole 0° External incl. Multivalve already pre-assembled on tank. Suitable for cars with the spare wheel hanging under the vehicle.

Application: This type of LPG tank releases liquid LPG that is used as a car fuel. Suitable for internal installation in a horizontal position at the location of the spare wheel (in the trunk) and for most LPG systems such as: Landi Renzo, Vogels VGI, Eurogas, Prins VSI, BRC, Romano, Tartarini, AEB, etc.
This type of tank is NOT suitable for LPG substructure in case the spare wheel is placed under the car.
A MultiValve is a unit that is placed on a 1-hole LPG tank to control the following aspects: 80% filling, Level measurement, Pressure relief valve, Elec. take-off tap. We supply the LPG tank with MultiValve. The filling inlet of the MultiValve has a Ø8mm compression connection.

352633310

Data sheet

Characteristic:
Multivale Internally at 30 Degrees in central part
Attention!
It is mandatory to have this product installed by an expert. Our company disclaims all liability in the event of an accident.
LPG Pump:
Suitable for most LPG-systems: Landi Renzo, Vogels VGI, Eurogas, Prins VSI, BRC, Romano, Tartarini, AEB, Etc. -This type of LPG Tank has NO LPG Pump. Not suitable for Vialle.
Right of Withdrawal
When connecting (Electric, Gas or coolant) to this product, the right of withdrawal expires.
Downloads:
Manuals and Documentation - See the tab Attachments on this page.
Related Products:
See bottom of this page
Shipping Cost:
Is calculated in the Checkout and is visible there. (Depends on total weight, destination and discounts.)
Application:
Suitable for internal installation in trunk (Horizontally). Not suitable for underneath the car.
Tank Capacity:
81 - 90L
Diameter Toroidal Tank:
720mm
Height Toroidal Tank:
250mm

Download

LPG Tank Install. Instructions

LPG Tank Installation Instructions

Download (2.59MB)

Install. Instructions MultiValve

Installation Instructions MultiValve Landi Renzo

Download (265.95KB)

Install. Manual Multivalve

Installation Manual MultiValve Tomasetto

Download (2.92MB)

Approval GZWM ZTP-250-720

Approval GZWM ZTP-250-720 Toroidal Tank Ext

Download (1.43MB)
