22L Campko Steel LPG Gas Bottle with MultiValve Refillable up to 80%

The gas bottle is made of a very strong material that can withstand very high pressures. Thanks to the MultiValve (gas tap) with internal float, the filling level is limited to 80%. The integrated pressure relief valve ensures that the pressure in the gas bottle can never exceed 27 bar.

Very safe due to the following facilities:
- 80% filling limiter with non-return valve
- Pressure relief valve 26-27 bar
- Antistatic so no electrical discharges
- Outflow restriction

These facilities together guarantee the safety of the gas bottle, making a refillable Multivalve gas bottle much safer than a regular non-refillable gas bottle.

Tests have shown that when the gas cylinder is placed in a fire, it begins to discharge and gradually releases the gas. The gas cylinder will not explode.

Where can I refill my Gas Bottle? For example in the Netherlands, gas bottles may not be filled directly onto the bottle at the pump.

A gas bottle must be equipped with an 80% filling limiter, be properly secured in the vehicle and have an external filling connection.

Filling may be only permitted at and by authorized filling stations. This depends on national regulations.

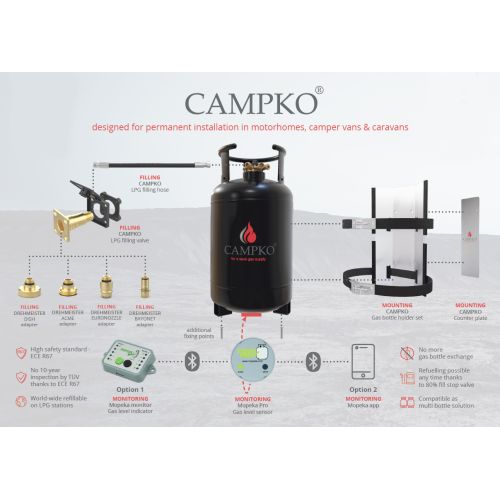

You can choose to optionally order a direct filling adapter (+filling nozzle) or a filling set with outer filler with this gas bottle, which makes it possible to connect the LPG gas bottle to an LPG filling station.

Direct Filling adapter with on the one hand a 1/2" UNF connection for the filling inlet of the Multivalve and on the other hand with internal W21.8 thread for connecting filling nozzles of different types for different locations. This is a brass adapter that you can screw directly onto the gas bottle and on the other end of which there is a connection with an internal W21.8 thread. A foreign filling nozzle can be screwed on to this. (Order optionally)

Optional LPG filling set for gas cylinder with outer filler and 3m filling line
With this set you can fill the gas bottle without removing the tank from the vehicle. You can fill the tank using an external filling connection and a pipe. The filling set consists of a female 1/2" UNF coupling for the filling inlet of the gas bottle, which then connects to a thermoplastic pipe (3 m in the normal filling set and 4 m in the double filling set) that can be cut to length. the other end of the pipe connects to the external filling connection via a same 1/2" UNF coupling, which can be fixed in the bodywork or under the vehicle. This filling connection has an internal W21.8 thread into which a filling nozzle can be screwed, such as a bayonet (NL, UK, etc.) or another type of filling nozzle for other countries (optional).

Advantages of universal filling set:
- Very universally applicable and therefore always suitable for your camper or caravan
- More than sufficient pipe length that can be shortened as desired
- Filling connection recessed in sheet metal or under the vehicle
- Very high quality thanks to Automotive ECE 67R-01 certification
- Easy to install yourself
- Complete with pipe brackets to fix everything neatly

TIP! The thermoplastic pipe can be shortened to the desired length. Use a good, sharp hose cutter or a cutter for this. Cut the pipe neatly straight.

Additional Foreign Filling Nozzles: Do you also want to be able to fill in other countries where the bayonet connection is not used? Then we recommend that you order additional foreign filling nozzles. You can choose which one you want to add.
