LPG-Tank Cylindrical 85L (Ø360x936) GZWM 4-Hole incl. Tank Fittings

Cylinder Tanks
352206100
Type: GZWM ZC360/85P - 4-Hole incl. Tank Fittings
Approval: E20 67R-01 0612
Tank capacity: Gross 85 Liter (80%=68 Liter)
Dimensions: Ø360mm x Length: 936mm
Gross Weight Empty: 35 kg
Pressure class: 67R-01 Class 1 (max. 30 bar)
Mounting: By means off Tank Frame and Straps / Fixation Rings / Fixation Brackets

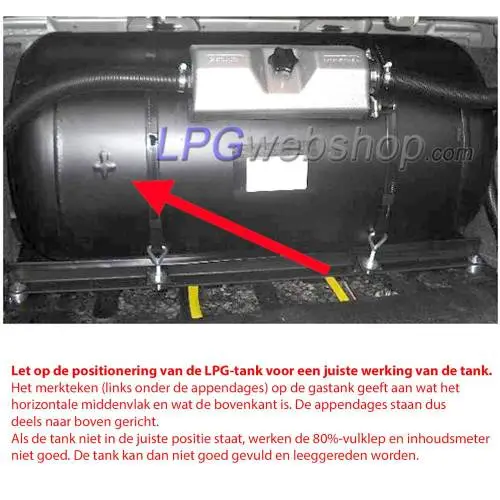

Tank position: Horizontal (with the mark in the correct position)

Choose: With or Without Gas Tight Housing

€310.34 tax incl.
€387.92
Save 20%

Foreign companies with a valid VAT number shop VAT-free here! READ HOW.

- Delivery: 1-4 days
Valve Box
Quantity
IN STOCK
  Safe Webshop

Webshop Trustmark & Secured by SSL. Your data and orders are safe here.

  Delivery policy

Safe and Secure Shipping with DPD or DHL

  Refund policy

Política de reembolso de 14 días y derecho de devolución

LPG Cylinder Tank 85 Liter (Ø360 x 936) 4-GZWM Hole type - including Tank Valves (Gas Tight Housing Optional)

This type of LPG tank releases liquid LPG which is used as car fuel. Suitable for built-in and substructure installation and for most LPG systems: Landi Renzo, Vogels VGI, Eurogas, Prins VSI, BRC, Romano, Tartarini, AEB, etc.
NB! This type of LPG Tank has NO LPG Pump and is NOT suitable for Vialle LPi.

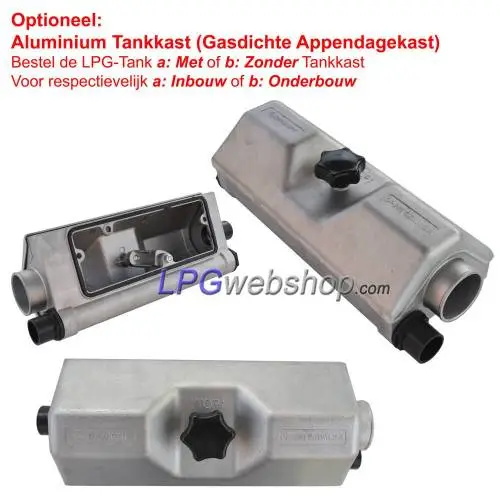

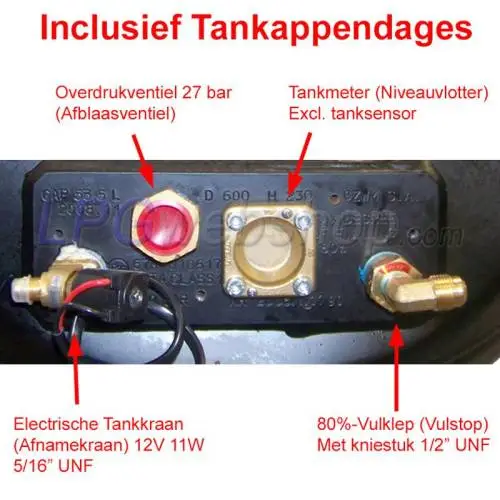

This LPG tank is equipped with 4 fittings; an 80% filling stop with non-return valve, an overpressure valve (blow-off valve), an electrical extraction valve and a level float meter. An optional gas tight housing (Tank box) encloses these fittings and can collect possible leaking gases.
A filling hose can be connected to the 80% filling valve with elbow, which is connected to a filling connection on the vehicle. The gas from the LPG tank is liquid must be evaporated and the pressure must be regulated by means of a evaporator.

Before ordering first check very carefully which type of LPG tank and which dimensions you need and what fits in your application. Exchanging an LPG tank is sometimes difficult, since the transport of heavy tanks is per pallet and is expensive. (Pick up may also be possible.)

Please study the information below well!

352206100

Data sheet

Attention!
It is mandatory to have this product installed by an expert. Our company disclaims all liability in the event of an accident.
Note:
Gas Tight Housing is necessary when tank is fitted inside the vehicle. It's not required when tank is fitted outside in the open air.
Recommendation:
If the tank is fitted underneath the car, apply an undercoating to protect the tank and have a longer lifespan.
LPG Pump:
Suitable for most LPG-systems: Landi Renzo, Vogels VGI, Eurogas, Prins VSI, BRC, Romano, Tartarini, AEB, Etc. -This type of LPG Tank has NO LPG Pump. Not suitable for Vialle.
Right of Withdrawal
When connecting (Electric, Gas or coolant) to this product, the right of withdrawal expires.
Downloads:
Manuals and Documentation - See the tab Attachments on this page.
Related Products:
See bottom of this page
Shipping Cost:
Is calculated in the Checkout and is visible there. (Depends on total weight, destination and discounts.)
Application:
Suitable for in and under the car
Diameter Cyl. Tank
36cm
Tank Capacity:
81 - 90L
Tank Length:
91 - 100cm

Download

LPG Tank Install. Instructions

LPG Tank Installation Instructions

Download (2.59MB)

GZWM Cyl. Tank 4-Hole ZC-360p

Approval GZWM LPG Cylinder Tank 4-Hole ZC-360p - E20 67R 01 0612

Download (1.86MB)

GZWM Gas Tight Housing OP-280

Approval GZWM Gas Tight Housing OP-280 - E20-67R-01-0711

Download (743.51KB)
