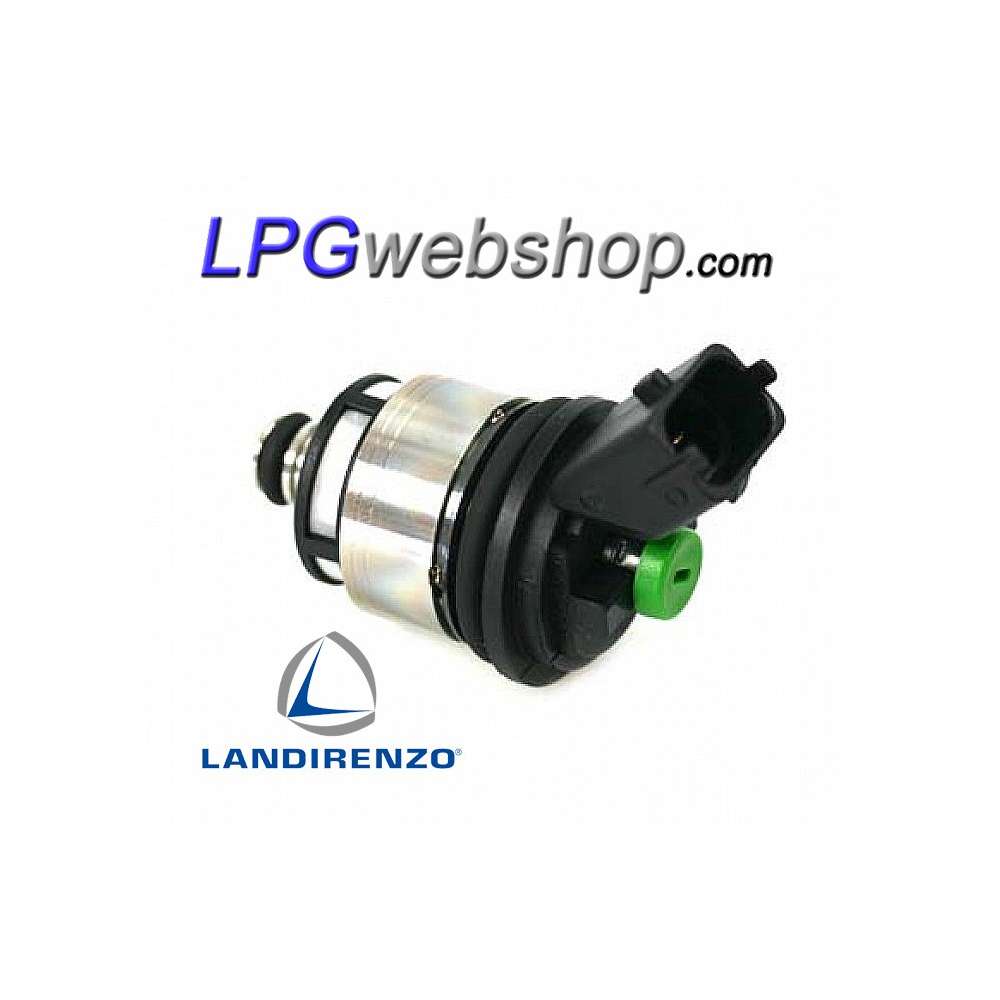

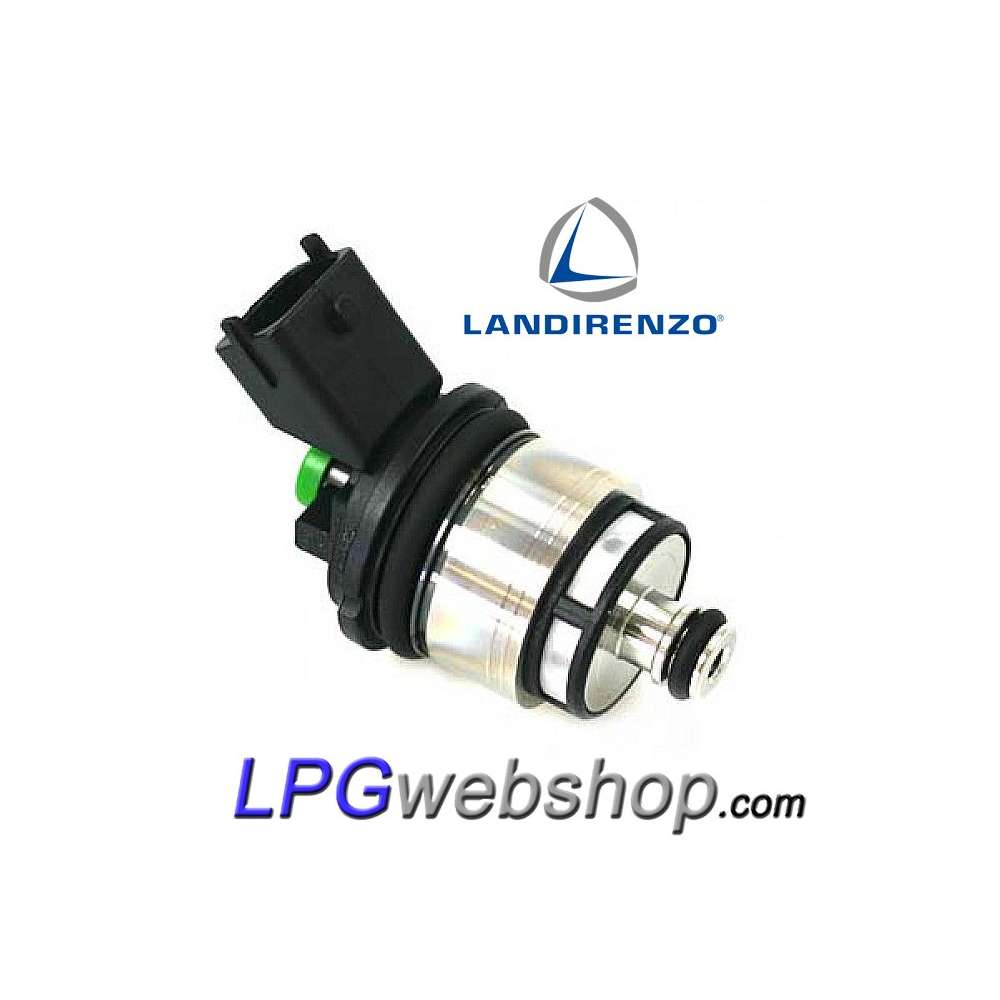

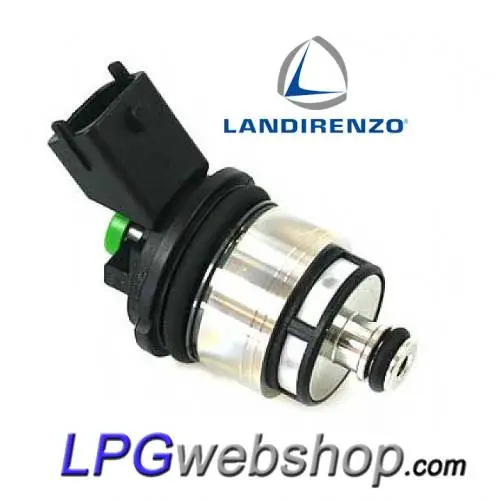

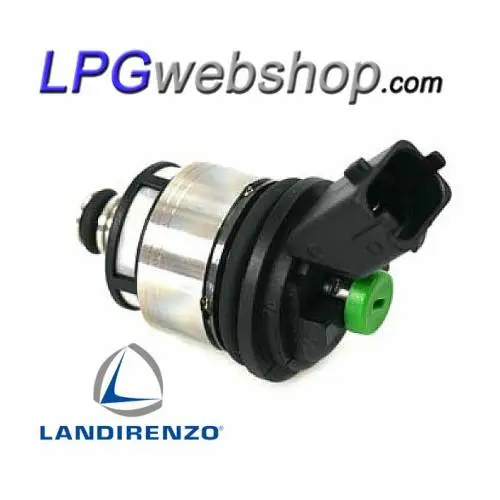

Landi Renzo Gas Injector TB/TU2522 GI25-22 Small Green MED FIAT ALFA LANCIA MTA Connector
Landi Renzo Gas Injector TB/TU2522 GI25-22 Small Green MED FIAT ALFA LANCIA MTA Connector
Brand: Landi Renzo
Type number: TB2522 MTA
Type: GI 25-22 TU2522 (TB2522)
Injector Size: Small Green GI 25-22
The injector size is indicated by the color of the plastic cap and the code on the upper part of the injector next to the plug connection.
Manufacturer code: 237123000
Injector Approval: E13 67R-010234 - E13 110R-000058
Rail (Holder) Approval: E13 67R-010233 - E13 110R-000057

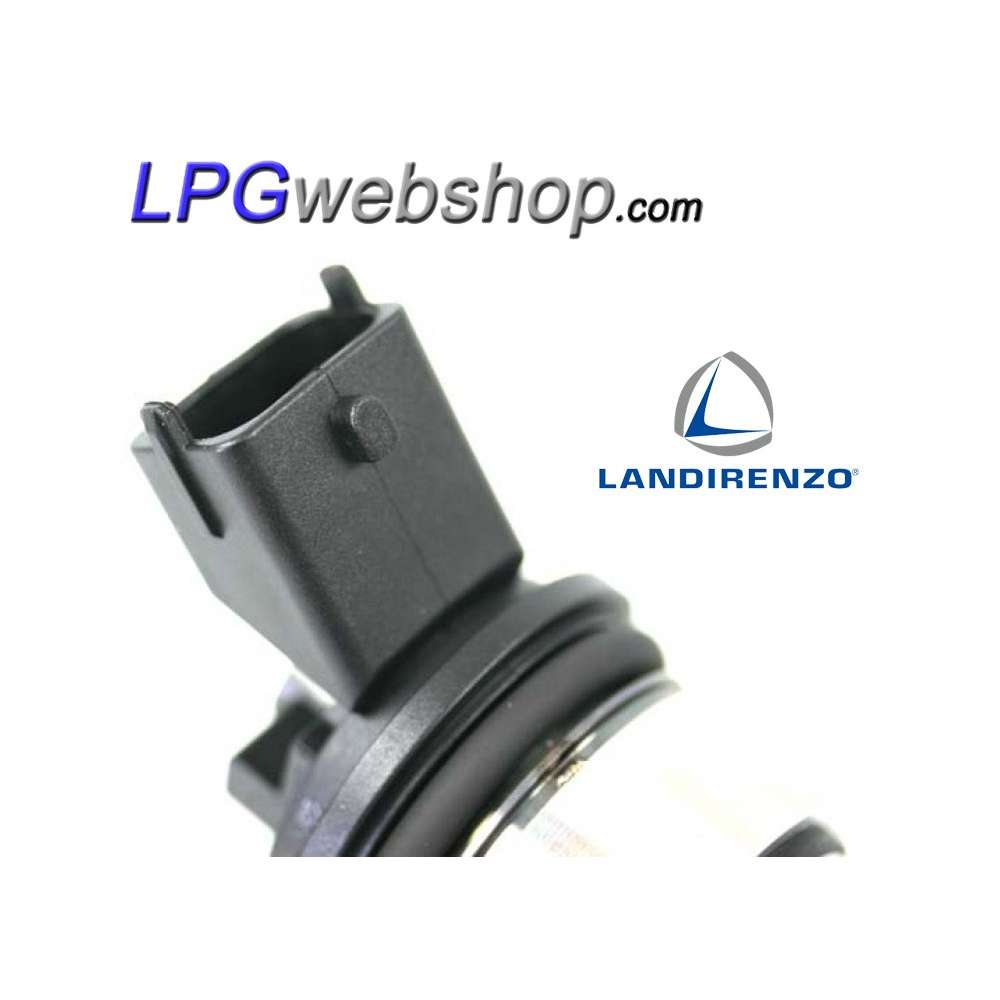

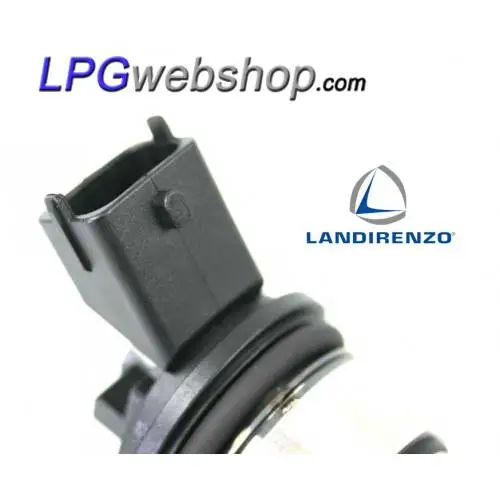

Electrical connection: MTA 2 Pole
Plug: MTA (FIAT)
OEM: FIAT

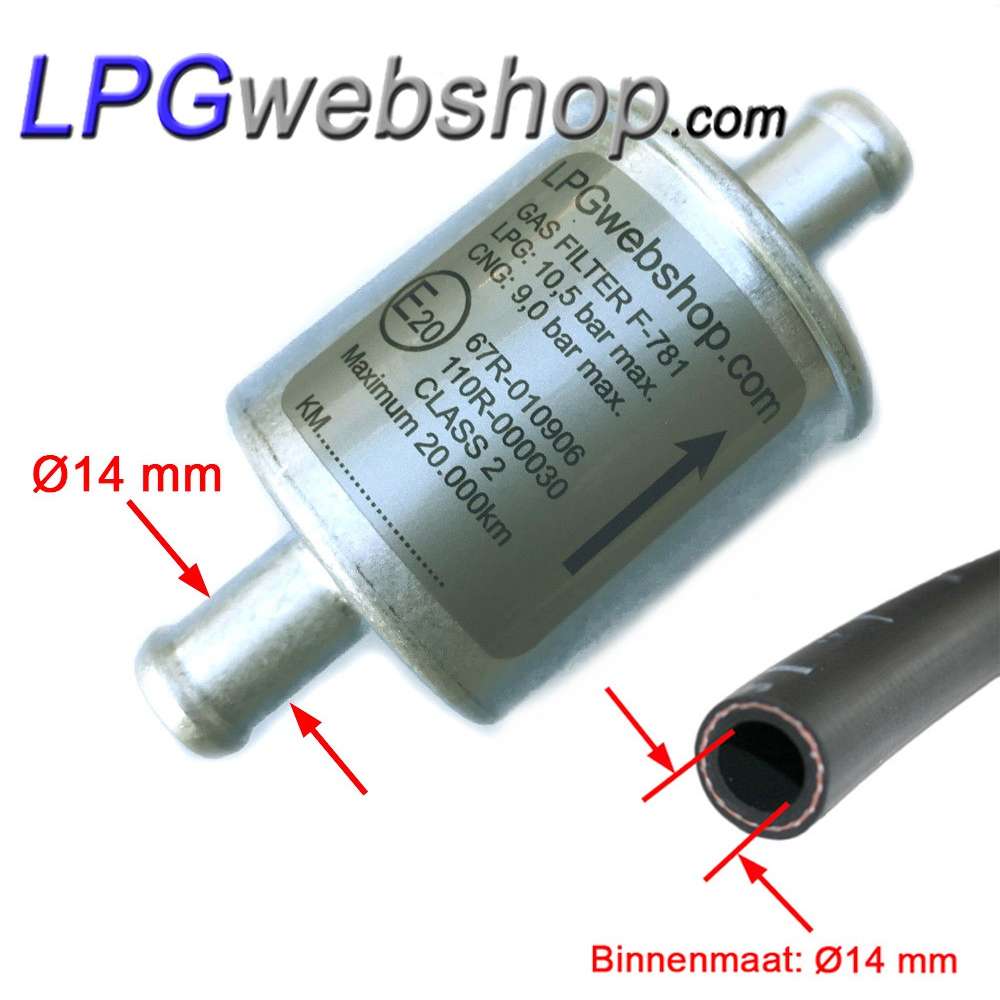

FREE GAS FILTER type F-781 when ordering 3 or more injectors
720007060
Brand: Landi Renzo
Type number: TB2522 MTA
Type: GI 25-22 TU2522 (TB2522)
Injector Size: Small Green GI 25-22
The injector size is indicated by the color of the plastic cap and the code on the upper part of the injector next to the plug connection.
Manufacturer code: 237123000
Injector Approval: E13 67R-010234 - E13 110R-000058
Rail (Holder) Approval: E13 67R-010233 - E13 110R-000057
Electrical connection: MTA 2 Pole
Plug: MTA (FIAT)
OEM: FIAT
FREE GAS FILTER type F-781 when ordering 3 or more injectors
€73.92 tax incl.
€92.40
Save 20%Foreign companies with a valid VAT number shop VAT-free here! READ HOW.
Safe & TrustedWebshop Trustmark Certified Member & Secured by SSL. Your data and orders are safe here.
Delivery policySafe and Secure Shipping with DPD or DHL
Refund policyPolítica de reembolso de 14 días y derecho de devolución
Landi Renzo Gas Injector TB/TU2522 GI25-22 Small Green MED FIAT ALFA LANCIA MTA Connector (237123000) FIAT 500 Grande Punto Idea Bravo Panda Qubo - ALFA MiTo - Lancia Y Musa
Suitable for the gas systems listed below
- Landi Renzo FIAT: PANDA, 500, Bravo, Punto
- Landi Renzo ALFA: MiTo, Giulietta
- Landi Renzo LANCIA: Ypsilon, Delta
- Landi Renzo FIAT: PANDA, 500, Bravo, Punto
- Landi Renzo ALFA: MiTo, Giulietta
- Landi Renzo LANCIA: Ypsilon, Delta
Only Suitable for: FIAT ALFA LANCIA
NB! NOT SUITABLE FOR other brands and gas systems
NB! NOT SUITABLE FOR other brands and gas systems
Important information regarding Gas Injectors
ATTENTION!
If you DO NOT replace ALL the injectors, there are many possibilities of differences between your new and old (contaminated) injectors, so the engine will still work badly and it may even seem that the new injectors do not work properly. All injectors are controlled with more or less the same injection time. The old injectors will dose more gas than the new injectors, because they are still accurate. Because the average mix is still too rich, the engine management will shorten the injection time, so that the new injectors will deliver even less. This will be particularly noticeable with a low engine load (idle) and much less noticeable with a higher engine load (not a high speed, but with the accelerator pedal well depressed).
Therefore it's important to replace all the injectors at the same time.
NB! USE THE SAME INJECTOR SIZE AS NOW USED ON YOUR CAR TO AVOID ADJUSTMENTS (SOFTWARE).
Replace the gas phase filter in time and regularly!
The filter lasts a maximum of 20,000 km. Preferably replace the filter earlier.
This replacement period applies with an average engine capacity of approximately 1.8L. Larger engines use more gas, which means the gas filter needs to be replaced sooner.
It is also possible that the LPG contains a lot of contamination (with oil and fats) at some refueling, which means that it is necessary to replace the filter earlier. Take this into account.
The timely replacement of the gas filter is necessary to prevent contamination of the gas system and gas injectors.
TIP!
Use 2 filters one after the other (in series) instead of just 1 filter. This allows you to prevent the contamination of the injectors even more when driving on a polluted LPG quality, for example. In this way there is a second filter that can still catch the excess paraffin.
In most cases the problem is caused by the fact that the gas injectors are contaminated with paraffin (oils and greases from the LPG). The filter upstream of the injectors must ensure that the injectors do not contaminate quickly. This gas phase filter will eventually become saturated and must be replaced every 20,000 km. If the filter is not replaced, the paraffin will no longer be trapped and end up in the injectors. It is not the case that the injectors leak or do not open anymore. But the opening and closing time are no longer correct. The injectors remain open longer than they should (with dynamic behavior), which means that too much fuel is being dosed. (too rich mixture) The injectors will then deviate, especially with short injection times (low engine load). The engine is going to run messy and there are too large differences between the injectors. Cleaning the injectors often makes no sense, because there is often too much wear in the injector occurred, as a result of which the guide of the plunger (sealing disk) no longer has the right fit. The plunger does not go smoothly and lord, but goes up and down stumbling and wobbling. If the injectors are replaced without replacing the filter, the new injectors will soon become dirty again. (read symptom control, no long-term solution)
Application List
(List is not complete and not 100% accurate. For indication only)
This type of injector is used in the following car models with factory LPG system:
ALFA ROMEO met LANDI RENZO systeem
- ALFA MITO 1.4 955A1 (238210001)
- ALFA MITO 1.4L 955A6 AM C. (238366000)
FIAT met LANDI RENZO systeem
- 500 1.2L 169A4 E5 C. (238366000)
- GRANDE PUNTO 1.4L 955A6 AM C. (238210001)
- IDEA 1.4 (238210001)
- 500 1.2 (238366000)
- BRAVO 1.4L 16V 192B2 AM C. (238210001)
- DOBLO 1.4L 843A1 AM C. (238210001)
- GRANDE PUNTO PAN 1.4L 8V 350A1 AM C. (238210001)
- GRANDE PUNTO VAN 1.4L 8V 350A1 AM C. (238210001)
- GRANDE PUNTO 1.2 (238366000)
- GRANDE PUNTO 1.4 (238366000)
- GRANDE PUNTO 1.4 8V ACTUAL/EVO 350A1 AM C (238210001)
- IDEA 1.2 188A5 COM AM (238210001)
- IDEA 1.4 843A1 COM AM (238210001)
- IDEA 1.4L 8V 350A1 AM C. (238210001)
- PANDA 1.2 8V 188A4 2P VAN AM C. (238210001)
- PANDA 1.2 8V 188A4 BER/4P VAN AM C. (238210001)
- PANDA 1.2 (238366000)
- PUNTO CLASSIC 1.2 8V 188A4 AM C. (238210001)
- NUOVA PANDA 1.2 169A4 E5 C. (238366000)
- QUBO (238210001)
LANCIA met LANDI RENZO systeem
- MUSA 1.4L 8V 350A1 AM C. (238210001)
- MUSA 1.4 16V 843A1 C.AM (238210001)
- Y 188A4 1.2 C. (238366000)
- Y 1.4L 8V 350A1 COM AM (238210001)
720007060
Data sheet
- Characteristic:
- Size: Small Green - With MTA connector
- Right of Withdrawal
- The right of return expires when the transparent packaging is opened.
- Downloads:
- Manuals and Documentation - See the tab Attachments on this page.
- Related Products:
- See bottom of this page
- Shipping Cost:
- Is calculated in the Checkout and is visible there. (Depends on total weight, destination and discounts.)
- Application:
- LPG Injection Landi Renzo Omegas OEM FIAT 500 Grande Punto Idea Bravo Panda Qubo ALFA MiTo LANCIA Musa Y
