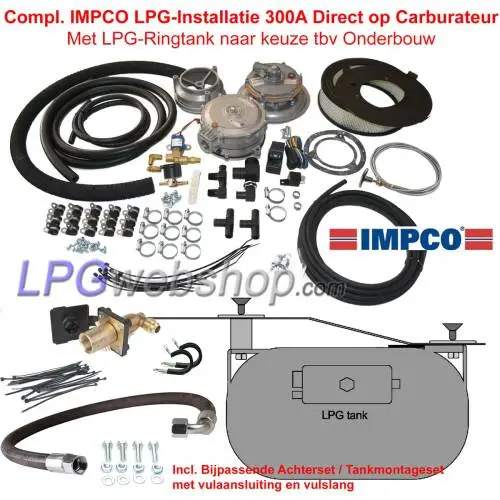

Compl. IMPCO LPG Kit with 300A Direct on Carb. + LPG Toroidal Tank Underslung

Compl. IMPCO LPG Kit with 300A Direct on Carb. + LPG Toroidal Tank Underslung

LPG installation for the conversion of your American classic from, for example, the brands Chevrolet, Ford, Chrysler, Dodge, Cadillac, GMC, etc.
Equipped with an IMPCO 300A mixer and an IMPCO Model E reducer for optimal operation .

The set is complete with an LPG ring tank (tank size of your choice) and an associated rear set: Tank mounting material + Filling connection and filling hose
For this IMPCO LPG Installation, there must be sufficient space between the carburetor and the hood to be.

(For cars with a hood that is too low, we recommend using the IMPCO Motor Kit with "arm", which allows the gas mixer to be placed next to the carburetor.)

PLEASE SPECIFY FOR WHICH TYPE OF VEHICLE (Make, Model, Engine, Year) you are ordering the set, so that we can check your order.

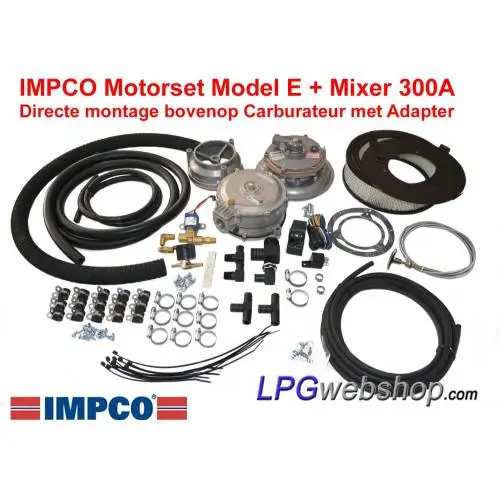

Motor set Contents:

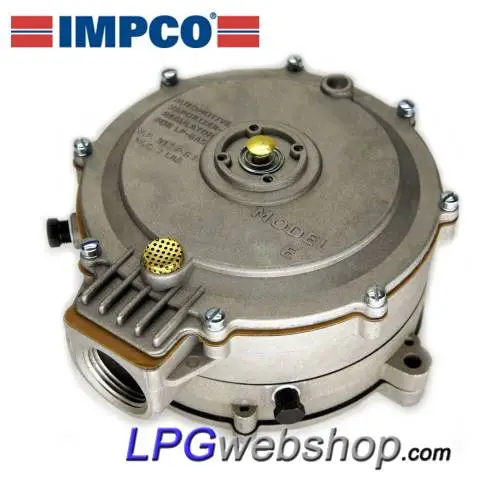

- 1 x Reducer type IMPCO Model E incl. couplings

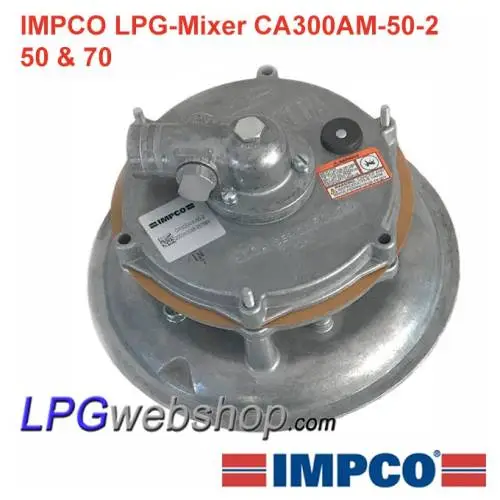

- 1 x IMPCO Gas Mixer Type 300A (Type CA300AM-50-2 50 & 70 ) incl. gaskets and choke cable
- 1 x Gas valve type Valtek 06 large passage incl. couplings
- 1 x Air filter + cover plate and crankcase ventilation connection

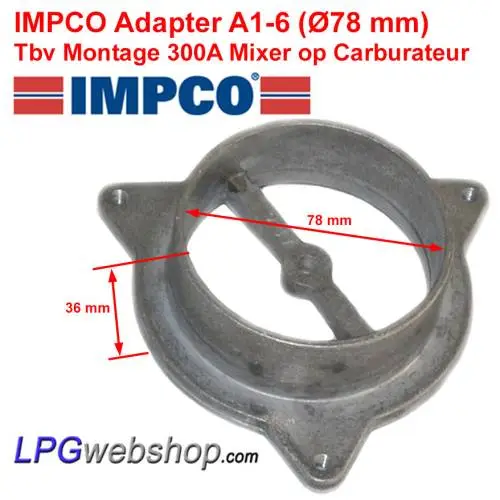

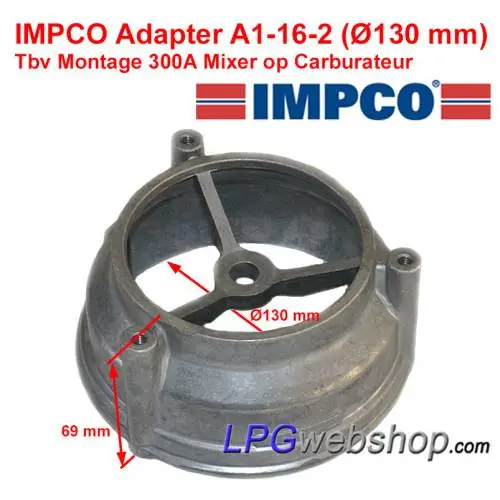

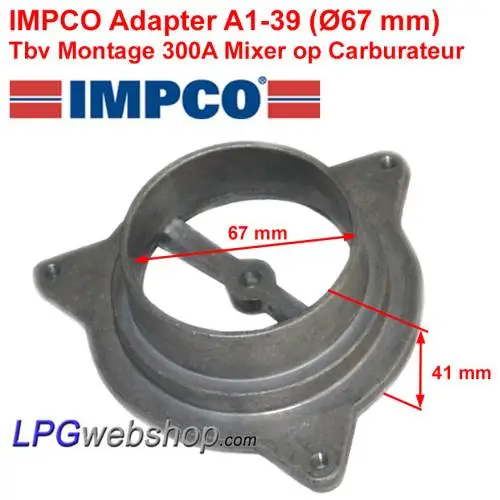

- 1 x Adapter for mounting the gas mixer on top of the carburetor (optional)

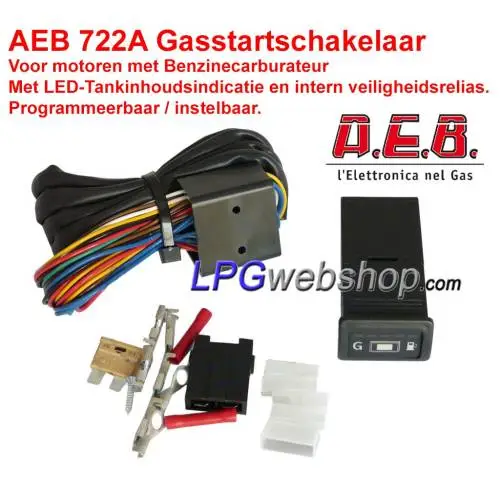

- 1 x LPG switch + LED indicator and internal safety relay type AEB722A (Gas start switch, programmable). With connection diagram and instructions.
- 1 x 5 Pole relay for energizing gas valves
- 1 x Petrol valve
- 1 meter IMPCO Gas hose Ø1 inch (Ø25mm)
- 6 meters LPG pipe plastic 4 + couplings
- 1 x Petrol hose Ø8mm internal
- 1 x Water hose ID Ø15mm
- 2 x T-pieces for Water + Hose clamps
- Small material: Hose clamps, Pipe brackets , self-tapping screws, nuts and bolts, straps.

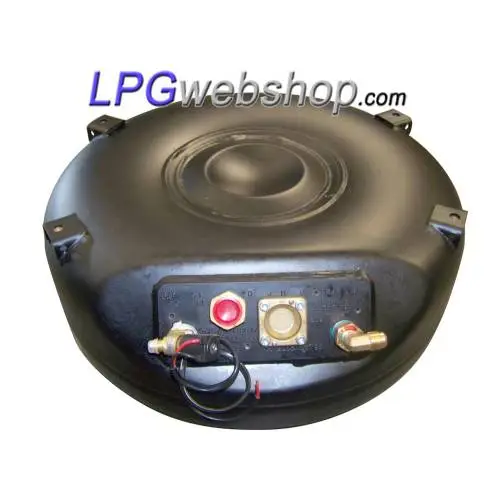

- 1 x LPG Toroidal Tank 4-Hole incl.Tank Fittings excl. Aluminium Valve Box (tank size optional)
- 1 x Tank sensor 0-90 ohm for 4-Gas LPG tank

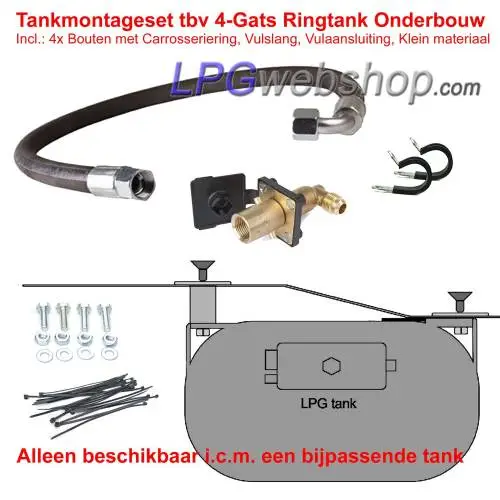

- 1 x Tank mounting set with mounting material, filling connection and filling hose, small material

Correct Installation: Have this Product installed by a recognized specialist! Apply the RDW guidelines such as 20cm ground clearance and distance to heat source, etc. (See downloads at the ATTACHMENTS page).

This type of LPG ring tank can be placed in place of the spare wheel (substructure). Read the related Tutorials and the instructions under the APPENDICES tab for more instructions.

TIP!  In case of LPG substructure: Tank and valves provided with a protective coating for a longer lifespan. Repeat this annually.

PLEASE NOTE! A Tank Certificate is included with every new LPG Tank. This is usually taped to the box or to the tank itself. This contains information about, among other things, the approval, production date and the serial number. This document is unique, individual to the tank and very difficult to obtain again. So keep it safe! You may need it when your car is inspected.

Alternatively, download the 67R-01 approval document of the relevant tank type under the ATTACHMENTS tab on the applicable tank product page.
