LPG Toroidal Tank 49L (Ø650x200) STEP 1-Hole 30° Int. Multivalve included

352403800 - 103341
Type: STEP ST01-650/200 - 1-Hole Toroidal LPG-Tank 30° + MultiValve
Approval Number: E20 67R-01 0864
Tank Volume: Bruto 49 Liter (80%=39,2 Liter)

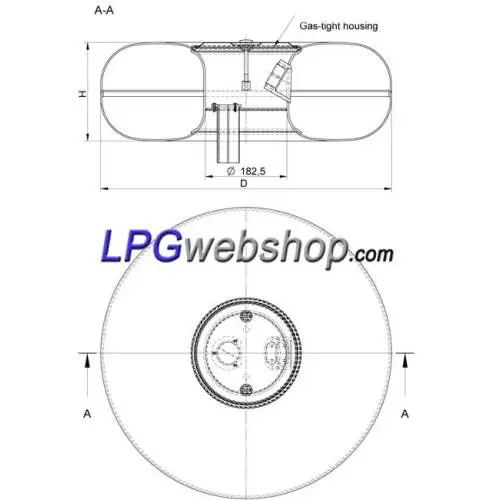

Dimensions: Ø650 mm x Height: 200 mm
Gross Weight: 26,5 kg.
Pressure class: 67R-01 Class 1 (max. 30 bar)
Mounting points: By 2x M12 Bolt through body work
Gas extraction connection (Output) with internal M12x1 thread: Included 2x fitting suitable for 8mm or 6mm LPG pipe
Tank position: Horizontal

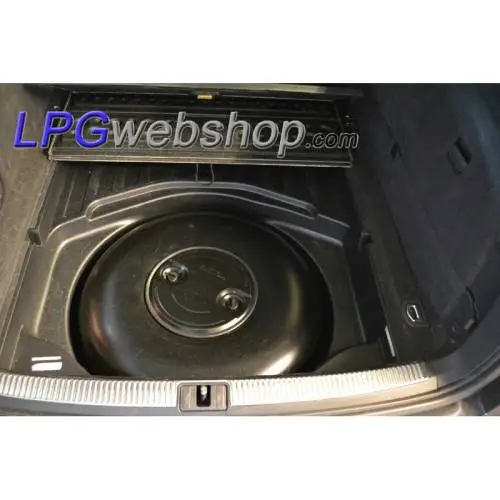

Suitable for horizontally installation at spare wheel location. (Inside - Not below)
€224.52
€264.14
Save 15%
- Delivery: 1-4 days
Quantity
IN STOCK
  Safe Webshop

Webshop Trustmark & Secured by SSL. Your data and orders are safe here.

  Delivery policy

Safe and Secure Shipping with DPD or DHL

  Refund policy

Política de reembolso de 14 días y derecho de devolución

LPG Toroidal Tank 49 Liter (Ø650x200) STEP 1-Hole 30° Int. Multivalve included. Suitable for cars as horizontally installation at spare wheel location. (Inside - Not below)

Application: This type of LPG tank releases liquid LPG that is used as a car fuel. Suitable for internal installation in a horizontal position at the location of the spare wheel (in the trunk) and for most LPG systems such as: Landi Renzo, Vogels VGI, Eurogas, Prins VSI, BRC, Romano, Tartarini, AEB, etc.
This type of tank is NOT suitable for LPG substructure in case the spare wheel is placed under the car.

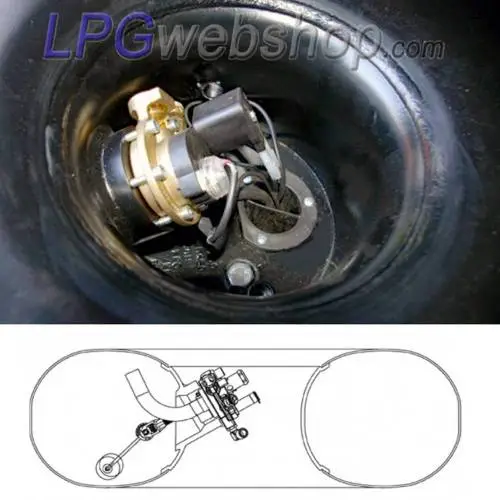

A MultiValve is a unit that is placed on a 1-hole LPG tank to control the following aspects: 80% filling, Level measurement, Pressure relief valve, Elec. take-off tap. We supply the LPG tank with MultiValve. The filling inlet of the MultiValve has a Ø8mm compression connection.

352403800 - 103341

Data sheet

Characteristic:
Multivale Internally at 30 Degrees in central part
Attention!
It is mandatory to have this product installed by an expert. Our company disclaims all liability in the event of an accident.
LPG Pump:
Suitable for most LPG-systems: Landi Renzo, Vogels VGI, Eurogas, Prins VSI, BRC, Romano, Tartarini, AEB, Etc. -This type of LPG Tank has NO LPG Pump. Not suitable for Vialle.
Right of Withdrawal
When connecting (Electric, Gas or coolant) to this product, the right of withdrawal expires.
Downloads:
Manuals and Documentation - See the tab Attachments on this page.
Related Products:
See bottom of this page
Shipping Cost:
Is calculated in the Checkout and is visible there. (Depends on total weight, destination and discounts.)
Application:
Suitable for internal installation in trunk (Horizontally). Not suitable for underneath the car.
Tank Capacity:
41 - 50L
Diameter Toroidal Tank:
650mm
Height Toroidal Tank:
200mm

Download

LPG Tank Install. Instructions

LPG Tank Installation Instructions

Download (2.59MB)

Install. Instructions MultiValve

Installation Instructions MultiValve Landi Renzo

Download (265.95KB)

Install. Manual Multivalve

Installation Manual MultiValve Tomasetto

Download (2.92MB)

STEP Tor Tank 1-Hole 30° H200 E7

Approval STEP Toroidal LPG Tank 1-Hole 30° H200 - E7 67R01 1045113

Download (3.39MB)
