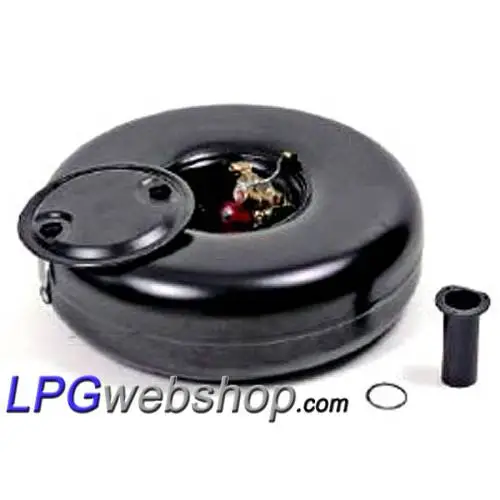

LPG Toroidal Tank 45L (Ø600x220) GZWM 1-Hole 30° Int. Multivalve included

352633020
Type: GZWM ZTW600/220 - 1-Hole Toroidal LPG-Tank 30° + MultiValve
MultiValve: Tomasetto AT02 EXTRA - Pre-assembled on the tank
Approval number: E20 67R-01 0411
Tank Capacity: Gross 45 Litre (80%=36 Litre)

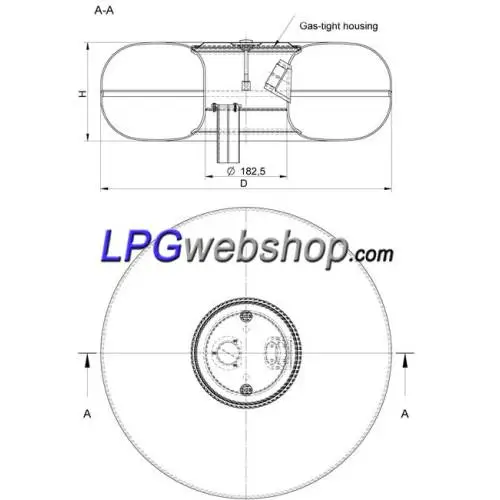

Dimensions: Ø600 mm x Height: 220 mm
Gross Empty Weight: 28.8 kg
Pressure class: 67R-01 Class 1 (max. 30 bar)
Mounting points: By 2x M12 Bolt through body work
Tank position: Horizontal

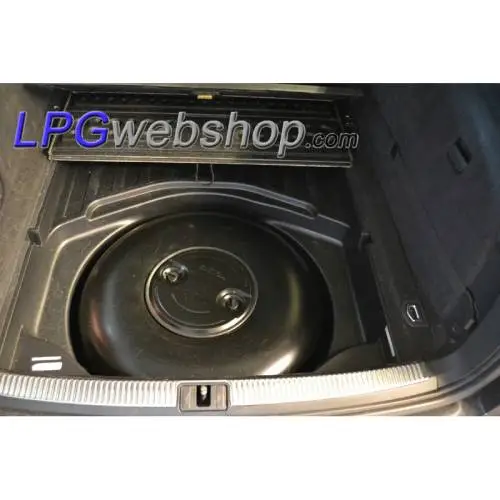

Suitable for horizontally installation at spare wheel location. (Inside - Not below)
€198.81
€220.90
Save 10%
- Delivery: 1-4 days
Quantity
IN STOCK
  Safe Webshop

Webshop Trustmark & Secured by SSL. Your data and orders are safe here.

  Delivery policy

Safe and Secure Shipping with DPD or DHL

  Refund policy

Política de reembolso de 14 días y derecho de devolución

LPG-Tank Toroidal 45 Litre (600x220) GZWM 1-Hole Multivalve 30 Degrees

Application: This type of LPG tank releases liquid LPG that is used as a car fuel. Suitable for internal installation in a horizontal position at the location of the spare wheel (in the trunk) and for most LPG systems such as: Landi Renzo, Vogels VGI, Eurogas, Prins VSI, BRC, Romano, Tartarini, AEB, etc.
This type of tank is NOT suitable for LPG substructure in case the spare wheel is placed under the car.

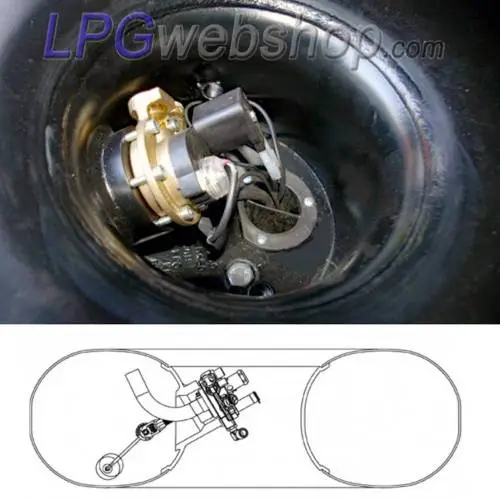

A MultiValve is a unit that is placed on a 1-hole LPG tank to control the following aspects: 80% filling, Level measurement, Pressure relief valve, Elec. take-off tap. We supply the LPG tank with MultiValve. The filling inlet of the MultiValve has a Ø8mm compression connection.

352633020

Data sheet

Characteristic:
Multivale Internally at 30 Degrees in central part
Attention!
It is mandatory to have this product installed by an expert. Our company disclaims all liability in the event of an accident.
LPG Pump:
Suitable for most LPG-systems: Landi Renzo, Vogels VGI, Eurogas, Prins VSI, BRC, Romano, Tartarini, AEB, Etc. -This type of LPG Tank has NO LPG Pump. Not suitable for Vialle.
Right of Withdrawal
When connecting (Electric, Gas or coolant) to this product, the right of withdrawal expires.
Downloads:
Manuals and Documentation - See the tab Attachments on this page.
Related Products:
See bottom of this page
Shipping Cost:
Is calculated in the Checkout and is visible there. (Depends on total weight, destination and discounts.)
Application:
Suitable for internal installation in trunk (Horizontally). Not suitable for underneath the car.
Tank Capacity:
41 - 50L
Diameter Toroidal Tank:
600mm
Height Toroidal Tank:
220mm

Download

LPG Tank Install. Instructions

LPG Tank Installation Instructions

Download (2.59MB)

Install. Instructions MultiValve

Installation Instructions MultiValve Landi Renzo

Download (265.95KB)

Install. Manual Multivalve

Installation Manual MultiValve Tomasetto

Download (2.92MB)

GZWM Toroidal Tank 1-Hole ZT-220

Approval GZWM Toroidal LPG Tank 1-Hole 30° ZT-220 - E20 67R 01 0411

Download (434.57KB)
