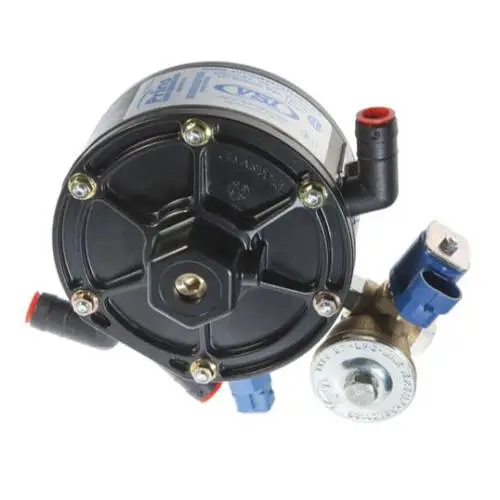

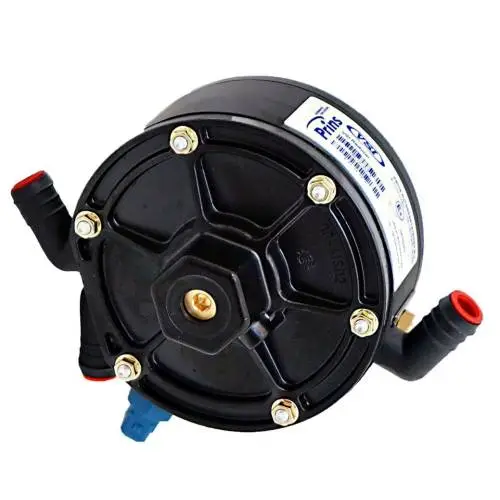

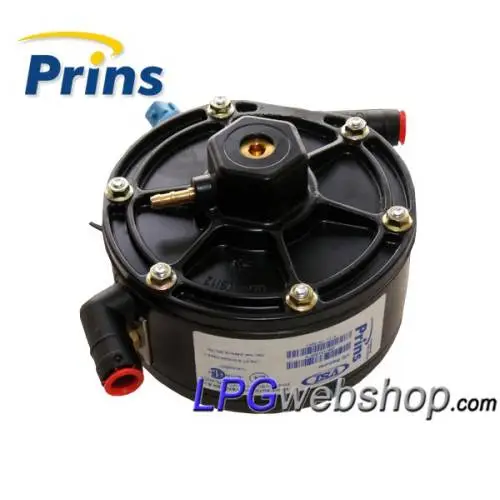

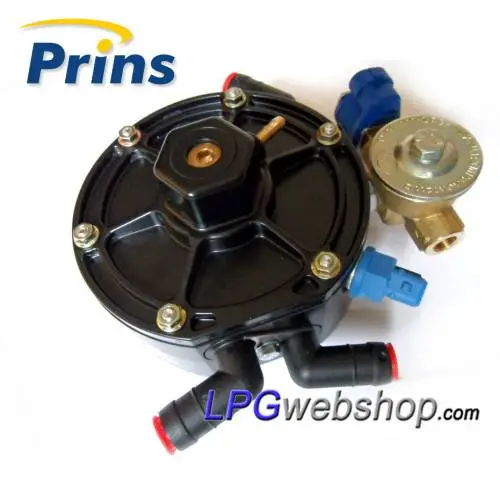

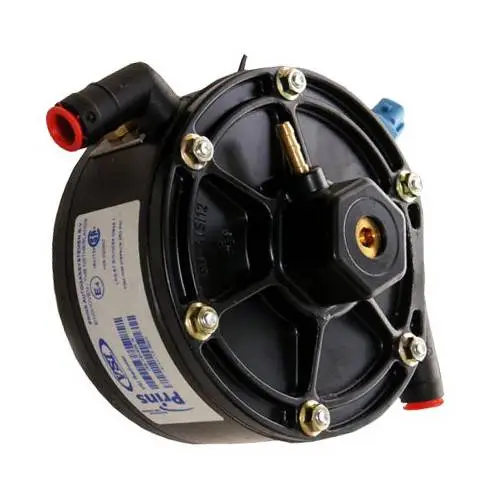

Prins VSI LPG Reducer with MAP connection

PRINS Reducers
251009600 -102891

Brand: Prince
Approval number: E4 67R-01 0054
Output pressure: 1.4 - 1.6 bar adjustable
Outlet connection: Ø16mm Hose barb
Water connections: Ø16mm
MAP Connection: Ø5mm
Input connection: M10x1 - Ø6/8 mm Pipe depending on gas valve
Power: up to 250 kW (340 HP) Motor power with pipe 135kW / 180hp (6mm) | 255 kW / 335hp (8mm)
Pressure class: 67R-01 Class 1 (max. 30 bar)
Material: Aluminium
Gas shut-off valve: Optional
Electrical connection: Super Seal 2 Pole
Note: Integrated cooling water temperature sensor (NTC resistor, R=2500 ohm at 20°C)

€239.20 tax incl.
Save 20%

Foreign companies with a valid VAT number shop VAT-free here! READ HOW.

- Delivery: 1-4 days
Shut Off Valve
  Safe Webshop

Webshop Trustmark & Secured by SSL. Your data and orders are safe here.

  Delivery policy

Safe and Secure Shipping with DPD or DHL

  Refund policy

Política de reembolso de 14 días y derecho de devolución

Prins VSI LPG Reducer with MAP connection

For Prins VSI Reducer Gas injection systems and engines up to 250 kW (340 HP) with or without Turbo.
- Temperature sensor integrated
- External gas valve optional

Suitable for the following Gas Systems:
PRINCE Diesel Blend

NOT SUITABLE FOR traditional mixing piece (venturi) gas systems.

Prins has limited the number of different types of Reducer by equipping all Reducer with a MAP connection as standard.
Turbo engines should use the MAP connection as well as the MAP sensor. Normally aspirated engines do not need to use the MAP connection and can be left open. It will function now as a breather hole.
To prevent dirt and moisture from entering the MAP connection, we recommend connecting a piece of hose (ø5mm) to the MAP connection and pointing it downwards.

Prins has reduced the reducers versions -> all reducers now standard have a MAP connection.

Certification: E4 67R-01 0054 (ATTENTION! This is an approval number and may be valid for a series of products / family. This is NOT a type number!!! Please check the Model code / Type number / Size of the desired product.)

251009600 -102891

Data sheet

LPG Shut-off Valve:
Gasafsluiter Optioneel
Right of Withdrawal
The right of return expires when the transparent packaging is opened.
Manuals and Documentation - See the tab Attachments on this page.
