IMPCO LPG Engine Conversion Kit with extension arm on carburettor for V8 larger than 5L
IMPCO LPG Engine Conversion Kit with extension arm on carburettor for V8 larger than 5L
TYPE : IMPCO LPG Engine Conversion Kit with extension arm on carburettor for V8
CHOOSE THE RIGHT ADAPTER FOR YOUR CARBURETOR :
- (A1-16) Ø130mm
- (A1-54) Ø78mm
- (A1-55) Ø67mm
PLEASE SPECIFY FOR WHICH TYPE OF VEHICLE (Make, Model, Engine, Year) you are ordering the set, so that we can check your order. Do this in the comments field below
751001500
TYPE : IMPCO LPG Engine Conversion Kit with extension arm on carburettor for V8
CHOOSE THE RIGHT ADAPTER FOR YOUR CARBURETOR :
- (A1-16) Ø130mm
- (A1-54) Ø78mm
- (A1-55) Ø67mm
PLEASE SPECIFY FOR WHICH TYPE OF VEHICLE (Make, Model, Engine, Year) you are ordering the set, so that we can check your order. Do this in the comments field below
Product customization
Don't forget to save your customization to be able to add to cart €784.35 tax incl.
€1,120.50
Save 30%Foreign companies with a valid VAT number shop VAT-free here! READ HOW.
Optional adapters
Safe & TrustedWebshop Trustmark Certified Member & Secured by SSL. Your data and orders are safe here.
Delivery policySafe and Secure Shipping with DPD or DHL
Refund policyPolítica de reembolso de 14 días y derecho de devolución
IMPCO LPG Engine Conversion Kit with extension arm on carburettor for V8 larger than 5L
Gas installation for LPG installation in your American classic car from, for example, the brands Chevrolet, Ford, Chrysler, Dodge, Cadillac, GMC, etc. Equipped with an IMPCO 300A mixer and an IMPCO Model E evaporator for optimal operation. Gas system from USA Cerritos California

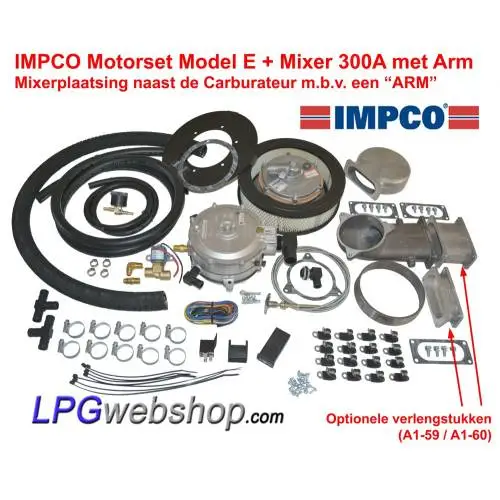

Set Contents:

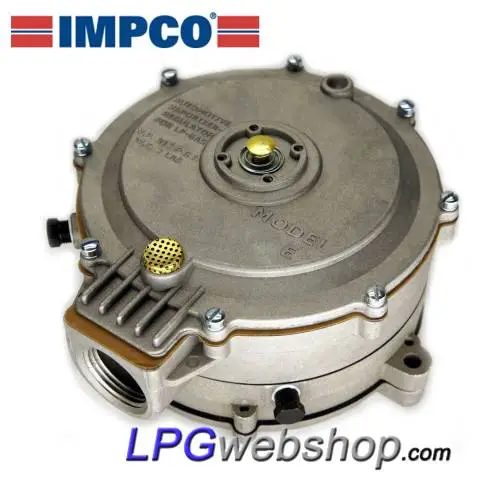

- 1 x Reducer type IMPCO Model E incl. couplings
- 1 x Gas valve type Valtek 06 large passage incl. couplings

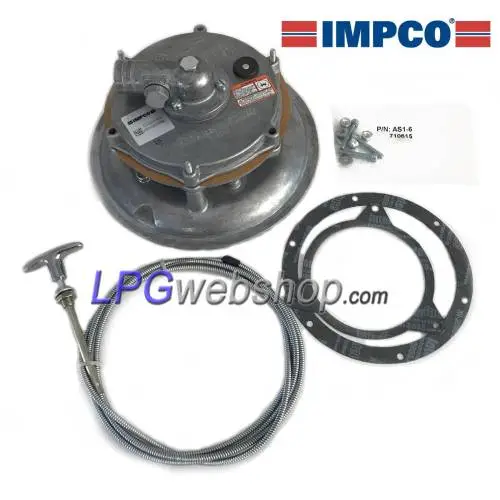

- 1 x IMPCO Gas mixer 300A (Type CA300AM-50-2 50 & 70) incl. gaskets and choke cable
- 1 x Air filter + cover plate and crankcase ventilation connection
- 1 x Adapter for mounting the A1-57 (Hood / Hood) on top of the carburetor (Choose the correct adapter size)
- 1 x Gas valve type Valtek 06 large passage incl. couplings
- 1 x IMPCO Gas mixer 300A (Type CA300AM-50-2 50 & 70) incl. gaskets and choke cable
- 1 x Air filter + cover plate and crankcase ventilation connection
- 1 x Adapter for mounting the A1-57 (Hood / Hood) on top of the carburetor (Choose the correct adapter size)
- 1 x End piece A1-63 Unidapt for mounting the Mixer.
- 1 meter IMPCO Gas hose Ø1 inch (Ø25mm)

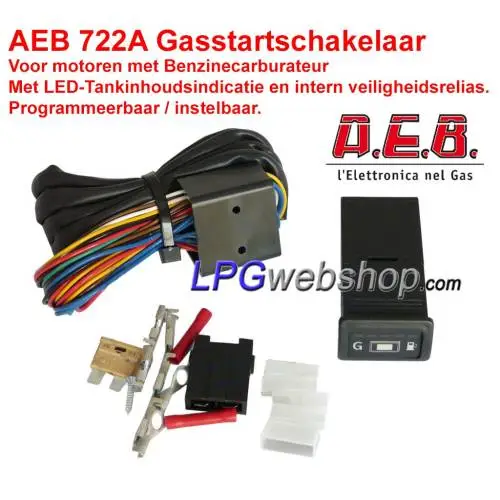

- 1 x LPG switch + LED indicator and internal safety relay type AEB722A ( Gas start switch, programmable). With connection diagram and instructions.
- 1 x 5 Pole relay for energizing gas valves
- 1 x Petrol valve
- 6 meters LPG plastic pipe XD-4 + couplings
- 1 x Petrol hose Ø8mm internal
- 1 x Water hose ID Ø15mm
- 2 x Water T-pieces + Hose clamps
- Small material: Hose clamps, pipe brackets, self-tapping screws, bolts and nuts, straps.
- 1 meter IMPCO Gas hose Ø1 inch (Ø25mm)
- 1 x LPG switch + LED indicator and internal safety relay type AEB722A ( Gas start switch, programmable). With connection diagram and instructions.
- 1 x 5 Pole relay for energizing gas valves
- 1 x Petrol valve
- 6 meters LPG plastic pipe XD-4 + couplings
- 1 x Petrol hose Ø8mm internal
- 1 x Water hose ID Ø15mm
- 2 x Water T-pieces + Hose clamps
- Small material: Hose clamps, pipe brackets, self-tapping screws, bolts and nuts, straps.
Application: LPG system for use in American classics from brands such as; Chevrolet, Ford, Chrysler, Dodge, Cadillac, GMC, etc. with a gas installation with an IMPCO Model E evaporator.
Choose the right adapter for your carburetor: The IMPCO 300A mixer is placed on top of the petrol carburetor using an (attachment) adapter. You can choose from the following types of adapters suitable for carburetor diameters:

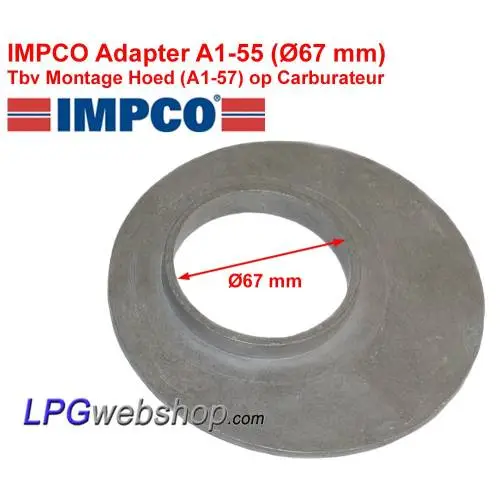

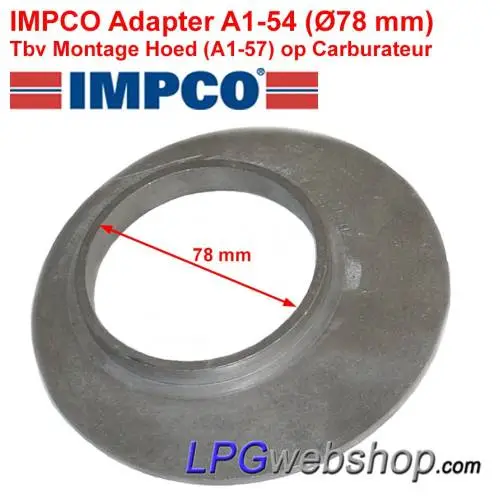

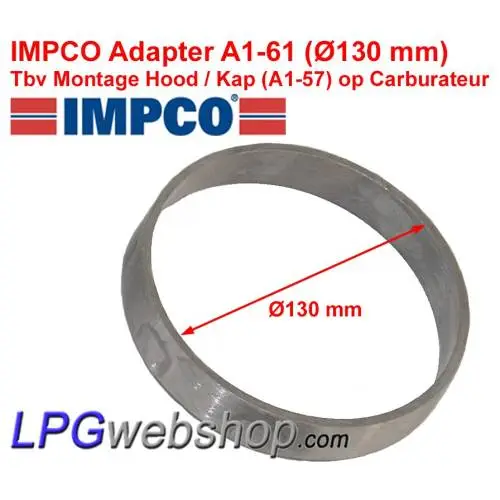

- (A1-61) Ø130mm /- (A1-54) Ø78mm / - (A1-55) Ø67mm (See also the images with this product for illustration).

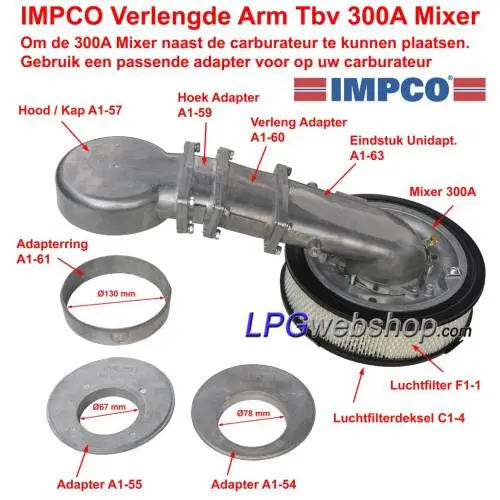

Extra Arm Extensions: If you want to extend the "Arm", so that the mixer can be placed even further to the side of the carburetor, you can optionally order the extra arm extension adapters:
- Adapter A1-60 Straight extension arm of 75mm

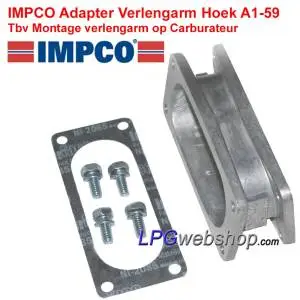

- Adapter A1-59 Angled extension arm.
PLEASE NOTE! With this set, the mixer is placed next to the carburettor by means of an "Arm". There are different sizes of adapters available, depending on the type of carburetor, which make it possible to place the Arm / Hood on the carburetor.

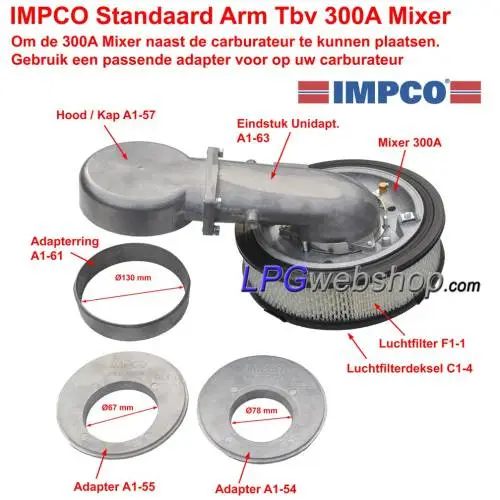

This arm is used if there is not enough space under the hood to place the mixer on top of the carburetor. The arm consists of a number of parts for the carburetor such as an A1-57 (Hood / Hood), a suitable adapter (A1-54 / A1-55 / A1-61) to make the hood fit on the carburetor, a number of extension parts (with or without an angle) and an end piece A1-63 Unidapt on which the mixer can be mounted.
Correct Installation : Have this Product installed by a recognized specialist! Use the RDW guidelines such as 20cm ground clearance and distance to heat source, etc. (See downloads under the ATTACHMENTS).
-----------------------------------------------------------------------------------------------------------------------------
Complete IMPCO LPG Installation:
Are you looking for a complete IMPCO LPG Installation? Installation for your American classic? Then put together your own gas system by choosing the following suitable parts for your car:
1: An IMPCO Motor Set
2: A LPG Tank
3: A TANK MOUNTING KITS Rear set / Tank mounting set associated with the LPG tank. (You will find the matching rear set for the LPG tank under "Associated products" at the bottom of the product page.
RECEIVE AN EXTRA DISCOUNT WHEN ORDERING A COMPLETE IMPCO INSTALLATION!
Use the following Discount Code in the checkout (shopping cart): LPG-INSTALLATIE
751001500
Data sheet
- Attention!
- Hanteer de RDW-inbouweisen
It is mandatory to have this product installed by an expert. Our company disclaims all liability in the event of an accident. - Right of Withdrawal
- When connecting (Electric, Gas or coolant) to this product, the right of withdrawal expires.
