IMPCO Adapter A1-59 Unidapt: Arm piece Angular 35mm for extension arm

IMPCO Adapter A1-59 Unidapt: Arm piece Angular 35mm for extension arm

Use this adapter if you want to extend an IMPCO "arm" and give it a downward angle. For placing a Mixers model 300A next to the carburetor. To be used in combination with the other IMPCO Arm parts.

Mounting: On the IMPCO Adapter (A1-57) (Hood / Kap) and the end piece (A1-63) (Unidapt) and possibly the straight extension piece A1-60.
Position: On top of the carburetor using adapter (A1-57) (Hood / Kap)

Specifications and Connections:

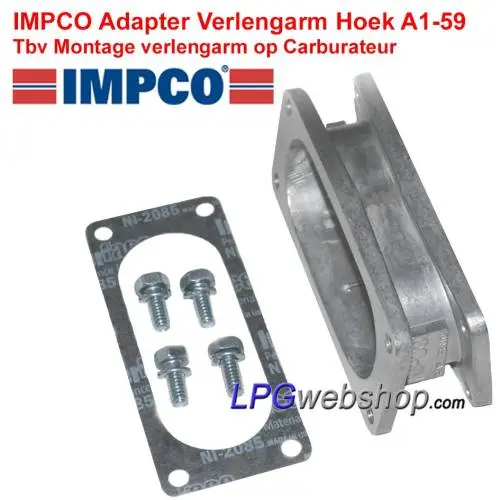

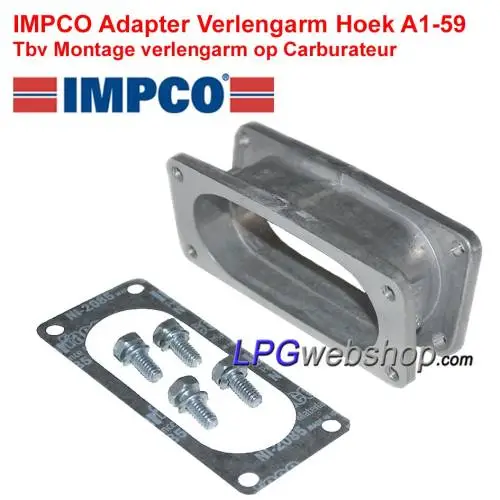

- Incl. Gasket and 4 x mounting bolt.
- 2x 4x Mounting point

Arm piece angular 35mm for the extension of the arm:
This part is used to extend the IMPCO Extension arm with 35mm, to slightly bend it and for placing an IMPCO gas mixer next to the carburettor.

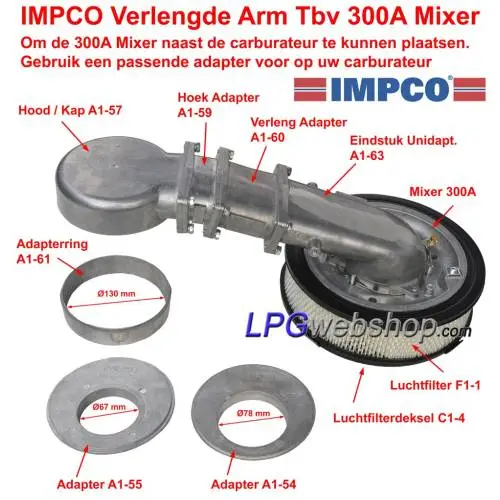

This part is combined with:
- A mounting adapter ring on the carburettor: (A1-61) Ø130mm / (A1-54)  Ø79mm / (A1-55) Ø67mm
- Hood on carburettor: (A1-57) Unidapt.
- Arm extension pieces: A1-59 (Angle) and A1-60 (Straight)
- Gas mixer mounting piece / End piece extension arm: (A1-63) Suitable for type Mixers model 300A .

Application:
This part is used to extend the IMPCO arm on the carburetor by 75mm. Used in combination with the IMPCO (A1-57) (Hood / Kap) which goes on top of the carburetor using a suitable adapter (A1-54 / A1-55 / A1-61) and is used to make an arm on the carburetor to 300A mixer next to it. To extend the arm further, the adapter A1-60 is used. The end piece (A1-63) Unidapt is used to mount the 300A mixer. For American classics with the brands; Chevrolet, Ford, Chrysler, Dodge, Cadillac, etc. to run on LPG in combination with an IMPCO Mixers model 300A.

NB! Place Hood / hood on top of the carburetor of the car. There are different adapters that should be used depending on the type of carburetor, so that the whole fits together well. (A1-54 / A1-55 / A1-61)

Used when making an "Arm" on the carburetor when there is not enough space under the hood to fit the mixer on top of the carburetor. For example, the mixer is positioned next to the carburetor by means of a so-called "arm". These are a number of parts for the carburetor such as a hood (A1-57), a suitable adapter to fit the hat on the carburetor, a number of extensions (with or without an angle) and an end piece (A1-63) Unidapt on which the mixer can be mounted.
