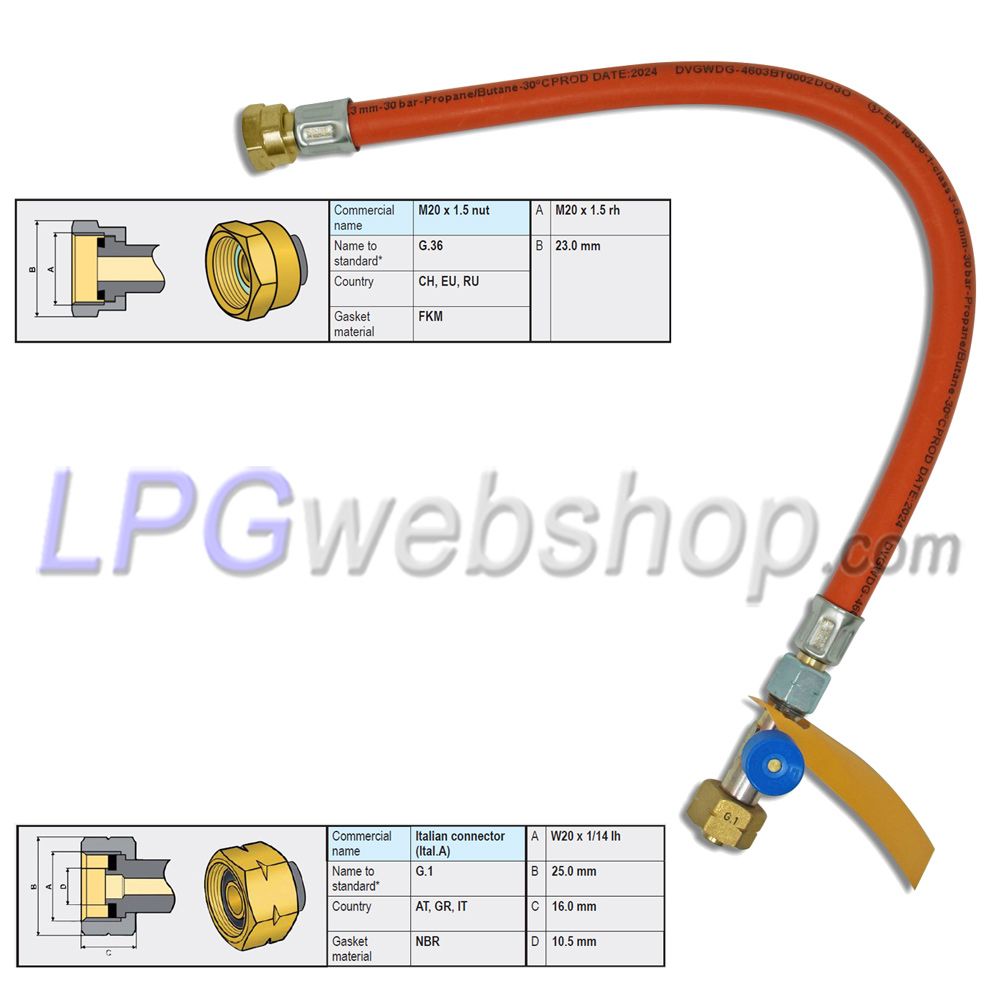

High Pressure gas hose GOK 750mm G.1 (IT-W20x1/14") x G.36 (M20x1.5) with break valve

High Pressure gas hose GOK 750mm G.1 (IT-W20x1/14") x G.36 (M20x1.5) Caramatic ConnectDrive with break valve

High pressure connection gas hose to connect your gas bottle to the pressure regulator (or filter) in your camper or caravan.

The GOK Caramatic Connect Drive high-pressure gas hose is used in campers or caravans to connect the gas bottle to the gas regulator. Only hoses with a hose rupture protection are suitable for use while travelling.

Area of application: Italy, Greece, Cyprus, Malta, Turkey

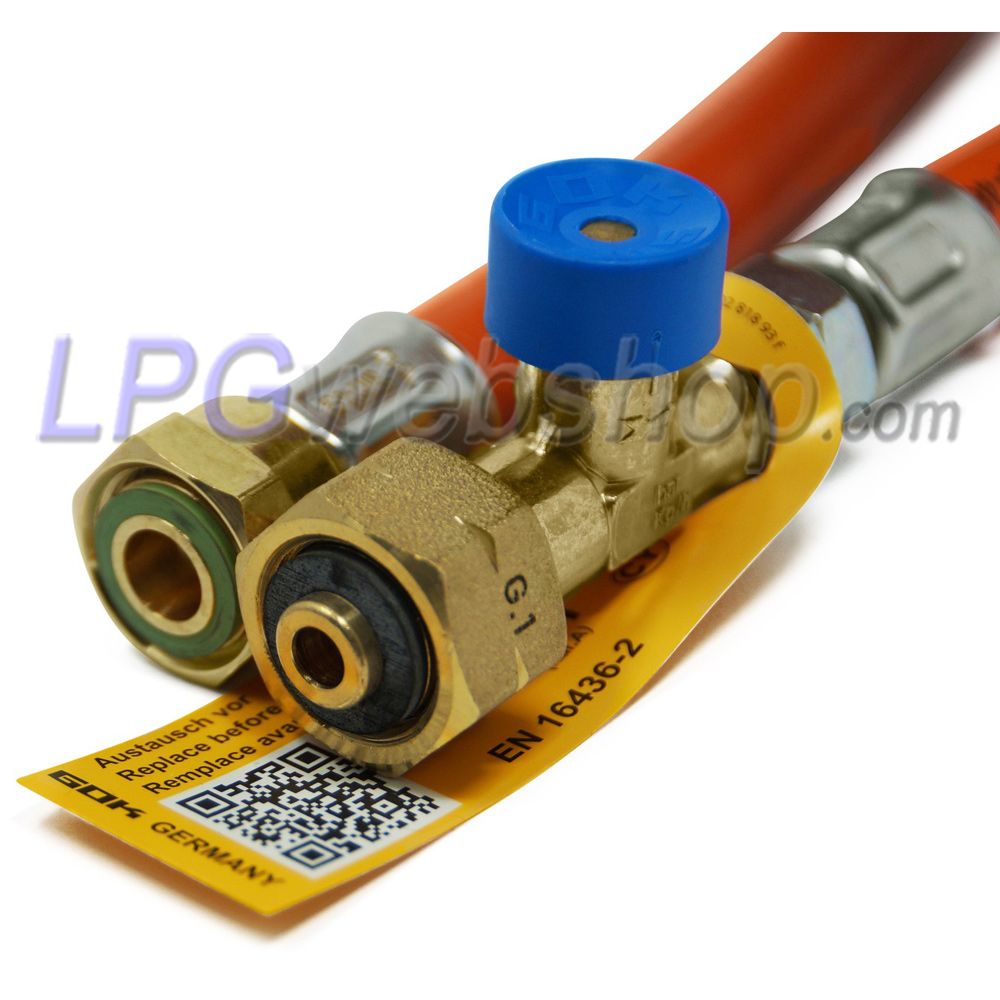

Hose rupture valve : This high-pressure gas hose is equipped with a hose rupture valve, which prevents gas from escaping uncontrollably from the bottle when the hose is torn open. Thanks to the integrated hose rupture protection, its use for heating while driving is permitted throughout Europe.

Gas bottle side connection :

G.1 (IT-W20x1/14"). This fits most gas bottles used in Italy, Greece, Cyprus, Malta and Turkey which have a W20x1/14" connection with left-hand thread.

Connection Pressure regulator side :

G.36 (M20 x 1.5 Right). This fits most pressure regulator systems as used in Caravans and Campers with an M20 connection, for example from the brands: GOK, TRUMA

These high-pressure hoses meet all legal requirements and can also be used stationary. If the hose is damaged, the hose rupture protection is activated and the gas flow stops.

Advantages: Can be used throughout Europe thanks to high-pressure hoses with country-specific connections. The SBS hose rupture protection prevents gas leaks in the event of damage or detachment of the hose and shuts off the gas flow as soon as the nominal flow rate is exceeded by 10%.

Manual hose rupture protection SBS/MA: no delay or leakage gas volume, but manual opening required.
