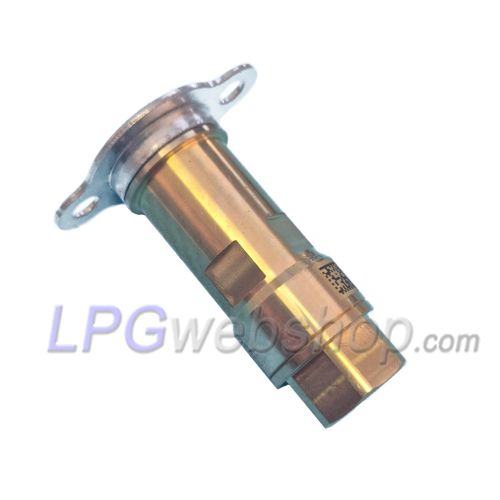

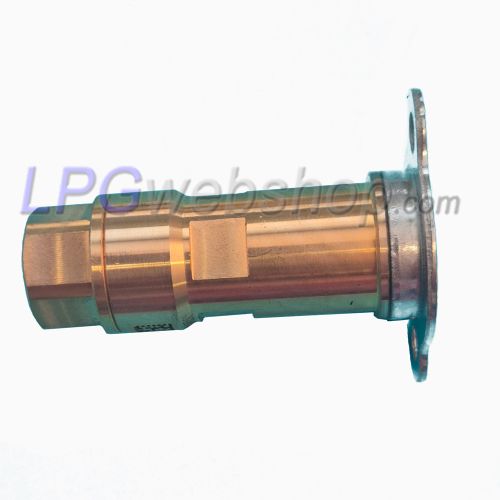

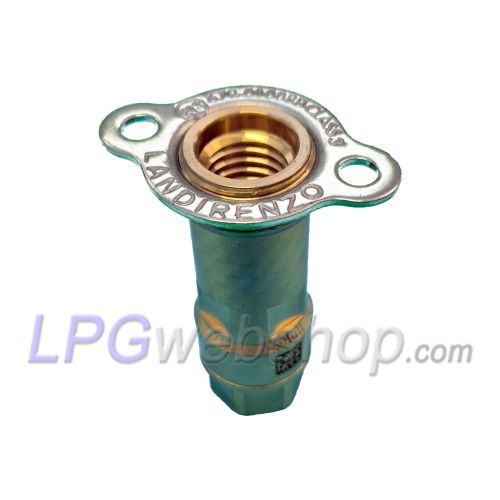

LPG filling connection Mini-filler M14xM12 (8mm) for Opel GM / Landi Renzo – GM-613000104

LPG filling point Type Mini-filler M14 for Opel GM / Landi Renzo – GM-613000104

This compact LPG filling point is used in various OPEL (GM) models with a OEM LPG system (LANDI RENZO) and is mounted behind the fuel filler flap.

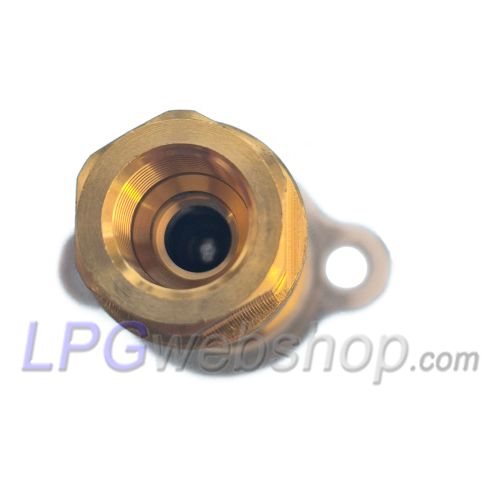

This filling point has an M14 female thread connection at the inlet (filling side) and an M12 female thread connection at the rear (hose/line side) for 8mm pipe (excluding compression ring and nut).

The filling point is equipped with an internal non-return valve to prevent gas from flowing back.

This type of external filler is called a "mini-filler" because it is small and compact and does not have a fixed integrated filling nipple. Thanks to its small dimensions, you can install this filling point behind the fuel filler flap, for example. To refuel, you need to screw a filling nozzle onto the filling point.

NOTE! When installing a filling point, always take into account the available space behind the connection to ensure there is enough room for the filling point and the filling hose.
