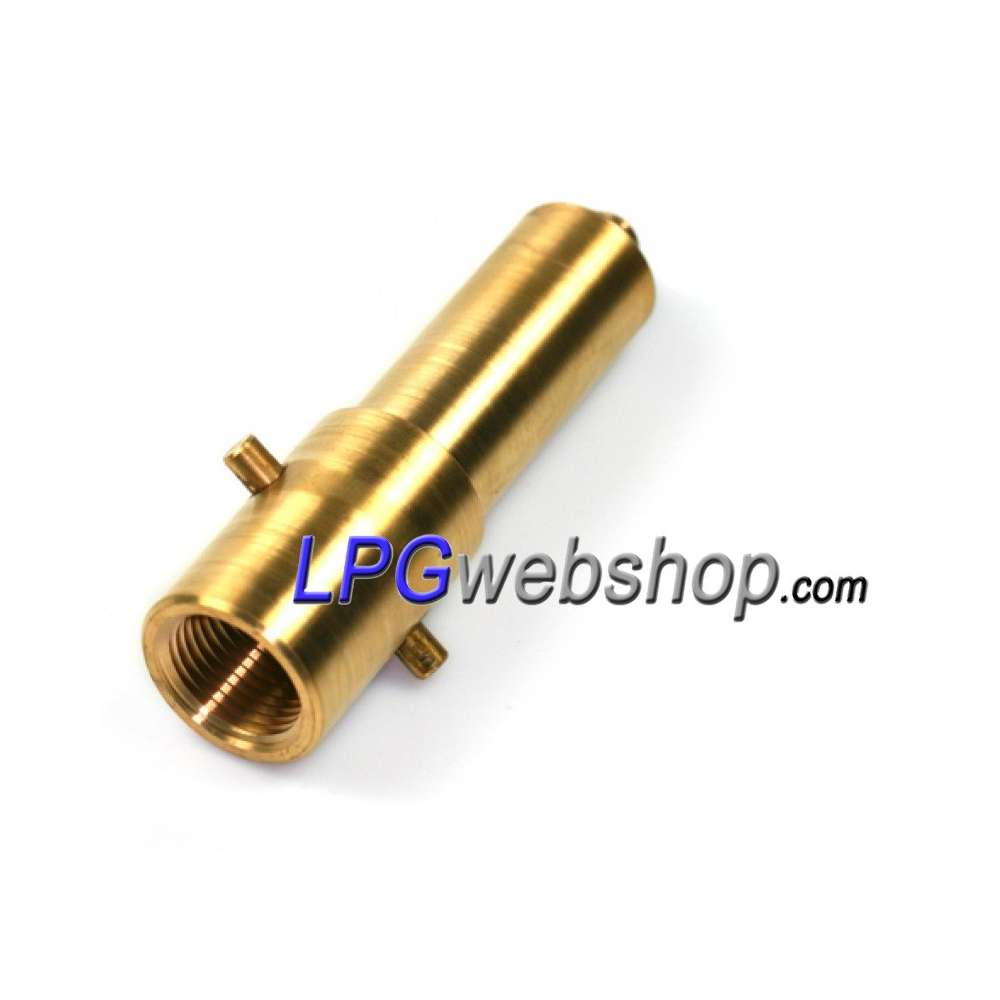

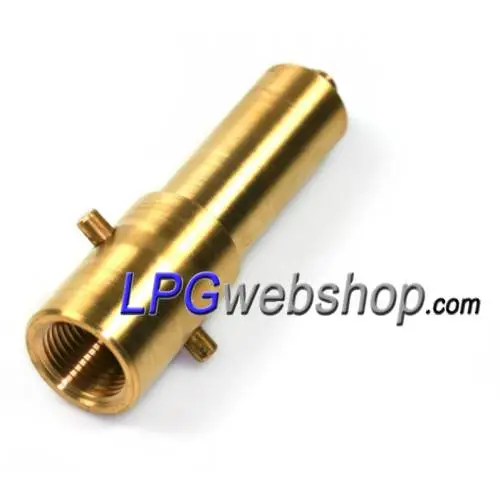

LPG Filling Nozzle Bayonet Extra Long M10

LPG Filling Nozzle Bayonet Extra Long with M10 Thread (10mm) 103mm Length

Is often used i.c.w. a Tomasetto / Mini filler with internal M10 screw thread. (This type of filling connection is often placed behind the fuel flap. But beware because this type of filling connection can also be equipped with a different type of screw thread; M12, M14 or M16)

Carefully measure the type of thread on your filling connection or filling adapter for identification!

Bayonet nipple for Countries: Netherlands, Norway, England, Luxembourg, Scotland

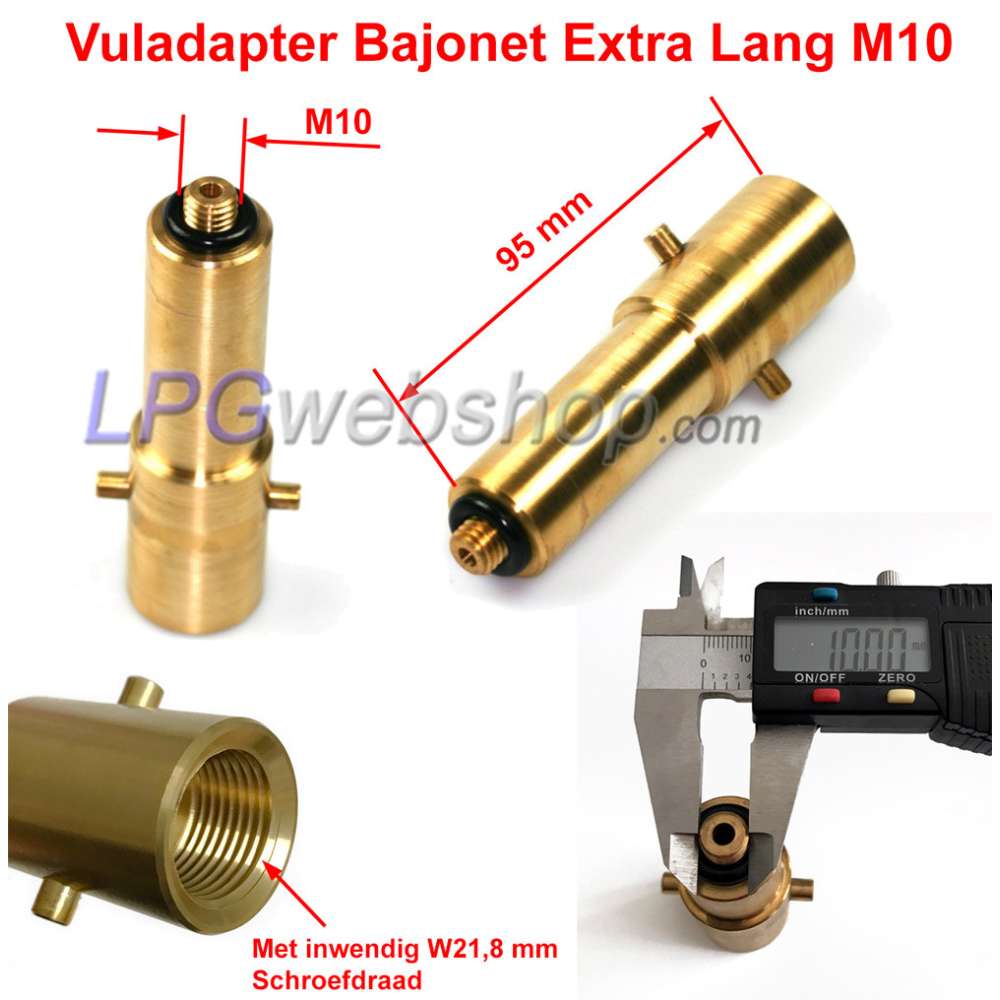

When measuring the internal thread diameter, keep in mind that you are not measuring the height of the thread. Therefore, add about 2 mm to the measurement result to determine the outer diameter.

If you measure the thread size (inner diameter / hole diameter) with a caliper on your car, you measure it approximately 2mm smaller, because you cannot measure 2 x the height of the thread.
So with this type of screw thread you will measure approximately an inner diameter of 8mm.

Another adapter can also be screwed onto this adapter with W21.8 thread on the pump side.
