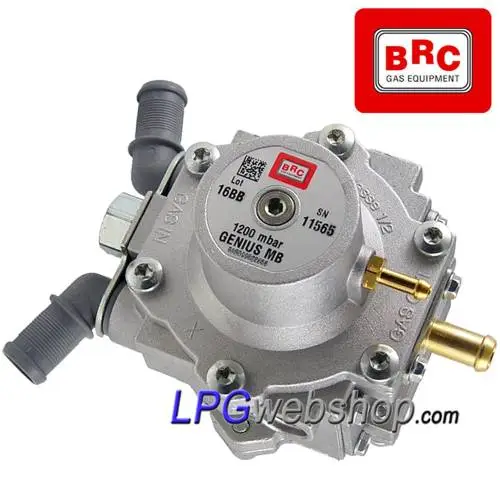

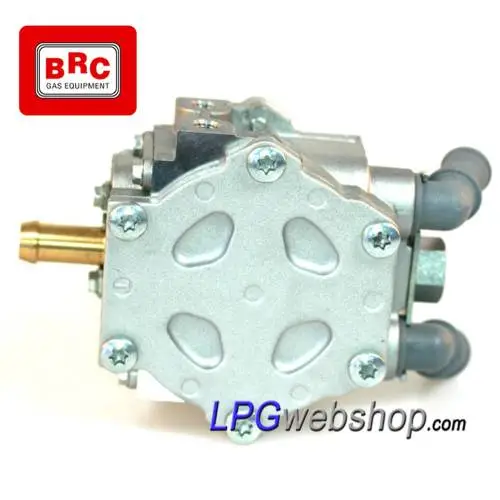

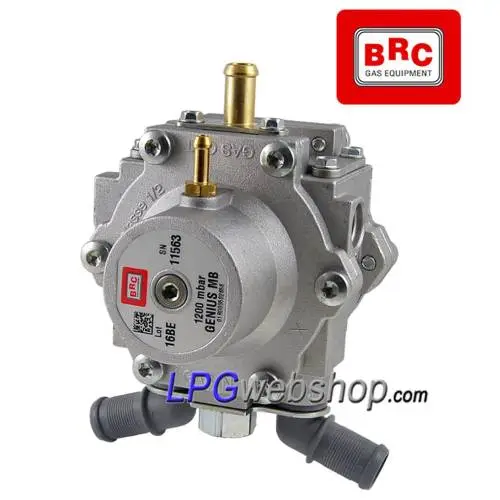

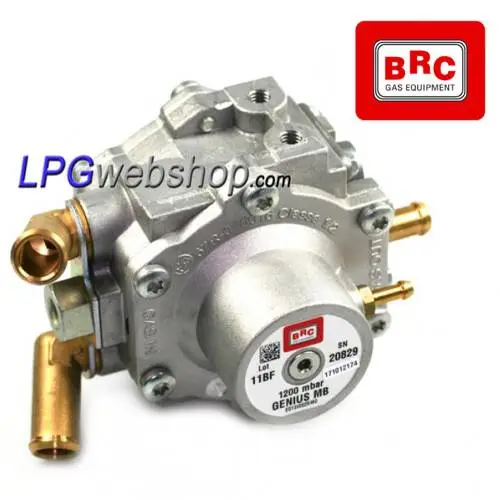

BRC Genius MB 1200 LPG Reducer (Outlet 12mm)
BRC Genius MB 1200 LPG Reducer (Outlet 12mm)
Brand: BRC M.T.M.
Manufacturer code: E010I0028MOBC
Type number: TA260562
Approval number: E13 67R-01 0016
Input connection: Ø6mm compression - (M10x1) internal thread
Output pressure: 1.2 Bar adjustable
Outlet connection: Ø12mm Hose Barb
Water connections: Ø16mm
MAP Connection: Ø5mm
Pressure class: 67R-01 Class 1 (max. 30 bar)
Power: up to 120 kW (163 HP) Engine power
Material: Aluminium
Gas valve: Excl. External Gas Shut Off Valve
251013910
Brand: BRC M.T.M.
Manufacturer code: E010I0028MOBC
Type number: TA260562
Approval number: E13 67R-01 0016
Input connection: Ø6mm compression - (M10x1) internal thread
Output pressure: 1.2 Bar adjustable
Outlet connection: Ø12mm Hose Barb
Water connections: Ø16mm
MAP Connection: Ø5mm
Pressure class: 67R-01 Class 1 (max. 30 bar)
Power: up to 120 kW (163 HP) Engine power
Material: Aluminium
Gas valve: Excl. External Gas Shut Off Valve
€134.16 tax incl.
€157.83
Save 15%Foreign companies with a valid VAT number shop VAT-free here! READ HOW.
Safe & TrustedWebshop Trustmark Certified Member & Secured by SSL. Your data and orders are safe here.
Delivery policySafe and Secure Shipping with DPD or DHL
Refund policyPolítica de reembolso de 14 días y derecho de devolución
BRC Genius MB 1200 LPG Reducer (Outlet 12mm)
BRC Genius MB 1200 LPG Reducer used in the BRC Sequential LPG systems from MY 2007
The reducer is delivered without the shut-off Gas valve.
BRC: Sequent (32 OBD) (Direct) (Plug&Drive), Alba (32 / Plus)
Working Pressure: 1.2 Bar (1200mbar) overpressure - Adjustable
LPG Reducer BRC Genius MB 1200 for Engines until 120 kW / 163HP
Properties
- Diaphragm single-stage type building
- Water Temperature Sensor (Included)
- Adjusted pressure: 1.200 mbar relative to the intake manifold pressure
Applied in the following LPG systems:
BRC Kit Rally
BRC Sequent Direct Injection 2.0
BRC Alba 32
BRC Sequent 32
BRC Alba Plus
BRC Sequent P&D MY10
BRC Sequent P&D Plus
251013910
Data sheet
- LPG Shut-off Valve:
- Exclusief gasafsluiter
- Right of Withdrawal
- The right of return expires when the transparent packaging is opened.
- Downloads:
- Manuals and Documentation - See the tab Attachments on this page.
- Related Products:
- See bottom of this page
- Shipping Cost:
- Is calculated in the Checkout and is visible there. (Depends on total weight, destination and discounts.)
