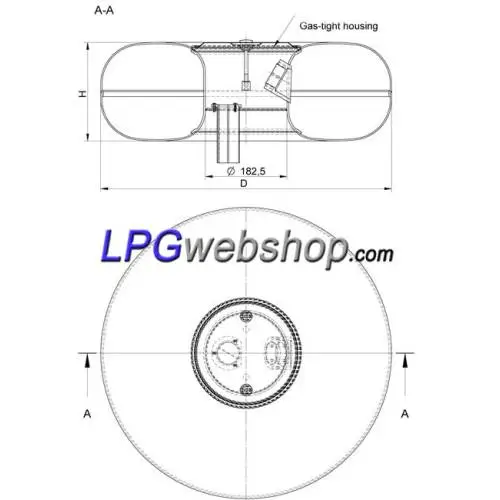

LPG Toroidal Tank 42L (Ø600x200) STEP 1-Hole 30° Int. Multivalve included

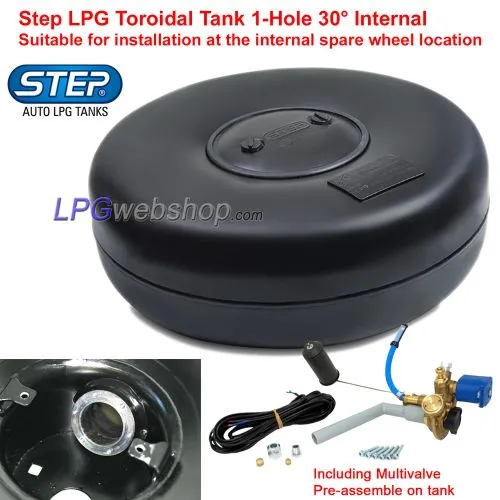

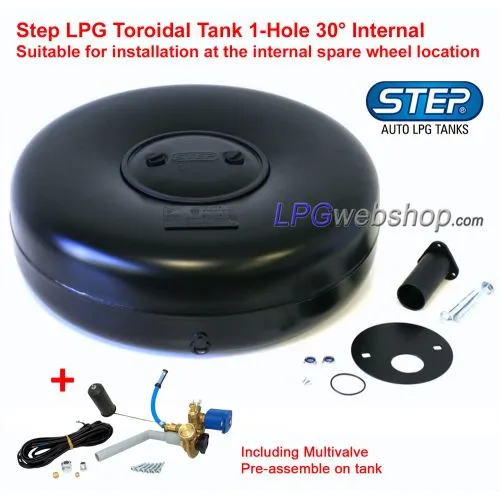

This product contains the following parts:
- LPG tank
- Tank certificate (save it well)
- Gas-tight lid
- Mounting bolts + locking plate
- Venting tube
- Associated MultiValve (6mm/8mm gas extraction line (output))

Tank valves: Includes a corresponding MultiValve

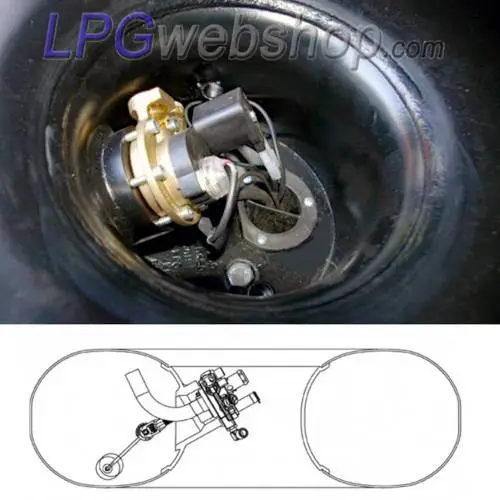

Position of the MultiValve (Appendages): Centrally placed at 30 degrees.
Gas extraction connection (Output) with internal M12x1 thread: Included 2x gland: suitable for 8mm or 6mm LPG pipe.

Tank sensor optional:
This product is supplied without a tank sensor as standard. If you replace your toroidal tank with a new one, you can, for example, transfer the tank sensor from your old tank. Otherwise you can optionally order a tank sensor at an additional cost.
A tank sensor fits on the outside of the MultiValve and rotates using the magnetic field of the tank float and thus varies an electric. resistance value. The correct resistance profile of the tank sensor depends on the type of LED indicator and the gas system in your car. We are unfamiliar with your car, which is why we do NOT supply a tank sensor as standard. When replacing, you can in principle simply transfer your current tank sensor from your old tank to the new tank. We optionally supply a 0-90 Ohm sensor (most common type). The tank does not need to be opened to install or transfer the tank sensor. This is located on the outside on top and is secured by two small screws.

Tank certificate: A tank certificate is supplied with every new LPG tank. This is usually taped to the box or to the tank itself. This contains important information about, among other things, the approval, production date and the serial number. This document is unique and very difficult to obtain again. So keep it very well! You may need it when your car is inspected. Alternatively, download the 67R-01 approval document for this type of tank at the attachment-tab on this page.

No LPG Pump: This type of LPG Tank does NOT have an LPG Pump and is NOT suitable for Vialle LPi.

Installation: Have this Product installed by a recognized specialist! Follow the national guidelines such as proper installation, etc. (See attachments on this page)

Correct tank size: First check very carefully which type of LPG tank and what dimensions you need and what fits in your car. Exchanging an LPG tank is very difficult as transport is by pallet and is expensive. (Collection in Eindhoven is also possible). Any return costs are at your own expense.

Tank assemblies: After you have ordered this product, we will append the LPG tank for you, i.e. install the tank valves as this is an expertise job.

Pick up service: Alternatively, it is also possible to collect this product in Eindhoven (Ekkersrijt). In this case there are of course no additional transport costs. When collecting, it is necessary that you have first placed the order and made the online payment with us. Only then will the tank be prepared for you and you will receive a message from us when and where exactly you can pick up the LPG tank.
