LPG Filling Hose Length 0,5m - 3,0m Connections: Straight - Straight 1/2" UNF
€35.08 -20%
€28.06 tax incl.
T-Piece 3x 1/2"UNF 2x Outer Thread 1x Flare Nut in Centre Position for LPG Filling Hose
T-Piece 3x 1/2"UNF 2x Outer Thread 1x Flare Nut in Centre Position for LPG Filling Hose
Inner diameter: Ø10mm
Spanner size: 22mm
Coupling & Thread: 1/2UNF - 3/4-16 SAE 45°Flare Male (19mm)
Output Connection: 1/2"UNF - 3/4"-16 SAE 45°Flare NUT Female (19mm)
Input Connector: 1/2UNF - 3/4-16 SAE 45°Flare Male (19mm)
Pressure class: Up to 30 bar
Material: Steel
T-Piece with 3x 1/2" UNF Coupling: 2x Male thread + 1x Flare Nut with female thread On Middle Leg.
451502000
Inner diameter: Ø10mm
Spanner size: 22mm
Coupling & Thread: 1/2UNF - 3/4-16 SAE 45°Flare Male (19mm)
Output Connection: 1/2"UNF - 3/4"-16 SAE 45°Flare NUT Female (19mm)
Input Connector: 1/2UNF - 3/4-16 SAE 45°Flare Male (19mm)
Pressure class: Up to 30 bar
Material: Steel
T-Piece with 3x 1/2" UNF Coupling: 2x Male thread + 1x Flare Nut with female thread On Middle Leg.
€20.56 tax incl.
€24.19
Save 15%Foreign companies with a valid VAT number shop VAT-free here! READ HOW.
Safe & TrustedWebshop Trustmark Certified Member & Secured by SSL.
TÜV ISO 9001Certified by TÜV Nord Netherlands
Delivery policySafe and Secure Shipping with DPD or DHL
Refund policy14-Day Reflection Period & Return Policy

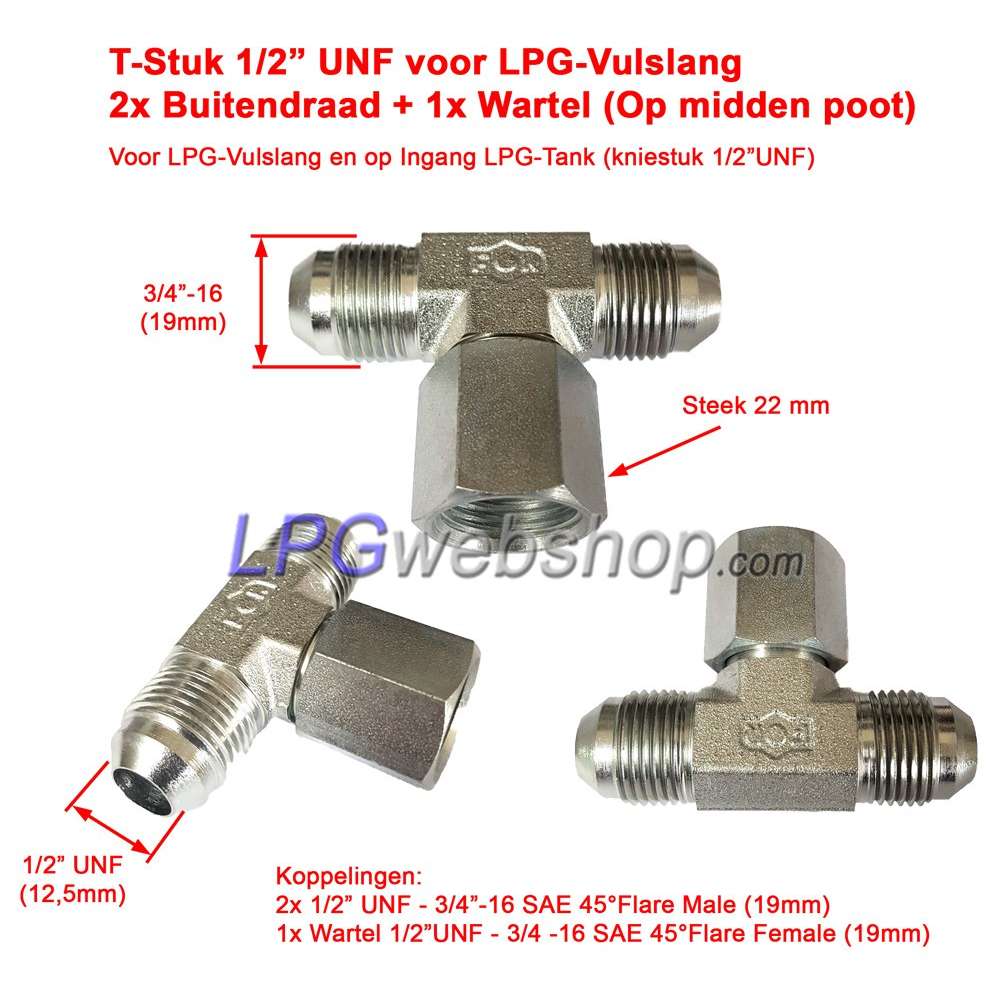

T-Piece 3x 1/2"UNF 2x Outer Thread 1x Flare Nut in Centre Position for LPG Filling Hose
Intended to fill two tanks at the same time.
You can connect this type of T-piece with the Flare Nut to a tank with an 80% filler and knee connection. You can then connect two more filling hoses; 1 incoming (coming from the filling connection) and one outgoing for a filling hose to a second tank.
Type: T-Piece with 3x 1/2" UNF Coupling: 2 x Male thread + 1x Flare Nut with female thread On Middle Leg. See image for further illustration.
Can be used to fill 2x LPG tanks / Gas bottles at the same time.
Can be combined with:
- LPG filling hose / LPG filling line with 1/2" UNF couplings
- LPG tanks (4-hole) and Gas bottles with elbow and 1/2 "UNF connection
- External filling connections with a 1/2"UNF connection at the rear
451502000
Data sheet
- Right of Withdrawal
- The right of return expires when the transparent packaging is opened.
When connecting (Electric, Gas or coolant) to this product, the right of withdrawal expires. - Related Products:
