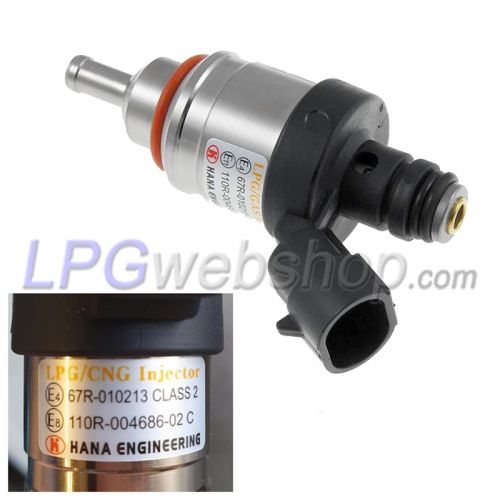

HANA injector (LPG/CNG) H2001 Type A GOLD Rail Mounting
HANA injector (LPG/CNG) H2001 Type A GOLD Rail Mounting
Brand: HANA Engineering Korea
Type number: H2001 Type A Gold
Injector Approval: E4 67R-010213 - E8 110R-00486-02 C
Injector size: Standard: 73cc Yellow, Optional with reducing nozzles for smaller injector sizes
Power: Standard: 33-50 hp / 24-37 kW per cylinder. Use a smaller optional nozzle for lower power outputs.
Gas systems: Universal / Prins VSI
Note: The largest injector size is the default. Use a smaller optional nozzle for lower power outputs.
663001500
Brand: HANA Engineering Korea
Type number: H2001 Type A Gold
Injector Approval: E4 67R-010213 - E8 110R-00486-02 C
Injector size: Standard: 73cc Yellow, Optional with reducing nozzles for smaller injector sizes
Power: Standard: 33-50 hp / 24-37 kW per cylinder. Use a smaller optional nozzle for lower power outputs.
Gas systems: Universal / Prins VSI
Note: The largest injector size is the default. Use a smaller optional nozzle for lower power outputs.
€46.66 tax incl.
€58.32
Save 20%Foreign companies with a valid VAT number shop VAT-free here! READ HOW.
Optional products
Shipping& DeliveryDiscount on Shipping from €150,- and extra discount from €250,-
Safe & TrustedWebshop Trustmark Certified Member & Secured by SSL.
TÜV ISO 9001Certified by TÜV Nord Netherlands
Refund policy14-Day Reflection Period & Return Policy
HANA injector (LPG/CNG) H2001 Type A GOLD Rail Mounting
This gas injector is suitable for both LPG and CNG and is used on a rail of 3 or 4 injectors. Standard (without nozzles), this injector corresponds to the Keihin yellow 73cc.
Brand: HANA Engineering Korea
Type number: H2001 Type A Gold
Injector Approval: E4 67R-010213 - E8 110R-00486-02 C
Injector size: Standard: 73cc Yellow, Optional with reducing nozzles for smaller injector sizes
Power: Standard: 33-50 hp / 24-37 kW per cylinder. Use a smaller optional nozzle for lower power outputs.
Gas systems: Universal / Prins VSI
Note: The largest injector size is the default. Use a smaller optional nozzle for lower power outputs.
Information for replacing Keihin injectors with HANA injectors.
Keihin Blue: Hana Gold + Nozzle Type C
Keihin Orange: Hana Gold + Nozzle Type B
Keihin Yellow: Hana Gold (without extra nozzle)
Don't forget to order:
- 2-pin AMP connector (the connector on the Keihin injectors is different). You need one per injector.
- the rail on which you mount the Hana injectors, available in 2 cylinder, 3 cylinder or 4 cylinder.
HANA table
| HANA H2001 | Old type HANA injector | Nozzle | Coil resistance | Power HP/Cylinder (±15%) |
| @ 0.8 bar/1 bar/1.2 bar | ||||
| Type A+ (BLUE) | Type A+ (BLUE) | – | 1.3 Ohm | 40/50/60 HP |
| Type A (GOLD) | Type A (GREEN) | – | 1.9 Ohm | 33 / 42 / 50 HP |
| Type B(RED) | 2.4mm One line | | 1.9 Ohm | 26 / 32 / 39 HP | |
| Type C(BLACK) | 2.1mm Two lines || | 1.9 Ohm | 20/25/30 HP | |
| Type D(VIOLET) | 1.9mm Three lines ||| | 1.9 Ohm | 15/19/24 HP |
663001500
