LPG Toroidal Tank 64L (Ø600x270) - GZWM 4-Hole incl. Fittings

352621000
Type: GZWM ZTP600/270P - 4-Hole incl. Tank Fittings
Approval: E20 67R-01 0700
Tank capacity: Gross 64 Litre (80%=51,2 Litre)

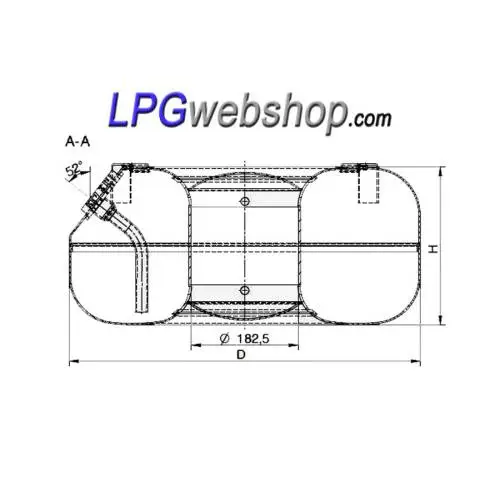

Dimensions: Ø600mm x Height: 270mm
Gross Weight Empty: 37.5  kg.
Pressure class: 67R-01 Class 1 (max. 30 bar)
Mounting: 5 x Fixation Points on top
Tank position: Horizontally

Choose: With or Without Gas Tight Housing

€362.62
€453.27
Save 20%
- Delivery: 1-4 days
Quantity
IN STOCK
  Safe Webshop

Webshop Trustmark & Secured by SSL. Your data and orders are safe here.

  Delivery policy

Safe and Secure Shipping with DPD or DHL

  Refund policy

Política de reembolso de 14 días y derecho de devolución

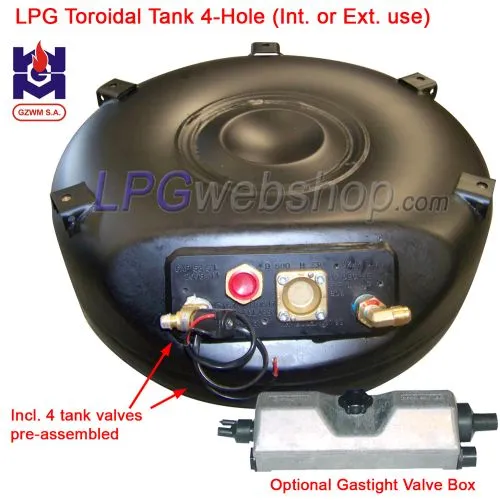

LPG Toroidal Tank 64 Litre (Ø600x270) - GZWM 4-Hole incl. Fittings (Gas Tight Housing optional)

This type of LPG tank releases liquid LPG which is used as car fuel. Suitable for built-in and substructure installation and for most LPG systems: Landi Renzo, Vogels VGI, Eurogas, Prins VSI, BRC, Romano, Tartarini, AEB, etc.
NB! This type of LPG Tank has NO LPG Pump and is NOT suitable for Vialle LPi.

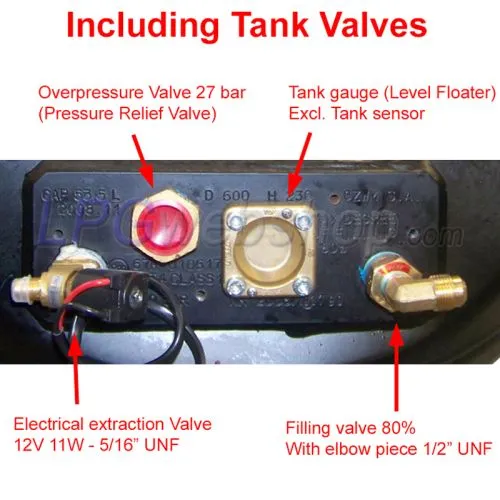

This LPG tank is equipped with 4 fittings; an 80% filling stop with non-return valve, an overpressure valve (blow-off valve), an electrical extraction valve and a level float meter. An optional gas tight housing (Tank box) encloses these fittings and can collect possible leaking gases.
A filling hose can be connected to the 80% filling valve with elbow, which is connected to a filling connection on the vehicle. The gas from the LPG tank is liquid must be evaporated and the pressure must be regulated by means of a evaporator.

Before ordering first check very carefully which type of LPG tank and which dimensions you need and what fits in your application. Exchanging an LPG tank is sometimes difficult, since the transport of heavy tanks is per pallet and is expensive. (Pick up may also be possible.)

Please study the information below well!

352621000

Data sheet

Attention!
It is mandatory to have this product installed by an expert. Our company disclaims all liability in the event of an accident.
Note:

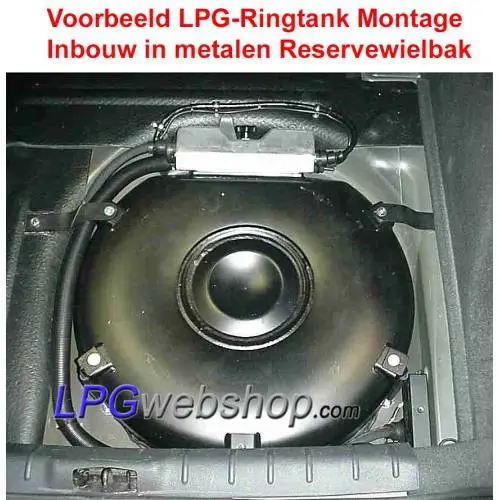

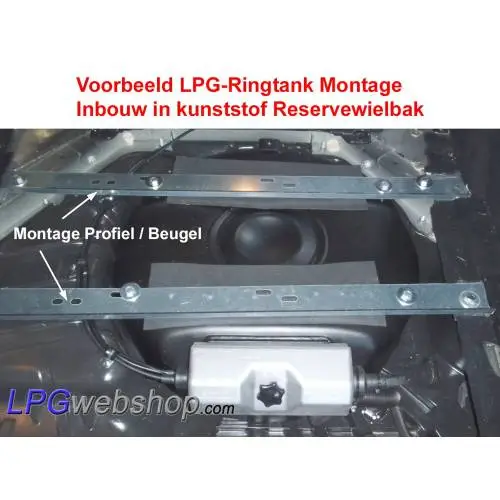

Gas Tight Housing is necessary when tank is fitted inside the vehicle. It's not required when tank is fitted outside in the open air.
Recommendation:

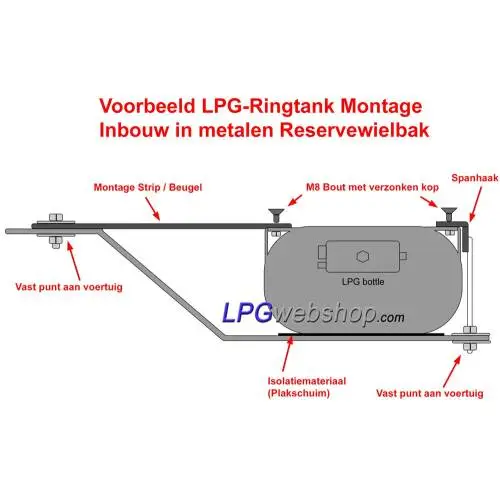

If the tank is fitted underneath the car, apply an undercoating to protect the tank and have a longer lifespan.
LPG Pump:
Suitable for most LPG-systems: Landi Renzo, Vogels VGI, Eurogas, Prins VSI, BRC, Romano, Tartarini, AEB, Etc. -This type of LPG Tank has NO LPG Pump. Not suitable for Vialle.
Right of Withdrawal
When connecting (Electric, Gas or coolant) to this product, the right of withdrawal expires.
Downloads:
Manuals and Documentation - See the tab Attachments on this page.
Related Products:
See bottom of this page
Shipping Cost:
Is calculated in the Checkout and is visible there. (Depends on total weight, destination and discounts.)
Application:
Suitable for in and under the car
Tank Capacity:
61 - 70L
Diameter Toroidal Tank:
600mm
Height Toroidal Tank:
270mm

Download

LPG Tank Install. Instructions

LPG Tank Installation Instructions

Download (2.59MB)

GZWM Tor Tank 4-Hole ZTPP-270

Approval GZWM Toroidal LPG Tank 4-Hole ZTPP-270 - E20 67R 01 0700

Download (1.68MB)

GZWM Gas Tight Housing OP-280

Approval GZWM Gas Tight Housing OP-280 - E20-67R-01-0711

Download (743.51KB)
