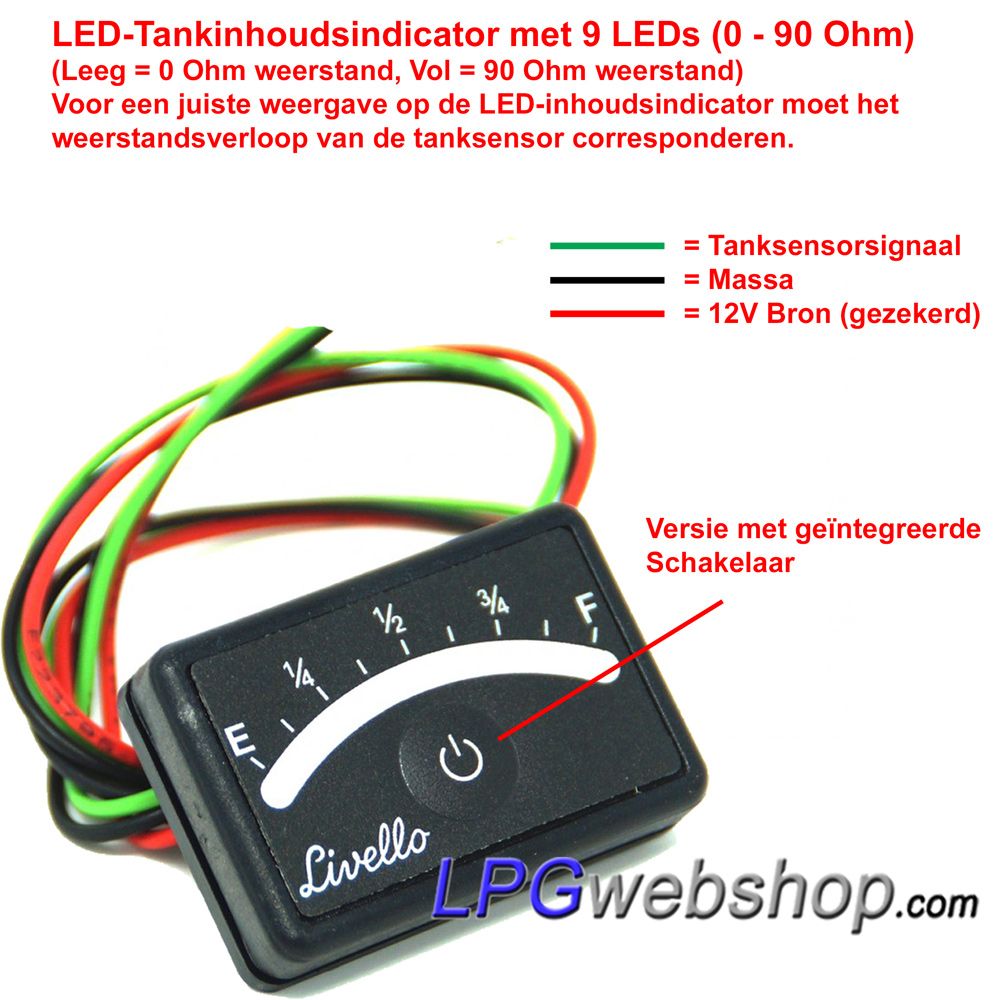

LPG LED indicator 9 LEDs Livello Content indicator with Switch incl. Tank Sensor 4-Hole
LPG LED indicator 9 LEDs Livello Content indicator with Switch incl. Tank Sensor 4-Hole
Brand: Livello
Type number: L.9 LED
Dimensions:
LED Content Indicator: Width 45mm, Height 30mm, Depth 10mm
Tank sensor: Ø38 mm, Height 16 mm
For LPG Tank content indication

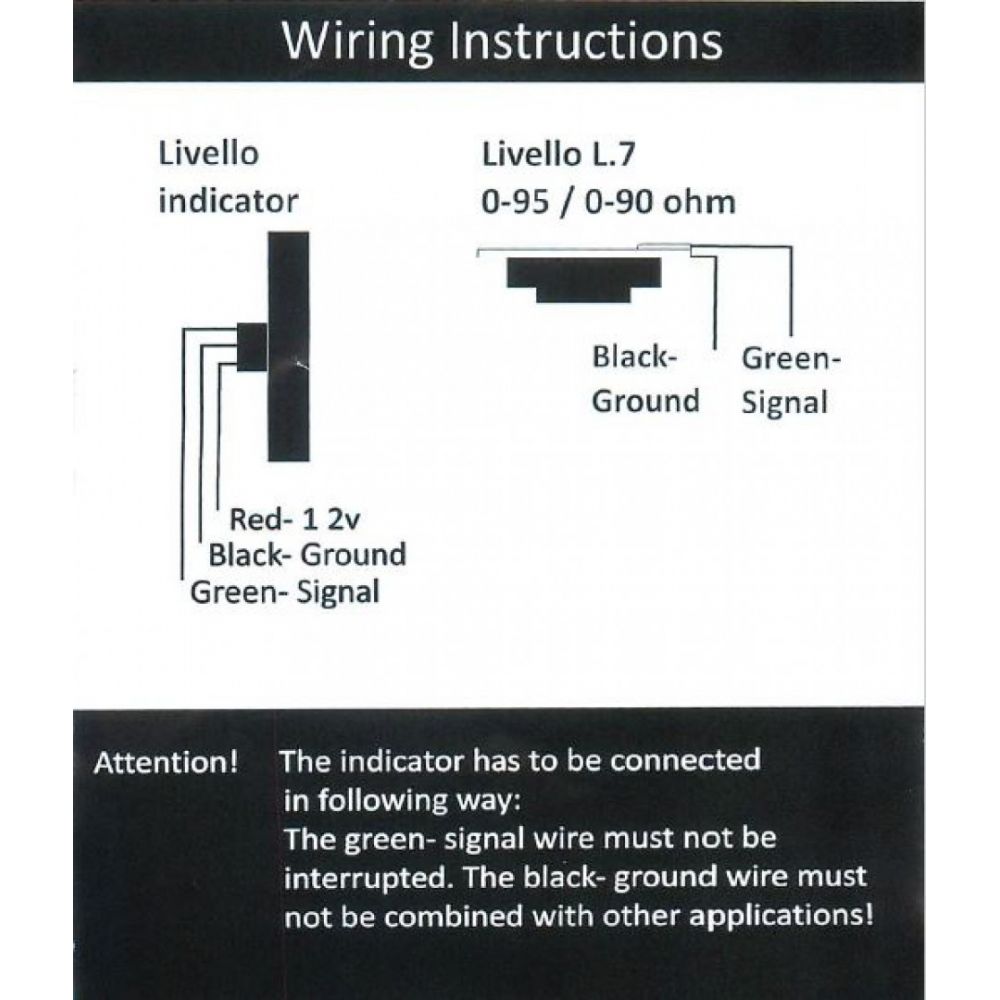

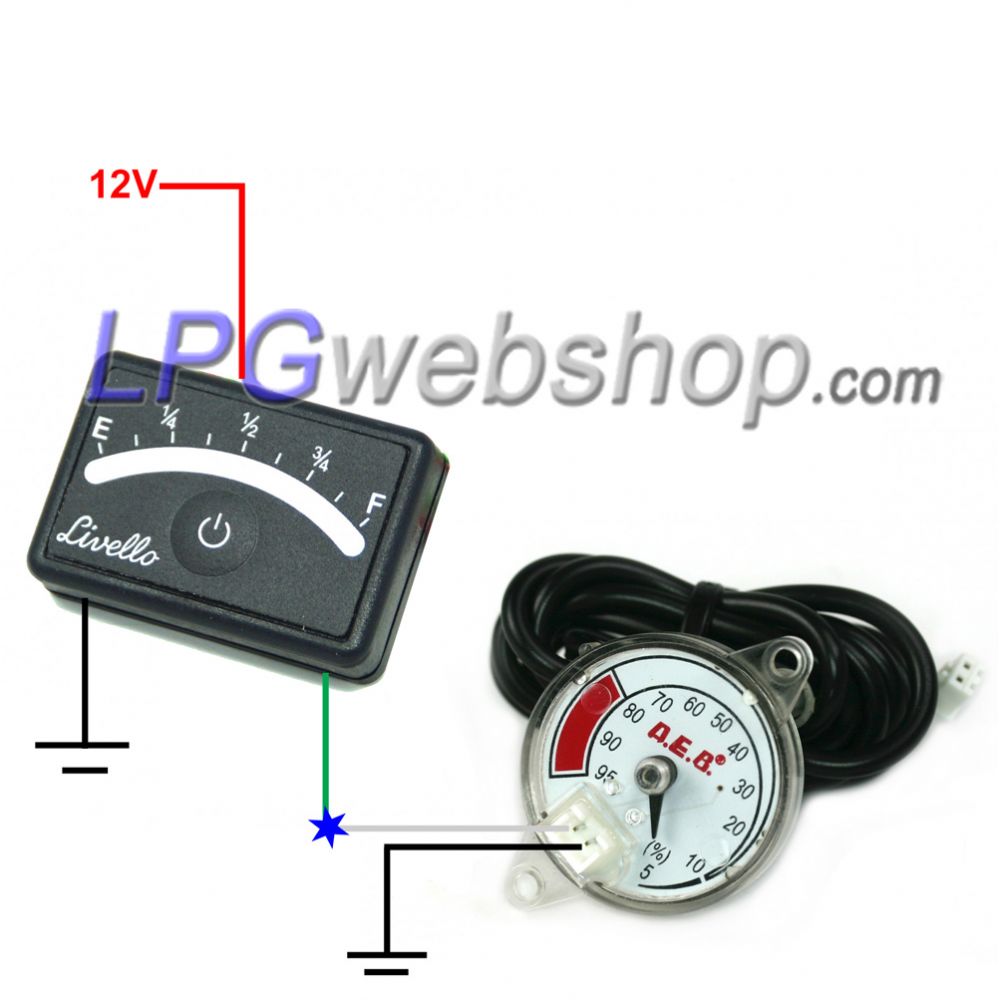

9-LED content indicator in combination with tank sensor 0 - 90 Ohm for 4-hole LPG Tank (Ring Tank / Cyl. Tank / Vapor Tank)
This product allows you to check the tank contents from the cockpit or anywhere in your vehicle.
The version with the 12V output (yellow wire) can operate an electric gas valve with the intervention of an external relay.
Choose the version with or without 12V output (yellow wire).
6017005XX-601002770
Brand: Livello
Type number: L.9 LED
Dimensions:
LED Content Indicator: Width 45mm, Height 30mm, Depth 10mm
Tank sensor: Ø38 mm, Height 16 mm
For LPG Tank content indication
9-LED content indicator in combination with tank sensor 0 - 90 Ohm for 4-hole LPG Tank (Ring Tank / Cyl. Tank / Vapor Tank)
This product allows you to check the tank contents from the cockpit or anywhere in your vehicle.
The version with the 12V output (yellow wire) can operate an electric gas valve with the intervention of an external relay.
Choose the version with or without 12V output (yellow wire).
€79.26 tax incl.
Foreign companies with a valid VAT number shop VAT-free here! READ HOW.
Optional products
Safe & TrustedWebshop Trustmark Certified Member & Secured by SSL.
TÜV ISO 9001Certified by TÜV Nord Netherlands
Delivery policySafe and Secure Shipping with DPD or DHL
Refund policy14-Day Reflection Period & Return Policy
LPG LED indicator 9 LEDs Livello Content indicator with integrated Switch incl. Tank Sensor 4-Hole
LPG LED level indication

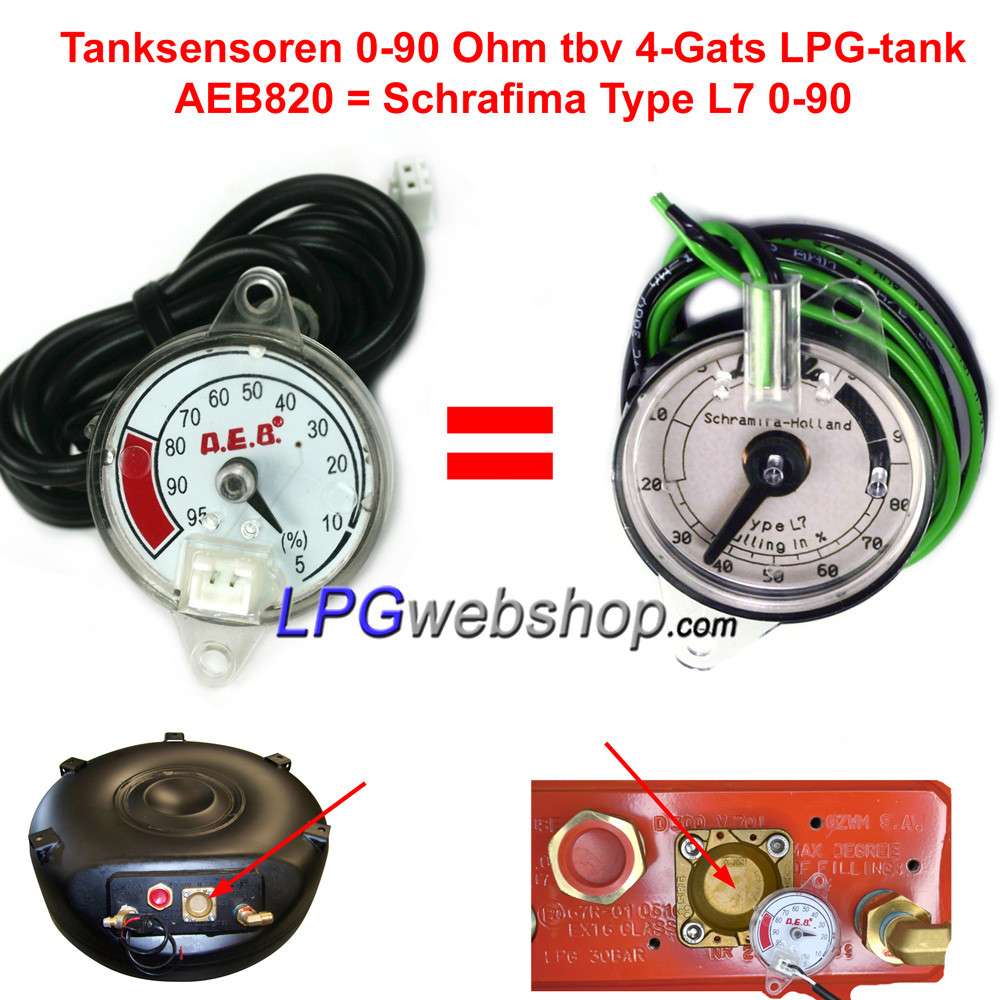

Including Tank Sensor: 0 - 90 Ohm (4-hole LPG Tank (Ring Tank / Cyl. Tank / Vapor Tank) (AEB820 / Schrafima Type L7)
Empty = 0 Ohm / Full = 90 Ohm
This product allows you to check the tank contents from the cockpit or anywhere in your vehicle.
The version with the 12V output (yellow wire) can operate an electric gas valve with the intervention of an external relay.
Choose the version with or without 12V output (yellow wire).
6017005XX-601002770
