Injector Keihin KN8 Blue 52cc - Prins VSI LPG/CNG

-10%

Category: Keihin KN8 Injectors

Reference: 100333

Brand: Keihin

Type number: KN8 52cc Blue

Approval Rail: E4 67R-010093 - E4 110R-000021

Approval Injector: E4 67R-010092 - E4 110R-000020

Injector size: 52cc Blue

Power: 17 - 27 HP / 13 - 20 kW per Cylinder.

For gas systems: Prins Autogas VSI, Eurogas Omegas

Gas systems: Prins VSI 2.0

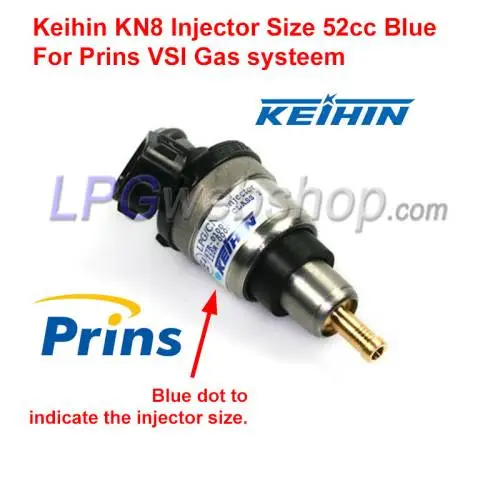

Note: The injector size is indicated by the colored dot on the sticker

NB! The approval number is valid for all sizes, so this number does NOT indicate the injector size!

€130.50 tax incl.

€145.00

Save 10%

Foreign companies with a valid VAT number shop VAT-free here! READ HOW.

- Delivery: 1-4 days

Safe & Trusted

Webshop Trustmark Certified Member & Secured by SSL. Your data and orders are safe here.

Delivery policy

Safe and Secure Shipping with DPD or DHL

Refund policy

Política de reembolso de 14 días y derecho de devolución

Description
Product Details

Keihin Type KN8 Blue 52cc - for Prins VSI - LPG / CNG - Eurogas Omegas

Injectors:
- OEM quality injectors
- Lifespan of at least 290,000,000 cycles or 240,000 km.
- Excellent linear flow rate (LFR = linear character from minimum to maximum yield). Linear from 2.5 ms.
- Low resistance 1.25 Ω
- 5 sizes of injectors for engine power from 9kW to 45kW per cylinder. (e.g. 3 cyl. with 27kW to 10 cyl. 450kW.)

injector rail:
- R67-01 & R110 homologated
- PA6 glass fiber reinforced nylon
- Lightweight and compact design
- Easy installation and quick assembly
- Assembled and tested for leaks
- 2, 3, 4, or 5 cylinder configurations

KEIHIN LPG CNG Injector Table
Colour	Flow Rate (cc/stroke)	HP per Cylinder	kW per Cylinder
Green	32 cc
White	42 cc	15 - 20 HP	9 - 15 kW
Blue	52 cc	17 - 27 HP	13 - 20 kW
Orange	63 cc	24 - 36 HP	18 - 27 kW
Yellow	73 cc	34 - 47 HP	25 - 35 kW
Brown	100 cc	42 - 60 HP	31 - 45 kW

Important information regarding Gas Injectors

ATTENTION! Replace all injectors and use the correct injector size!

ATTENTION!

If you DO NOT replace ALL the injectors, there are many possibilities of differences between your new and old (contaminated) injectors, so the engine will still work badly and it may even seem that the new injectors do not work properly. All injectors are controlled with more or less the same injection time. The old injectors will dose more gas than the new injectors, because they are still accurate. Because the average mix is still too rich, the engine management will shorten the injection time, so that the new injectors will deliver even less. This will be particularly noticeable with a low engine load (idle) and much less noticeable with a higher engine load (not a high speed, but with the accelerator pedal well depressed).

Therefore it's important to replace all the injectors at the same time.

NB! USE THE SAME INJECTOR SIZE AS NOW USED ON YOUR CAR TO AVOID ADJUSTMENTS (SOFTWARE).

Replace the gas phase filter in time to prevent contamination of the gas injectors!

Replace the gas phase filter in time and regularly!

The filter lasts a maximum of 20,000 km. Preferably replace the filter earlier.
This replacement period applies with an average engine capacity of approximately 1.8L. Larger engines use more gas, which means the gas filter needs to be replaced sooner.
It is also possible that the LPG contains a lot of contamination (with oil and fats) at some refueling, which means that it is necessary to replace the filter earlier. Take this into account.
The timely replacement of the gas filter is necessary to prevent contamination of the gas system and gas injectors.

TIP!

Use 2 filters one after the other (in series) instead of just 1 filter. This allows you to prevent the contamination of the injectors even more when driving on a polluted LPG quality, for example. In this way there is a second filter that can still catch the excess paraffin.

Background information regarding gas injector problems

In most cases the problem is caused by the fact that the gas injectors are contaminated with paraffin (oils and greases from the LPG). The filter upstream of the injectors must ensure that the injectors do not contaminate quickly. This gas phase filter will eventually become saturated and must be replaced every 20,000 km. If the filter is not replaced, the paraffin will no longer be trapped and end up in the injectors. It is not the case that the injectors leak or do not open anymore. But the opening and closing time are no longer correct. The injectors remain open longer than they should (with dynamic behavior), which means that too much fuel is being dosed. (too rich mixture) The injectors will then deviate, especially with short injection times (low engine load). The engine is going to run messy and there are too large differences between the injectors. Cleaning the injectors often makes no sense, because there is often too much wear in the injector occurred, as a result of which the guide of the plunger (sealing disk) no longer has the right fit. The plunger does not go smoothly and lord, but goes up and down stumbling and wobbling. If the injectors are replaced without replacing the filter, the new injectors will soon become dirty again. (read symptom control, no long-term solution)
