IMPCO Adapter A1-63 Unidapt: End Piece Extension Arm for Mixer 300A

IMPCO Adapter A1-63 Unidapt: End Piece Extension Arm for Mixer 300A

Use this adapter if you want to place an IMPCO Mixers model 300A next to the carburetor using an "arm". To be used in combination with the other IMPCO Arm parts.

Mounting: On the IMPCO Adapter (A1-57) (Hood / Kap) with possibly the oblique extension  A1-59 or the straight extension A1-60
Position: Next to the carburetor using adapter (A1-57) (Hood / Kap)

Specifications and Connections:
- 4x mounting point (M6) for Arm
- 3x mounting point (M6) for 300A Mixer

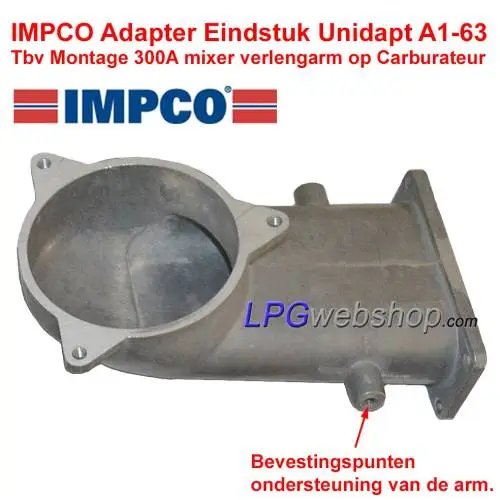

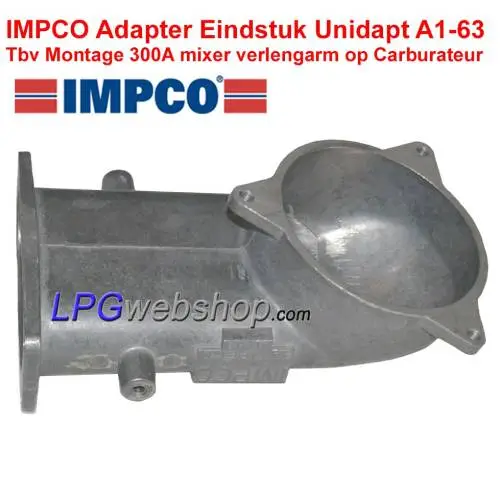

End Piece Extension Arm for Mixer 300A:
This part is used as the end piece of the extension arm on the carburettor to allow the IMPCO Mixers model 300A to be mounted next to the carburettor.

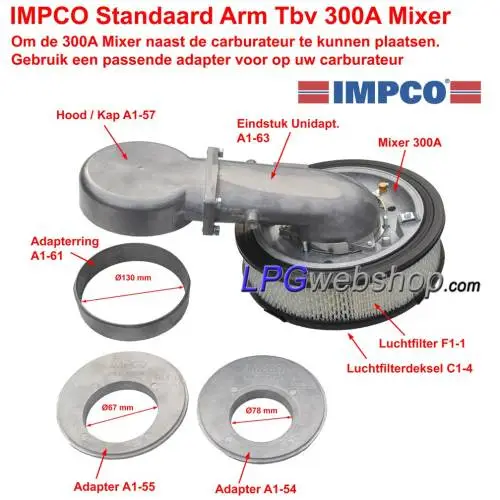

This part is combined with:
- Hood on Carburettor: (A1-57) Adapter Unidapt
- Arm extension pieces: A1-59 (Angle) en  A1-60 (Straight)
- IMPCO Gas Mixers model 300A

Application:

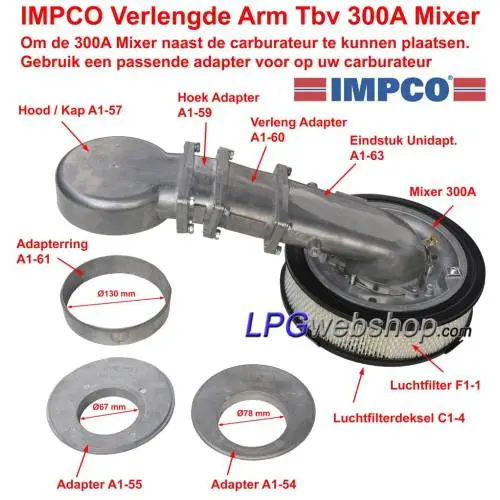

This part is used as an end piece of the extension arm on the carburetor to connect a 300A mixer. Used in combination with the IMPCO (A1-57) (Hood / Kap) which goes on top of the carburetor using a suitable adapter (A1-54 / A1-55 / A1-61)and is used to make an arm on the carburetor to 300A mixer next to it. The adapter  A1-59 is used to angle the arm downwards. To extend the arm, the adapter A1-60  is used. The end piece A1-63 Unidapt is used to mount the 300A mixer. For American classics with the brands; Chevrolet, Ford, Chrysler, Dodge, Cadillac, etc. to run on LPG in combination with an IMPCO 300A mixer.

NB! Place Hood / hood on top of the carburetor of the car. There are different adapters that should be used depending on the type of carburetor, so that the whole fits together well. (A1-54 / A1-55 / A1-61)

Used when making an "Arm" on the carburetor when there is not enough space under the hood to fit the mixer on top of the carburetor. For example, the mixer is positioned next to the carburetor by means of a so-called "arm". These are a number of parts for the carburetor such as a hood (A1-57), a suitable adapter to fit the hat on the carburetor, a number of extensions (with or without an angle) and this end piece (Unidapt A1-63) on which the mixer can be mounted.
