Landi Renzo Injector Rail 4 cyl. GIRS12 ECO EVO - (XXS, XS, S, M, L) + Filter
Landi Renzo Injector Rail 4 cyl. GIRS12 ECO EVO - (XXS, XS, S, M, L) + Filter
for LANDI RENZO OMEGAS 3.0 & 4.0
Please choose the correct injector size when ordering:
| Injector Size | kW / Cylinder |
| XXS Brown (EB2518) | until 15kW |
| XS Yellow (EB2520) | 15-19kW |
| S Green (EB2522) | 19-22kW |
| M Black (EB2565) | 22-29kW |
| L White (EB2527) | Above 29kW |
Approval: E13 67R-01 0323 - E13 110R-000201
Note: the color (size of the injector) is indicated by the color of the plastic cap on the top of the injector. The size is also indicated on the plastic rail by the corresponding letter. (XXS, XS, S, M, L)

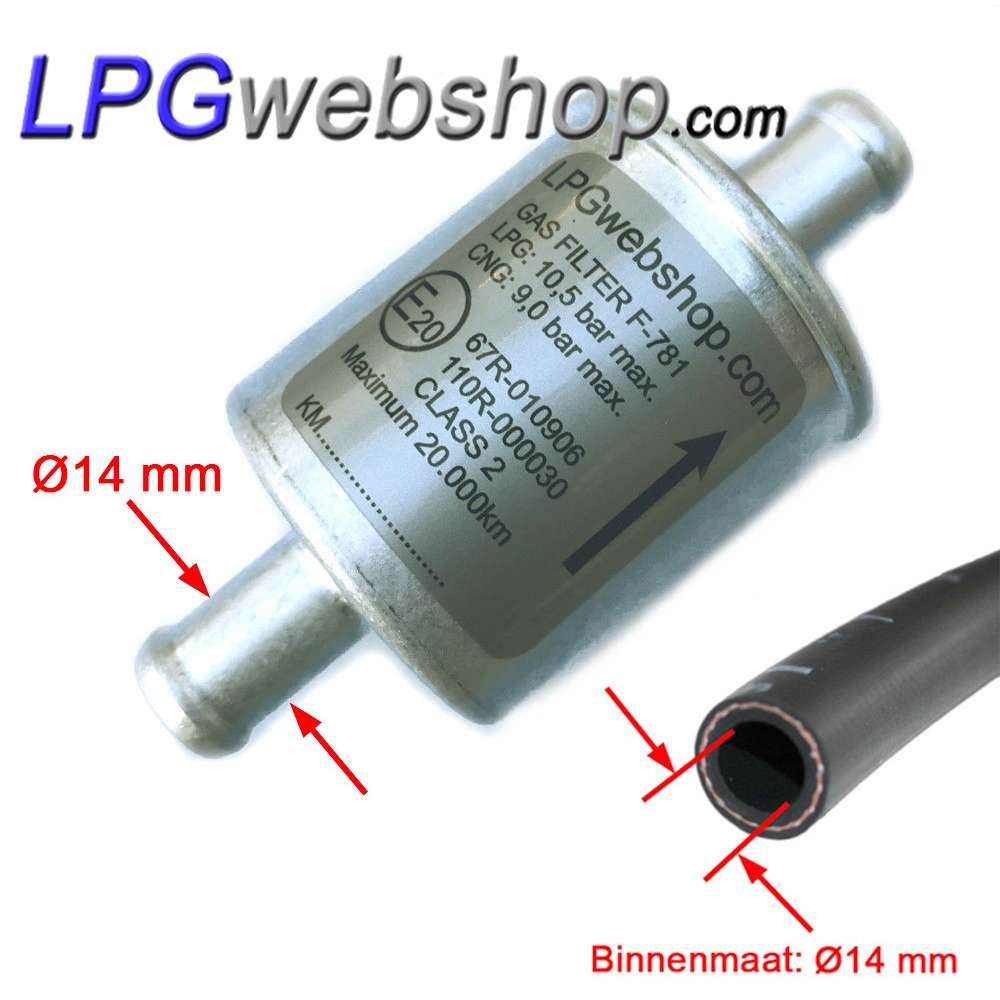

FREE GAS FILTER TYPE F-781 included
E238132000
for LANDI RENZO OMEGAS 3.0 & 4.0
Please choose the correct injector size when ordering:
| Injector Size | kW / Cylinder |
| XXS Brown (EB2518) | until 15kW |
| XS Yellow (EB2520) | 15-19kW |
| S Green (EB2522) | 19-22kW |
| M Black (EB2565) | 22-29kW |
| L White (EB2527) | Above 29kW |
Approval: E13 67R-01 0323 - E13 110R-000201
Note: the color (size of the injector) is indicated by the color of the plastic cap on the top of the injector. The size is also indicated on the plastic rail by the corresponding letter. (XXS, XS, S, M, L)
FREE GAS FILTER TYPE F-781 included
€148.00 tax incl.
€185.00
Save 20%Foreign companies with a valid VAT number shop VAT-free here! READ HOW.
Safe & TrustedWebshop Trustmark Certified Member & Secured by SSL. Your data and orders are safe here.
Delivery policySafe and Secure Shipping with DPD or DHL
Refund policyPolítica de reembolso de 14 días y derecho de devolución

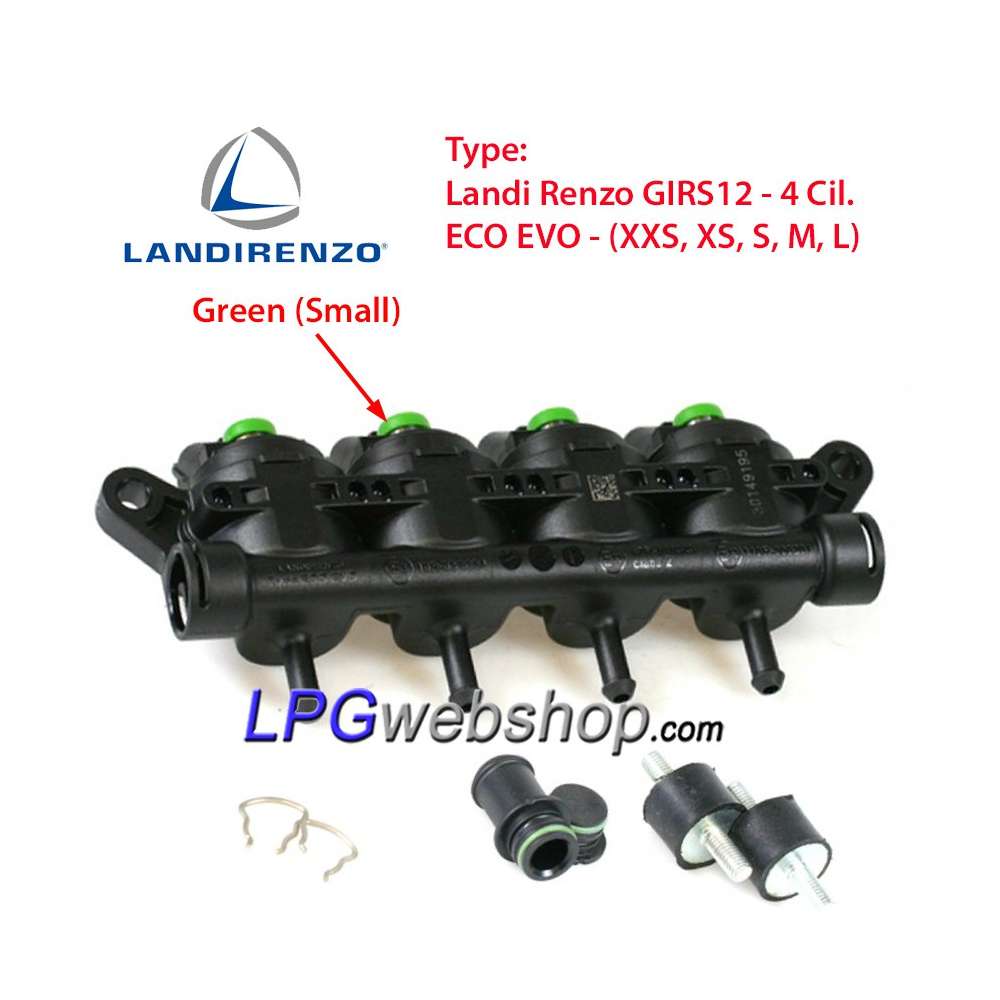

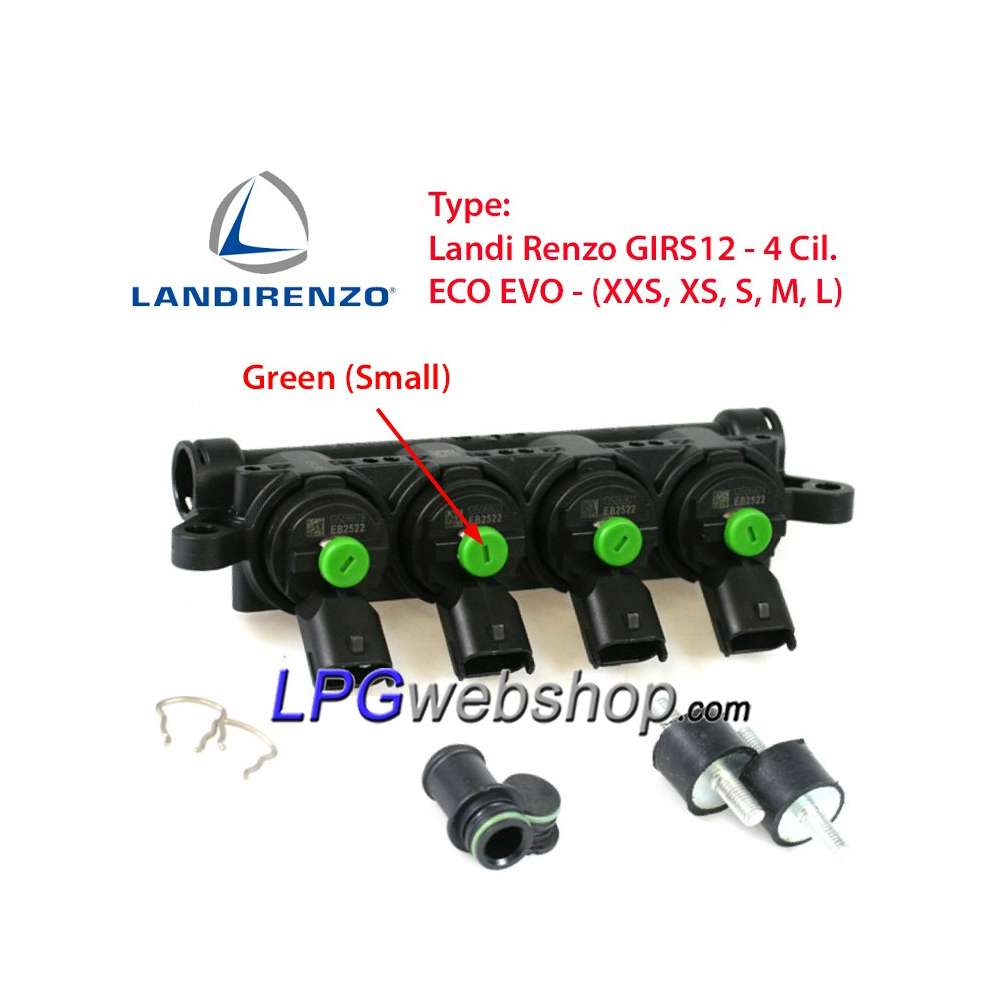

Landi Renzo Injector Rail 4 cyl. GIRS12 ECO EVO - (XXS, XS, S, M, L)
Type: ECO EVO
Applied on LPG systems and cars using: Most recent systems Landi Renzo Omegas 3.0 & 4.0
The GIRS12 rail injector is designed to guarantee high performance and precision in gas delivery.
Due to the smaller dimensions, the injector rails can easily be placed in the engine compartment.
Available in the rail versions: 2 cyl, 3 cyl and 4 cyl.
These injectors are characterized by an extremely low noise level.
Thanks to the IP6K9K connector, it guarantees a very good seal, even under extreme conditions.
Available in 5 sizes (XXS, XS, S, M, L) making it perfect to adapt to the needs of engines with different performance and different displacements.
Important information regarding Gas Injectors
ATTENTION!
If you DO NOT replace ALL the injectors, there are many possibilities of differences between your new and old (contaminated) injectors, so the engine will still work badly and it may even seem that the new injectors do not work properly. All injectors are controlled with more or less the same injection time. The old injectors will dose more gas than the new injectors, because they are still accurate. Because the average mix is still too rich, the engine management will shorten the injection time, so that the new injectors will deliver even less. This will be particularly noticeable with a low engine load (idle) and much less noticeable with a higher engine load (not a high speed, but with the accelerator pedal well depressed).
Therefore it's important to replace all the injectors at the same time.
NB! USE THE SAME INJECTOR SIZE AS NOW USED ON YOUR CAR TO AVOID ADJUSTMENTS (SOFTWARE).
Replace the gas phase filter in time and regularly!
The filter lasts a maximum of 20,000 km. Preferably replace the filter earlier.
This replacement period applies with an average engine capacity of approximately 1.8L. Larger engines use more gas, which means the gas filter needs to be replaced sooner.
It is also possible that the LPG contains a lot of contamination (with oil and fats) at some refueling, which means that it is necessary to replace the filter earlier. Take this into account.
The timely replacement of the gas filter is necessary to prevent contamination of the gas system and gas injectors.
TIP!
Use 2 filters one after the other (in series) instead of just 1 filter. This allows you to prevent the contamination of the injectors even more when driving on a polluted LPG quality, for example. In this way there is a second filter that can still catch the excess paraffin.
In most cases the problem is caused by the fact that the gas injectors are contaminated with paraffin (oils and greases from the LPG). The filter upstream of the injectors must ensure that the injectors do not contaminate quickly. This gas phase filter will eventually become saturated and must be replaced every 20,000 km. If the filter is not replaced, the paraffin will no longer be trapped and end up in the injectors. It is not the case that the injectors leak or do not open anymore. But the opening and closing time are no longer correct. The injectors remain open longer than they should (with dynamic behavior), which means that too much fuel is being dosed. (too rich mixture) The injectors will then deviate, especially with short injection times (low engine load). The engine is going to run messy and there are too large differences between the injectors. Cleaning the injectors often makes no sense, because there is often too much wear in the injector occurred, as a result of which the guide of the plunger (sealing disk) no longer has the right fit. The plunger does not go smoothly and lord, but goes up and down stumbling and wobbling. If the injectors are replaced without replacing the filter, the new injectors will soon become dirty again. (read symptom control, no long-term solution)
E238132000
Data sheet
- Right of Withdrawal
- WARNING! The right of withdrawal does not apply to electronic components. Returns or exchanges are NOT possible.
- Downloads:
- Manuals and Documentation - See the tab Attachments on this page.
- Related Products:
- See bottom of this page
- Shipping Cost:
- Is calculated in the Checkout and is visible there. (Depends on total weight, destination and discounts.)
- Application:
- For Landi Renzo Omegas 3.0 & 4.0
Specific References
- EAN13
- 4250959455147
- MPN
- 238160000
