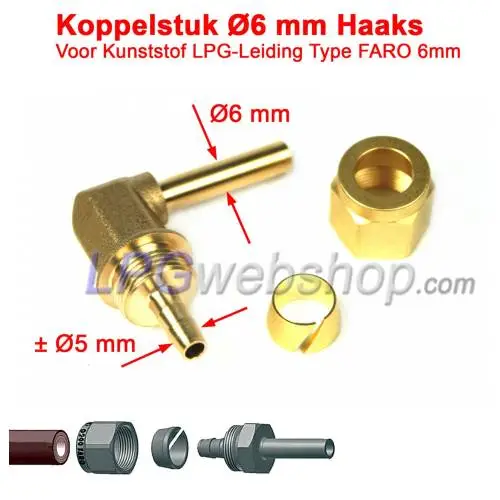

FARO Coupling piece Ø6 mm Angled 90° for Plastic LPG Pipe KF-0001 / Transfer Oil 1841 / Faro 6mm

FARO Coupling piece Ø6mm Angled 90° for Plastic LPG Pipe KF-0001 / Transfer Oil 1841 / Faro 6mm

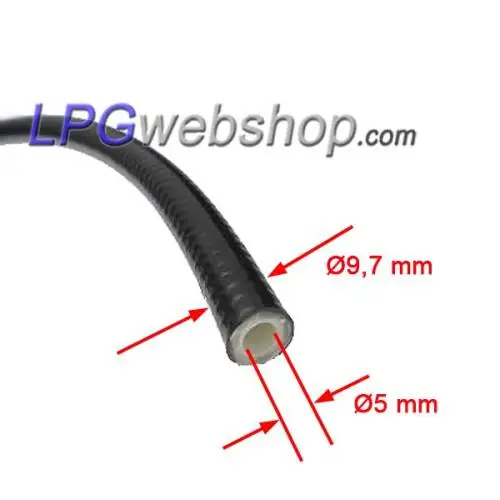

Used in combination with plastic LPG pipe Type Faro 6mm / KF-0001 / Transfer Oil 1841 (= Ø6 mm Copper), a Ø6 mm compression ring (compression barrel) and a swivel Ø6 mm to seal a connection.

Widely used on, for example:
- Input of an LPG gas valve
- Input of an LPG evaporator
- Exit from a Multivale on an LPG Tank

Several variants of this type of connectors are available. Namely also a straight version and larger versions for Ø8 mm couplings.

Use the correct type depending on the following aspects:
- In combination with the correct type of plastic LPG pipe (KF-0001 / Transfer Oil 1841 / Faro 6mm)
- In combination with the correct swivel and compression ring
- Size of the connection of an LPG Evaporator / Gas valve / MultiValve
- Straight / Angled depending on the available space

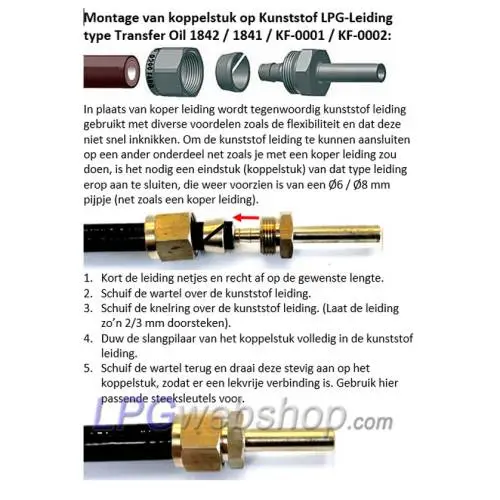

Instead of copper pipe, plastic pipe is nowadays used with various advantages such as flexibility and that it does not kink quickly. To be able to connect the plastic pipe to another part, just as you would with a copper pipe, it is necessary to connect an end piece (coupling piece) of that type of pipe, which in turn is fitted with a Ø6 mm pipe (just like a copper pipe).
