FARO 6mm Coupling Piece Ø6mm Straight for Thermoplastic LPG Pipe (Faro 6mm / KF-0001 / Transfer Oil 1841)

FARO 6mm Coupling Piece Ø6mm Straight for Thermoplastic LPG Pipe (Faro 6mm / KF-0001 / Transfer Oil 1841)

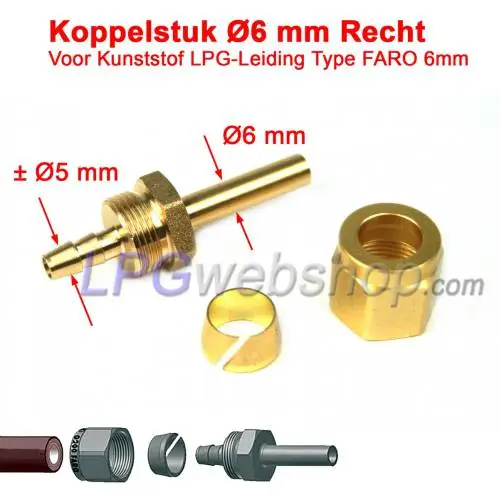

Used in combination with plastic LPG Pipe Type KF-0001 / Transfer Oil 1841 / FARO 6mm (= Ø6mm Copper), a Ø6mm compression ring (compression barrel) and a swivel Ø6mm to seal a connection. These can be added optionally.
To connect to parts with a Ø6mm compression connection (For example, a MultiValve output or gas valve input.

Widely used on, for example:
- Input of an LPG gas valve
- Input of an LPG evaporator
- Exit from a Multivale on an LPG Tank

Several variants of this type of connectors are available. Namely also a right angle version and larger versions for Ø8mm couplings.

Use the correct type depending on the following aspects:

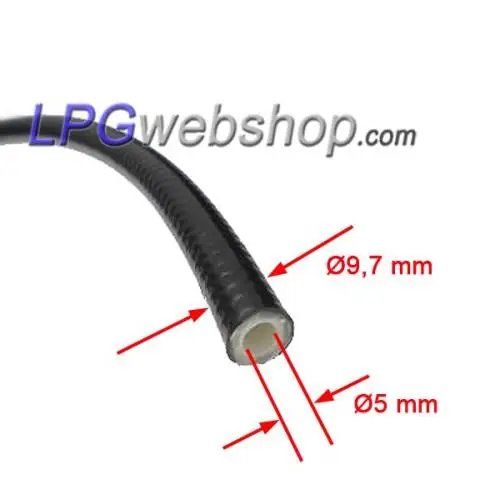

- In combination with the correct type of plastic LPG pipe (KF-0001 / Transfer Oil 1841 / Faro 6mm)
- In combination with the correct swivel and compression ring
- Size of the connection of an LPG Evaporator / Gas valve / MultiValve
- Straight / Angled depending on the available space

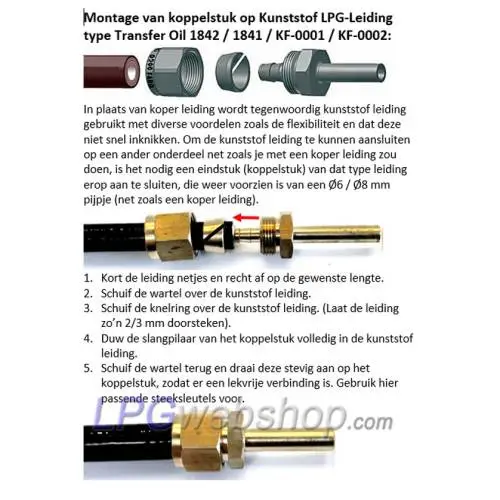

Instead of copper pipe, plastic pipe is nowadays used with various advantages such as flexibility and that it does not kink quickly. To be able to connect the plastic pipe to another part, just as you would with a copper pipe, it is necessary to connect an end piece (coupling piece) of that type of pipe, which in turn is fitted with a Ø6 mm pipe (just like a copper pipe).
