Koppelstuk LPG-FIT Banjo-Bolt M10x1 FBB-03 voor Kunststof Leiding LPG-XD-3 (6mm)

Coupling piece LPG-FIT Banjo-Bolt M10x1 FBB-03 for Plastic Pipe LPG-XD-3 (6mm)

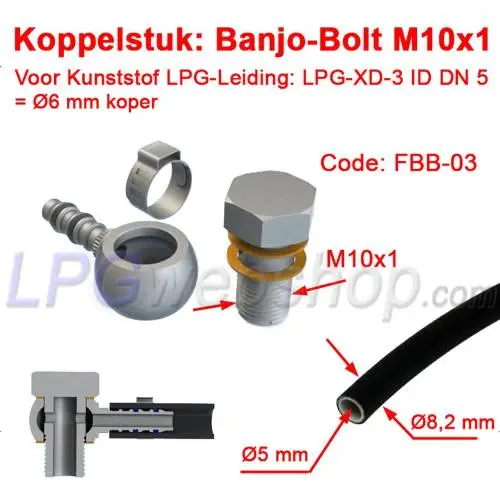

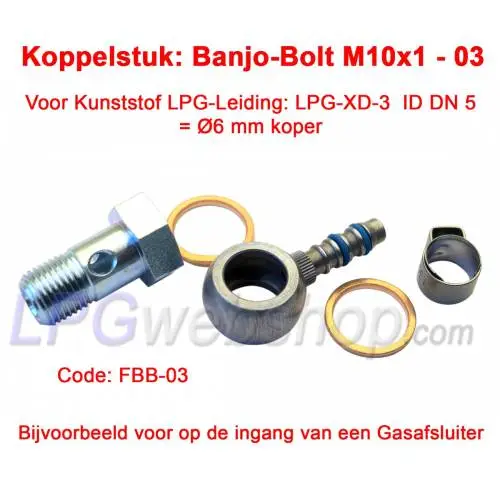

This part is used in combination with plastic LPG pipe LPG-XD-3 DN 5 (= Ø6 mm Copper) and an LPG part with an M10x1 connection under a direct right angle 90° angle. Supplied together with a banjo, union nut M10x1, 2x sealing washer and Oetiker clamp.

This type of coupling has a banjo and a swivel bolt which allows a direct 90° angle connection to the LPG part. Two copper rings provide the seal. The advantage of this type of connector is that it can be reused.

Application: To connect plastic LPG pipe to, for example:
- An LPG gas valve (with M10x1 connections) at a 90° angle.
- An LPG evaporator (with M10x1 entrance) at a 90° angle.
- The exit of a Multivale on an LPG Tank (6mm version) at a 90° angle.

Fittings: A plastic LPG pipe is not connected directly to an LPG part, but coupling pieces are used on the ends of the pipe.

NB! A plastic LPG pipe is not connected directly to an LPG part, but coupling pieces are used on the ends of the pipe. These come in different shapes and sizes. There are also several types of plastic LPG pipe available. There are different diameters, but also brands and types of connectors. Make sure you use the correct one for your application in combination with the correct coupling pieces on the ends of the plastic pipe.

NB! Check the type of connection on the parts to which you want to connect the LPG pipe, such as the tank, gas valves, etc.

An Oetiker clamp (deformable hose clamp) is used to clamp the plastic pipe onto the coupling piece. This is included. Use an Oetiker forceps to squeeze this clamp properly. See also the images for illustration.

Tip! Apply a small amount of penetrating oil to the coupling O-rings before installing them in the plastic pipe. This simplifies the process.
